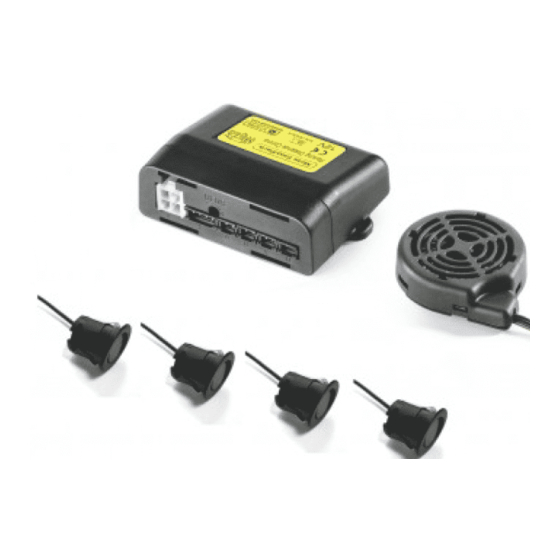

Meta Easypark quick installation manual

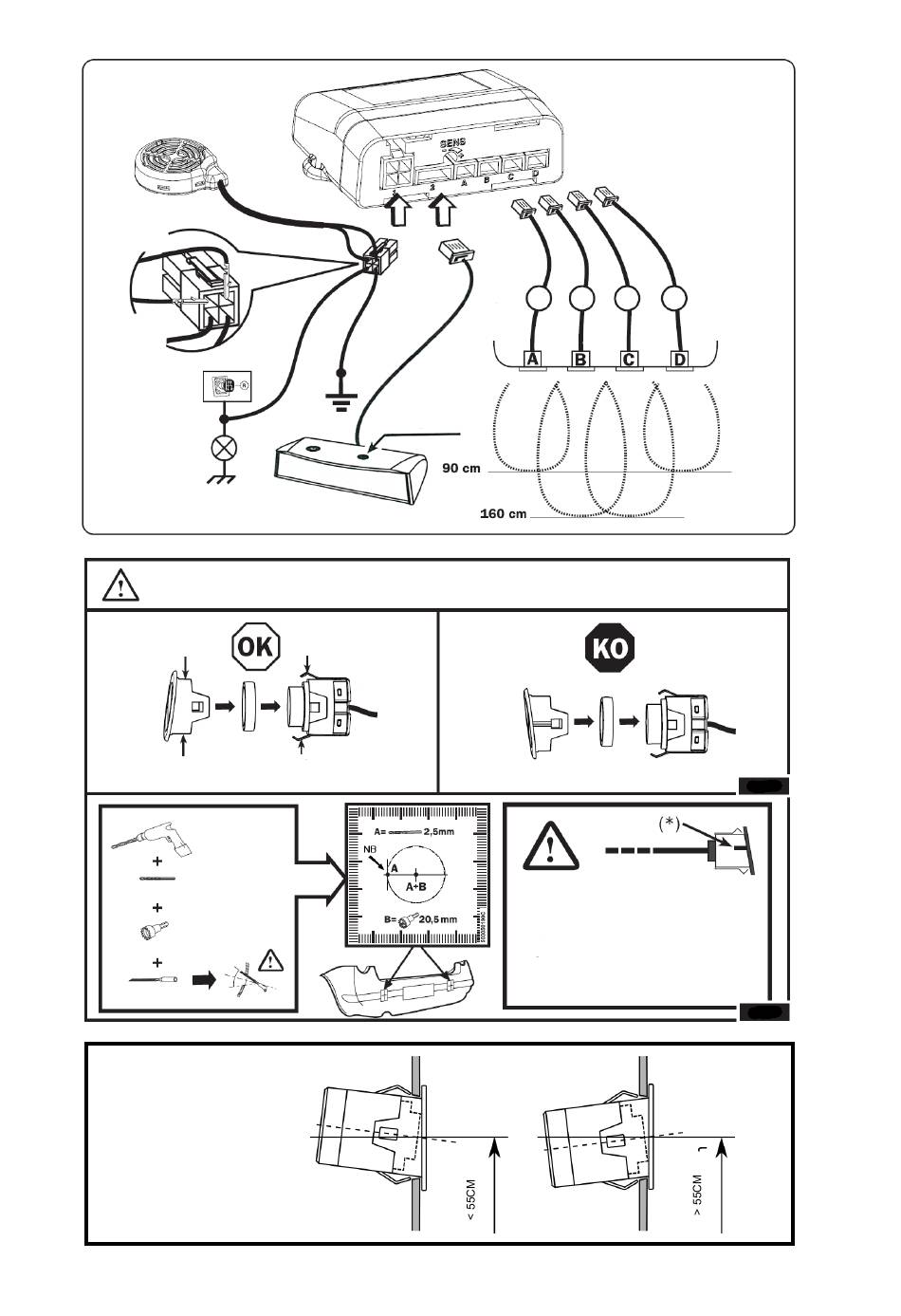

GENERAL WIRING DIAGRAM
Buzzer
BLACK
RED/
BLACK
RED
Display
META EASYPARK ASSEMBLING AND INSTALLATION
SHORT SIDE
SILICON
RING
LONG SIDE
INSTALLATION
HOLE CAN'T BE
TOO TIGHT.
IF NECESSARY
WIDEN THE
A = 2,5mm
HOLE WITH
A FILE LIKE
SHOWN ON
THE PICTURE.
B = 20,5 - 21,0 mm
IF THE SENSOR INSTALLA-
TION HEIGHT IS MORE THAN
55 CM, POINT THE SENSOR
DOWN, IF THE INSTALLATION
HEIGHT IS BELOW 55 CM,
POINT UP.
BLACK
Display orienta-
tion setup button
SHORT CLIP
LONG CLIP
L
=
Y
=
W =
B
=
L
Y
W
B
POSITIONING KEY (*) IS ALWAYS
FACING SIDEWAYS!
MAKE A GROOVE FOR POSTIO-
NING KEY, MARKED BY THE LET-
TER "A" ON THE PICTURE LEFT
blue
yellow
white
black
Advertisement
Table of Contents
Related Manuals for Meta System Easypark
Summary of Contents for Meta System Easypark
- Page 1 Meta Easypark quick installation manual GENERAL WIRING DIAGRAM Buzzer blue yellow white black BLACK RED/ BLACK BLACK Display orienta- tion setup button Display META EASYPARK ASSEMBLING AND INSTALLATION SHORT SIDE SHORT CLIP SILICON RING LONG SIDE LONG CLIP INSTALLATION HOLE CAN’T BE TOO TIGHT.
- Page 2 The product is programmed with a 30 cm OFFSET which can be set from a minimum of 25 cm to a maximum of 60 cm. 1. Unplug the main connector from the EasyPark control unit, turn on the ingnition and engage the reverse gear. 2. Set the trimmer on position 2.
