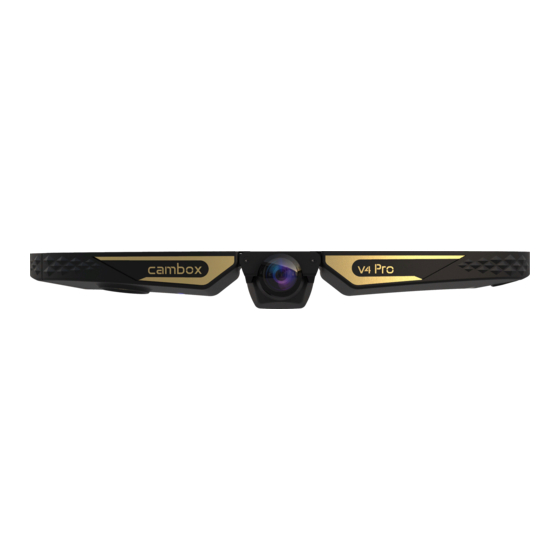

CAMBOX V4 User Manual
  1. Manuals
  2. Brands
  3. CAMBOX Manuals
  4. Action Cameras
  5. V4
  6. User manual

CAMBOX V4 User Manual

Hide thumbs Also See for V4:

Advertisement

Table of Contents

User manual
23.03.2023
V4, V4+, V4 Pro
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V4 and is the answer not in the manual?

Questions and answers

Related Manuals for CAMBOX V4

Summary of Contents for CAMBOX V4

  • Page 1 User manual 23.03.2023 V4, V4+, V4 Pro...
  • Page 2 General information Customer support The Cambox team is committed to offer the best service as possible to its customers. You can contact our customer support at bonjour@cambox.eu or from our online chat on our website www.cambox.eu Registered brands and patents The CAMBOX brand and all its derivatives are registered and protected brands with international copyright laws.

  • Page 3: Table Of Contents

    Your Cambox Quickstart guide Battery charging condition Functionalities Light indicators summary For more information and to access our support pages Fasten your Cambox Click on below button : Remove your Cambox Set the viewing angle Access to support Transfer your files...
  • Page 4 Quickstart Guide...

  • Page 5: Your Cambox

    Your Cambox Lens protective cap Reset pin On/Off button & Pause Protective cap Battery status LED USB-C port: battery charge & files transfer Camera status LED Micro SD card port WiFi indicator LED WiFi button...

  • Page 6: Battery Charging Condition

    Ideal conditions for charging The ambient temperature as well as the camera temperature must be between 10°C and 45°C. To ensure proper charging of the internal battery, make sure that the Cambox is turned off during the charging cycle. IMPORTANT ! ⚠...

  • Page 7: Functionalities

    Approximately 4 hours are required to fully recharge the battery using a 230 V If your Cambox turns off automatically a few seconds after turning it on, this is due to either a low battery, a full or missing micro SD card (not enough free space available to ⚠...
  • Page 8 When the Cambox is recording the camera status LED is blinking green and you hear 2 vibrations. Before using your Cambox, be sure to check the following points : ⚠ 1) Is the battery fully charged ? ⚠...
  • Page 9 Functionalities Pause Recording When on pause mode, perform a quick press on the ON/OFF button To stop recording, perform a quick press on the ON/OFF power button to start a new video. of your camera to switch to pause mode. The camera emits a short vibration and the LED changes from blinking green to solid red, confirming the camera has stopped recording.
  • Page 10 Functionalities Turn off / shut down the camera Press the ON/OFF button for 5 seconds. You hear a long vibration and the red LED gradually decreases until the camera is completely turned off. 5 seconds...

  • Page 11: Light Indicators Summary

    Full or missing SD card Flashing blue Preview mode activated Wifi status LED Description Flashing orange Wifi connection pending You can change the camera LED brightness through the Cambox App in the settings > Ergonomics Solid orange Connected to wifi...

  • Page 12: Fasten Your Cambox

    (approximately 15°C) to ensure maximum grip of the glue. It is also ⚠ recommended to wait at least 4 hours before placing the Cambox on its clean and dry support ! It is advised to wait at least 4h after gluing before fixing your Cambox...

  • Page 13: Remove Your Cambox

    ⚠ ⚠ The wings of the Cambox only articulate from up to down and v.v. Make sure not to foreign matter that could hinder the fastening of the camera. In that case, plan the fold them from front to back and v.v. or you might damage the articulations and/or the replacement of the velcro by a new original one.

  • Page 14: Set The Viewing Angle

    Set the viewing angle The central part of the Cambox has a tilting lens that allows you to In order to accurately determine the desired viewing angle, modify the viewing angle on 20°. download and install the Cambox App on your smartphone to check in real time your viewing angle thanks to the preview You have access to 3 predefined angles thanks to some notches :...

  • Page 15: Transfer Your Files

    Transfer your files Via Wifi Via USB cable Turn on your Cambox as usual, then pause the record is the Activate the Cambox Wifi by pressing the button , the wifi auto record is set on.
 turns on and starts flashing indicating it is ready to be The power LED must be solid red
...

  • Page 16: Cambox Smartphone App

    Cambox Smartphone App Cambox App Download the Cambox App from the App Store or the Google Play Store in order to change your camera settings. Please note that some features are not yet enabled in the app and will be added in the next released updates.
  • Page 17 Activate the wifi of your Cambox 1. Turn on the Cambox 2. Activate the wifi of the Cambox Press 1 second the On/Off button of your camera. Once the Push briefly the camera Wifi button. The Wifi LED then Power LED starts blinking green, press briefly the On/Off...
  • Page 18 Connect your Cambox to your smartphone 1. Open your Wifi settings 2. Select the Cambox network 3. Enter password 4. Connection successful 12345678 On your smartphone, open your Wifi Select the « Cambox-v4xx-xxx » Your camera is now paired to your The default password is : 12345678...
  • Page 19 2. App home screen 1. Open the app Start / Stop recording Activate preview mode Access video gallery Change settings Open the « Cambox App », then select You are now on the Cambox App home the « Let’s go » button to start the screen. experience.
  • Page 20 To enable Preview mode, slide the button to the right The Cambox® power LED will turn solid blue, and then flashing blue to indicate that video stream is on … To disable this mode, slide the same button to the left.
  • Page 21 Launch a video record ULTRA HD 4K 1080 FULLHD1080 To start a video record from HD720 the Cambox, press the red button. Once video recording is This mode is the most powerful but also the activated, the button turns 4K ULTRAHD* most battery consuming mode.
  • Page 22 You visualize a progress bar of your video Select the bottom left corner button to streaming without download. In this case, the your Cambox micro SD card presented as download, once at 100% the save & share access the video gallery.
  • Page 23 Access the advanced settings of the Cambox V4 Pro the versions, change the wifi name or password, (ISO, Saturation, Contrasts,…) restore the factory settings, etc … ⚠ * The Pro mode features are only available on the Cambox V4 Pro models.
  • Page 24 Detailed video...

  • Page 25: Settings List

    > Yes * > No This button allows you to reinitialize the camera to its Reset default settings factory settings. Enable audio capture with microphones Audio > Yes * > No The sign * indicate the factory default values of the Cambox...
  • Page 26 > 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12*, 13, 14 ⚠ * The advanced settings of the Pro Mode are only available with the Cambox V4 Pro models. The sign * indicate the factory default values of the Cambox...

  • Page 27: Trouble Shooting

    Trouble shooting SYMPTOMS CAUSES AND SOLUTIONS The Cambox has reach a low battery level, try to plug an external battery The LED (3) is blinking red to extend the record duration. 1) Turn off and then on your camera The Cambox has reach a critcial battery level. The recording has...
  • Page 28 2. Take the metallic pin supplied with your Cambox 3. Turn your Cambox with the Velcro part facing up, identify the reset hole 4. Insert the pin in the reset hole. 5. Push gently until you feel a click in the reset hole.

  • Page 29: Instructions To Respect

    The user is fully responsible for its uses. Be careful Battery : Do not attempt to remove the battery (note : battery recycling when using your Cambox as part of your sports activities. Pay must be in accordance with local environment regulations, see “...
