V1
USER MANUAL

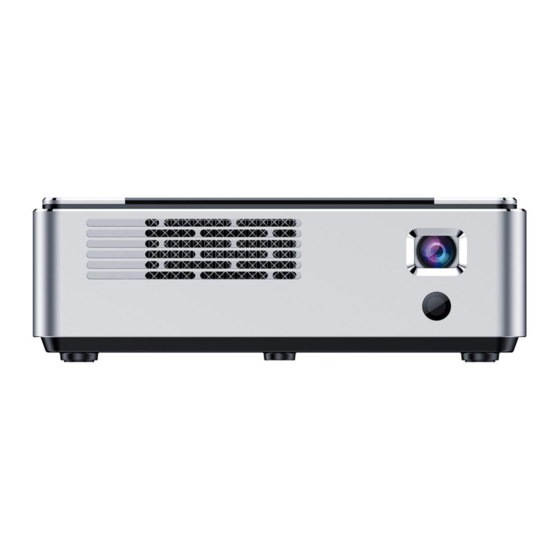

Model: NOVA Pro

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NOVA Pro and is the answer not in the manual?

Questions and answers

Summary of Contents for PICZO NOVA Pro

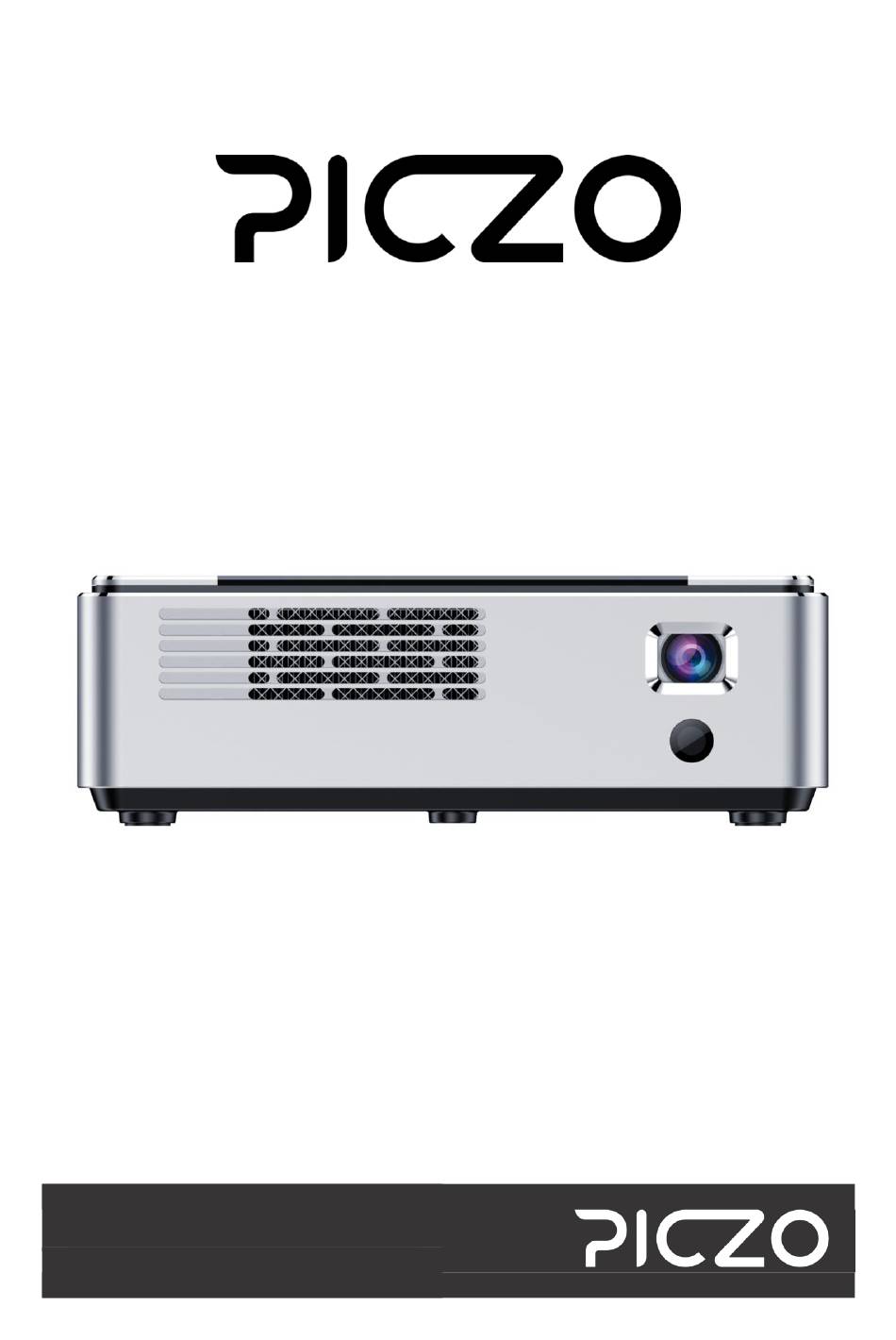

  • Page 1 USER MANUAL Model: NOVA Pro...
  • Page 2: Table Of Contents

    FCC Compliance Statement ..................... 3 FCC Requirement ........................3 Disposal and Recycling Information ..................4 Precautions ..........................4 Package Contents ........................5 Projector ............................6 4.1.1 Touchpad............................. 7 Remote ............................7 Basic Operations ........................8 Charging ............................8 Power ON ............................ 8 Power OFF ..........................
  • Page 3: Fcc Compliance Statement

    FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Requirement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 4: Disposal And Recycling Information

    Disposal and Recycling Information Damaged batteries should be treated as hazardous materials. Do not return the device if the battery is swelling, leaking, or if you in any other way suspect that the battery is damaged. In this case, please make sure you dispose of or recycle the item and its accessories according to local laws and regulations.
  • Page 5: Package Contents

    Package Contents Projector Mini Tripod Power Adapter Power Plug (EU) HDMI Cable USB-C Cable Remote Control with Gyro...
  • Page 6: Projector

    Projector...
  • Page 7: Touchpad

    4.1.1 Touchpad The touchpad is located on top of the projector. How to operate the touchpad: • Use one finger on the center of the touchpad to move the Mouse Pointer. • Double tap with one finger to Confirm (OK). •...
  • Page 8: Basic Operations

    Basic Operations Charging The projector can be powered by the included Power Adapter or the internal rechargeable battery. To obtain maximum battery life, it is highly suggested that you charge the battery for at least 4 hours the first time. 1.
  • Page 9: Resizing Projection Screen

    Resizing Projection Screen The projection screen size is related to the distance from the projector to the surface on which the display is being projected onto, also known as throw distance. Please refer to the following table for the relationship between throw distance and screen size: Screen Size Throw Distance 7"...
  • Page 10: User Interface

    User Interface Home Screen Settings Menu App Shortcuts...
  • Page 11: Home Screen

    Home Screen Please refer to the following table for information about the Home Screen icons: Aptoide TV A free, alternative app store with no restrictions. All apps are free. 2500+ apps available. Apps Access all installed apps on the projector. Files Access all files available on the projector and browse connected memory devices.
  • Page 12: Status Icons

    Status Icons Please refer to the following table for information about the Status Icons found on the Home Screen in the top right corner: Auto Focus Indicates Auto Focus on/off. Bluetooth Indicates Bluetooth device(s) connected or not. Wi-Fi Indicates Wi-Fi connection and signal strength.
  • Page 13: Input Sources

    Input Sources There are 3 sources of input: wireless display, wired display and memory device. Wireless Display Wirelessly project the display from any supported device by connecting the device to the same Wi-Fi network as the projector and use the following instructions depending on device and operating system: 7.1.1 iOS/iPadOS 1.
  • Page 14: Macos

    On Samsung devices: find and tap Smart View , accept any security prompt, choose “NOVA PRO” from the list, then tap Start now. b. On other devices: find and activate Cast/Screen Mirroring/Wireless Display, accept any security prompt, choose “MINI CUBE” from the list, then confirm the action.
  • Page 15: Wired: Hdmi

    Wired: HDMI Project the display from any device supporting HDMI screen sharing by selecting HDMI source from the Home Screen and connecting the device via an HDMI cable. Please note: • The projector supports 4K HDMI input source at 60 Hz. Wired: USB-C Project the display from any device supporting USB-C screen sharing by selecting USB-C source from the Home Screen and connecting the device via a USB-C cable.
  • Page 16: Memory Device: Usb Storage Device

    Memory Device: USB storage device Connect a USB 2.0 compatible storage device to playback and view content. Access the memory device content via Home Screen > Files or via the device prompt shown at the bottom of the image when connecting the storage device. Please note: •...
  • Page 17: Product Maintenance

    Product Maintenance Projector • Charge the battery for at least 4 hours the first time. • If the projector gets dirty: wipe clean with a dry cloth. • Do not wipe the projector with a damp cloth. Remote The remote control comes with 2 included AAA 1.5 V batteries in the original package. Please use the same type of battery when replacement is needed.
  • Page 18: Technical Specifications

    Technical Specifications Native Resolution 960*540 (FWVGA) Compatible Resolution Up to 4K Display Technology DMD DLP with 3D Support Light Source RGB LED OSRAM Focus Autofocus, Manual Brightness (ANSI) 500 Lumens Contrast 3000:1 Power Supply DC 12 V, 4 A Power 36 W 8 Ω, 5 W Built-in Speaker...
  • Page 19: Trademarks

    10 Trademarks Piczo is a registered trademark of Swede Invent AB, registered in Sweden. Distributed by Swede Invent AB, Säterivägen 16, 65341 Karlstad, Sweden. © 2023 All Rights Reserved. Made in China. Apple, iPadOS, macOS and AirPlay are trademarks of Apple Inc., registered in the U.S. and other countries.
