1
Fire fighting pistol with quick coupling exchangeable fog, piercing and foam nozzle .
All nozzles are equipped with quick coupling enable fast and easy attachment to handle.
Attach applicable nozzle rod to the handle depending on fire fighting task.
2
5

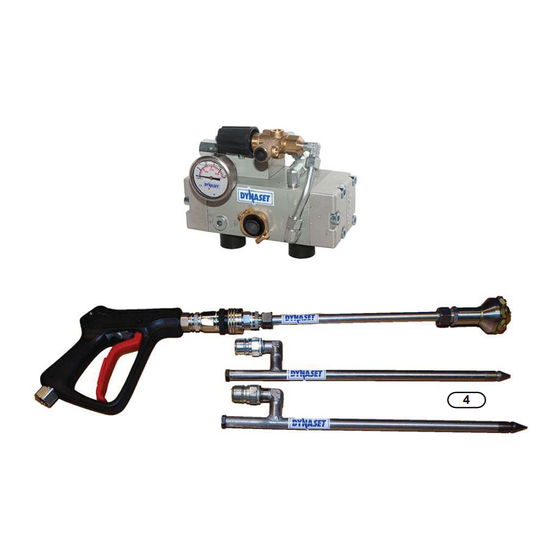

FIRE FIGHTING KIT COMPRISES FOLLOWING COMPONENTS:
1. High pressure water pump HPW200/30-45. Note external documents
2. Spray pistol handle, (pressure hose 10 m). Quick coupling tool attachable.
3. Fog nozzle. Thick high pressure fog blanket for extinguishing large areas in
4. Piercing nozzles 60 and 170. Rapid piercing through wall with instant
5. Foaming agent / water injector. Throughput max. 25 l/min, adjustable foam
6. Agent/water mixer valve. Sucks agent from foam reservoir
7. Foam nozzle. If adjust more air > Bigger bubbles and foam is spongy.
1
HPW_manual_ENG, HPW200-30-45_DATA_ENG.
flames. Small droplets ensure low water usage and damage. Lowers burn
temperature efficiently. Rapid efficiency temperature drop.
extinguishing mode. Prevents extra oxygen access to strengthen flames.
content 0 -6%. Attach to the HPW pump water inlet.
Less air > Smaller bubbles.
FIRE FIGHTING PISTOL KIT
6
July 2013 JLe
HPW ACCESSORIES - ACC
HPW200
3
4
7
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dynaset HPW200
Summary of Contents for Dynaset HPW200
- Page 1 Attach applicable nozzle rod to the handle depending on fire fighting task. FIRE FIGHTING KIT COMPRISES FOLLOWING COMPONENTS: 1. High pressure water pump HPW200/30-45. Note external documents HPW_manual_ENG, HPW200-30-45_DATA_ENG. 2. Spray pistol handle, (pressure hose 10 m). Quick coupling tool attachable.
- Page 2 July 2013 JLe HPW ACCESSORIES - ACC WASHING PISTOLS Washing pistol double ST15-ST53-25xx. Pistol equipped with regulation knob enable adjusting spray form. Spraying operation: 1. Attach water hose to handle quick coupling. 2. Start the HPW pump. 3. Point washing pistol to the target. 4.
- Page 3 July 2013 JLe HPW ACCESSORIES - ACC FOAMING AGENT INJECTOR HPW200-FOAM DYNASET HPW200-FOAM fire injector is designed for installation to any vehicle equipped with a hydraulic system of sufficient power. Adjust spray either point or flat forms depending the target.
- Page 4 WATER WATER HOSE: MAX. LENGTH 2 M FOAMING AGENT INJECTOR KIT COMPRISES FOLLOWING COMPONENTS: 1. High pressure water pump HPW200/30-45; 2. Spray pistol, 5. Foaming agent/water injector, throughput max. 25 l/min; 6. Agent/water mixer valve. 7. Foam nozzle 8. Intake piece 9.
- Page 5 3. Sand suction hose m 4. Sand suction lance DYNASET sandblasting attachment works sucking dry sand through sand lance to the mixing head where high pressure water and sand are mixed. Water flow accelerates the sand in very high speed generating extremely high impact force. The sandblasting head is used same way as the normal water nozzle in the head of pistol or robot head.
-
Page 6: Ec Declaration Of Conformity
Electrical assemblies are fitted with these standards to meet the requirements. If device has changed by someone other than at the hands of manufacturer or his permission, this declaration is not valid. PRODUCT: FIRE FIGHTING PISTOL KIT HPW200 YLÖJÄRVI 04.09.2013 DYNASET Oy Timo Nieminen... - Page 7 Electrical assemblies are fitted with these standards to meet the requirements. If device has changed by someone other than at the hands of manufacturer or his permission, this declaration is not valid. PRODUCT: SANDBLASTING ATTACHMENT R1/4” 400 bar YLÖJÄRVI 04.09.2013 DYNASET Oy Timo Nieminen R&D Manager...
-
Page 8: Manufacturer's Limited Warranty
Exclusions shipped, at the purchaser’s cost, adequately from warranty are explained in item 8. packed for shipment, to the DYNASET OY or to other location authored by DYNASET OY. Shipment documents must contain: Beginning of warranty period Purchaser’s name and contact information...
