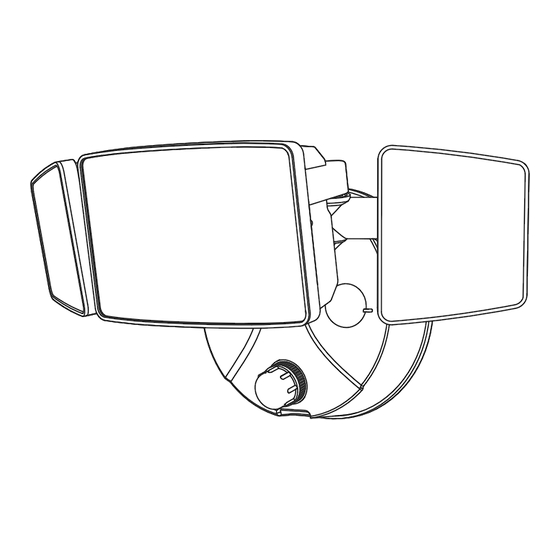

- Page 1 LED DUSK TO DAWN WALL LIGHT Quick Start Guide MODEL: BDB55D-3 BDJ55D-3 BDL40D-3 BDI45D-2 BDC80D-3 BDD100D-3...
- Page 2 COMPONENTS AND STRUCTURE BDB55D-3 BDJ55D-3 BDI45D-2 BDC80D-3 BDD100D-3 BDL40D-3...
-
Page 3: Parts List
Silicone Gasket Machine Screw QTY: 3 QTY: 1 QTY: 1 QTY: 2 Machine Screw QTY: 2 SPECIFICATIONS LED WALL LAMP Model BDB55D-3 BDJ55D-3 BDI45D-2 BDC80D-3 BDD100D-3 BDL40D-3 Input Current 0.5A 0.5A 0.38A 0.58A 0.83A 0.35A Rated Power 100W Luminous Flux... - Page 4 SPECIFICATIONS DIMENSIONS BDI45D-2 Model BDB55D-3 BDJ55D-3 272x123x121mm/ 270x152x109 mm/ 256x140x145 mm/ Dimensions（LxHxW） 10.71x4.84x4.76 in 10.63x5.98x4.29 in 10.08x5.5x5.7 in 0.9kg/1.98 lb 0.83kg/1.83 lb 0.9kg/1.98 lb Weight 0.0214m²/0.23ft² 0.0214m²/0.23ft² 0.286m²/0.307ft² Max Projected Area 70m²/753ft² 90m²/968ft² 90m²/968ft² Max. Lighting Coverage Model BDC80D-3 BDD100D-3...
- Page 5 PREPARATION NOTE: Before beginning assembly of product,make sure all parts are present.Compare parts with parts list.If any part is missing or damaged, do not attempt to assemble the product. Estimated Assembly Time:30-60 minutes. Recommended to be installed on the ground above 2.5m (8.2 ft) and no higher than 5 m (16.4 ft).
- Page 6 PREPARATION RISK OF SHOCK: BEFORE BEGINNING INSTALLATION,TURN OFF ELECTRICITY AT THE CIRCUIT BREAKER BOX OR THE MAIN FUSE BOX. NOTE: BE SURE TO USE WIRE NUTS/CONNECTORS RATED FOR THE CORRECT GAUGE AND NUMBER OF WIRES USED. MAKE SURE THERE ARE NO EXPOSED WIRE BUNDLES OUTSIDE THE WIRE NUT/CONNECTOR (IF APPLICABLE).
-
Page 7: Installation Steps
INSTALLATION STEPS FOR WET LOCATION, MAKE SURE FILL FULL THE GAP OF EVA GASKET AND MOUNTING SURFACE WITH SEALING COMPOUND OR SILICON GLUE. WHITE WHITE NEUTRAL LINE NEUTRAL LINE FROM HOUSE FROM FIXTURE BLACK BLACK LIVE WIRE LIVE WIRE FROM HOUSE FROM FIXTURE GREED GREED... - Page 8 Note： The raised part (RA) of the metal plate must be engaged with the recessed part (RE) of the base, otherwise it cannot be installed.
-
Page 9: Troubleshooting
OPERATION INSTRUCTIONS Sensor head: When the ambient brightness is less than 10~20LUX at night, the light will be on automatically. When the ambient brightness is more than 30~60LUX during the day, the light will be off automatically. Sensor head NOTE: Do not cover the sensor head, otherwise it will affect the normal operation of the lamp. - Page 10 Manufacturer / Hersteller: Shen Zhen Shi Meng Zhi Tuo Ke Ji You Xian Gong Si Address: qian wan yi lu 1 hao A dong 201 shi qian hai shen gang he zuo qu Shen Zhen, Guang Dong, 518000, CN support@onforuled.com www.onforuleds.com EU REP MDH LIGHTING LTD Suite 302, 292 Strovolos Avenue, 2048 Strovolos Nicosia, Cyprus | support@onforuled.com UK REP MDH LIGHTING LTD 69 Aberdeen Avenue, Cambridge CB2 8DL, United Kingdom | support@onforuled.com Made in China...
