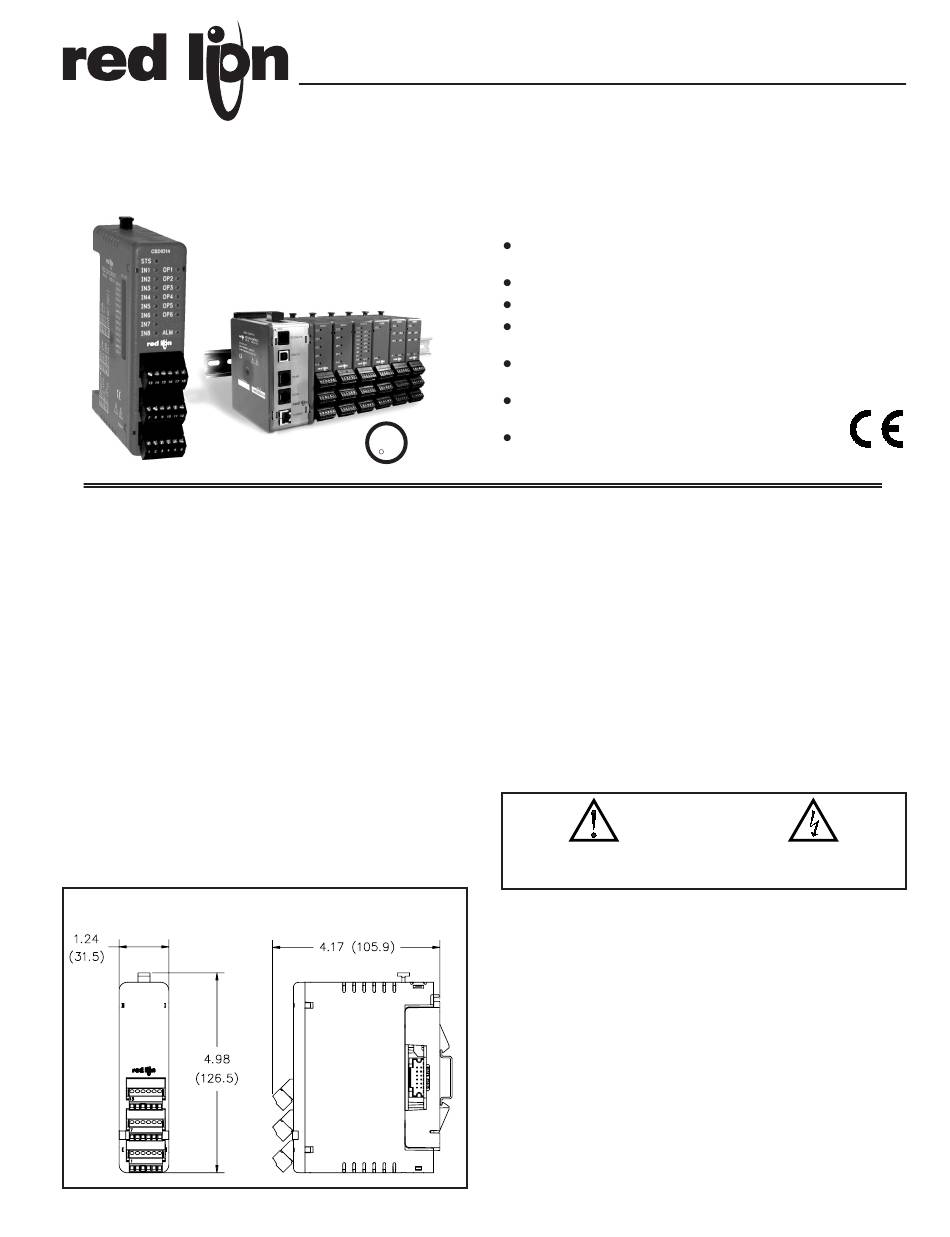

red lion CSDIO Series Manual

Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net
MODEL CSDIO - MODULAR CONTROLLER

GENERAL DESCRIPTION

The Model CSDIO series modules are digital I/O modules designed for use
with the Modular Controller Series. The CSDIO14 offers eight inputs and six
outputs that can be used to monitor contact or sensor inputs and actuate relays,
solenoids, PLC inputs, etc.
The inputs accept standard DC inputs or contact closures, and are configured
for Sink/Source signals via external switches. Additionally, each input has a
switch selectable input filter that can be used to prevent contact bounce. Each
input may also be software configured as a high-active or low-active input.
The modules are available with relay or NFET outputs that are capable of
switching up to one amp each (NFET DC only). For applications requiring large
loads to be controlled, several DIN rail mount relays are available.
The CSDIO modules connect and communicate via a backplane connection
to the CSMSTR Modular Controller Series Master. The CSMSTR, equipped
with serial ports as well as an Ethernet port, allows the system to share data with
PCs, PLCs, and SCADA systems. The Master supports any combination of up
to 16 CS Series modules.
Internal power management circuits allow the modules to be replaced while
power is applied, which reduces downtime in the event of a relay failure. All
configuration information is stored locally within each module, as well as in the
Master, so replacement modules do not need to be configured. The Modular
Controller Series' high density packaging and DIN rail mounting saves time and
panel space. The backplane connection provides power and communication to
the module and snaps easily onto standard top hat (T) profile DIN rail.
DIMENSIONS In inches (mm)
For Sales and Support, Contact Walker EMD • Toll-free: (800) 876-4444 • Tel: (203) 426-7700 • Fax: (203) 426-7800 • www.walkeremd.com
SERIES DIGITAL MODULE
ADDS REMOTE I/O CAPABILITY TO THE MODULAR
CONTROLLER SERIES
EIGHT INPUT, SIX OUTPUT DIGITAL MODULE
INPUTS ISOLATED FROM OUTPUTS
INPUTS INDEPENDENTLY SWITCH SELECTABLE FOR SINK OR
SOURCE SIGNALS
INPUTS INDEPENDENTLY CONFIGURABLE FOR HIGH OR LOW
ACTIVE STATE
INPUTS INDEPENDENTLY SWITCH SELECTABLE FOR
HIGH OR LOW FREQUENCY SIGNALS
RELAY OR NFET OUTPUT MODELS AVAILABLE
U
L
C US LISTED US LISTED
4
IND. CONT . EQ.
34AD

CONFIGURATION

The Modular Controller Series is configured with Windows
Crimson™ software. The software is an easy to use, graphical interface that
provides a means of communication configuration, as well as commissioning
and calibration of new systems.

SAFETY SUMMARY

All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use the module to directly command motors, valves, or other actuators
not equipped with safeguards. To do so can be potentially harmful to persons or
equipment in the event of a fault to the module.
Read complete instructions prior to
installation and operation of the unit.
1
CAUTION: Risk of Danger.
Bulletin No. CSDIO-E
Drawing No. LP0558
Released 11/06
®
compatible
CAUTION: Risk of electric shock.
