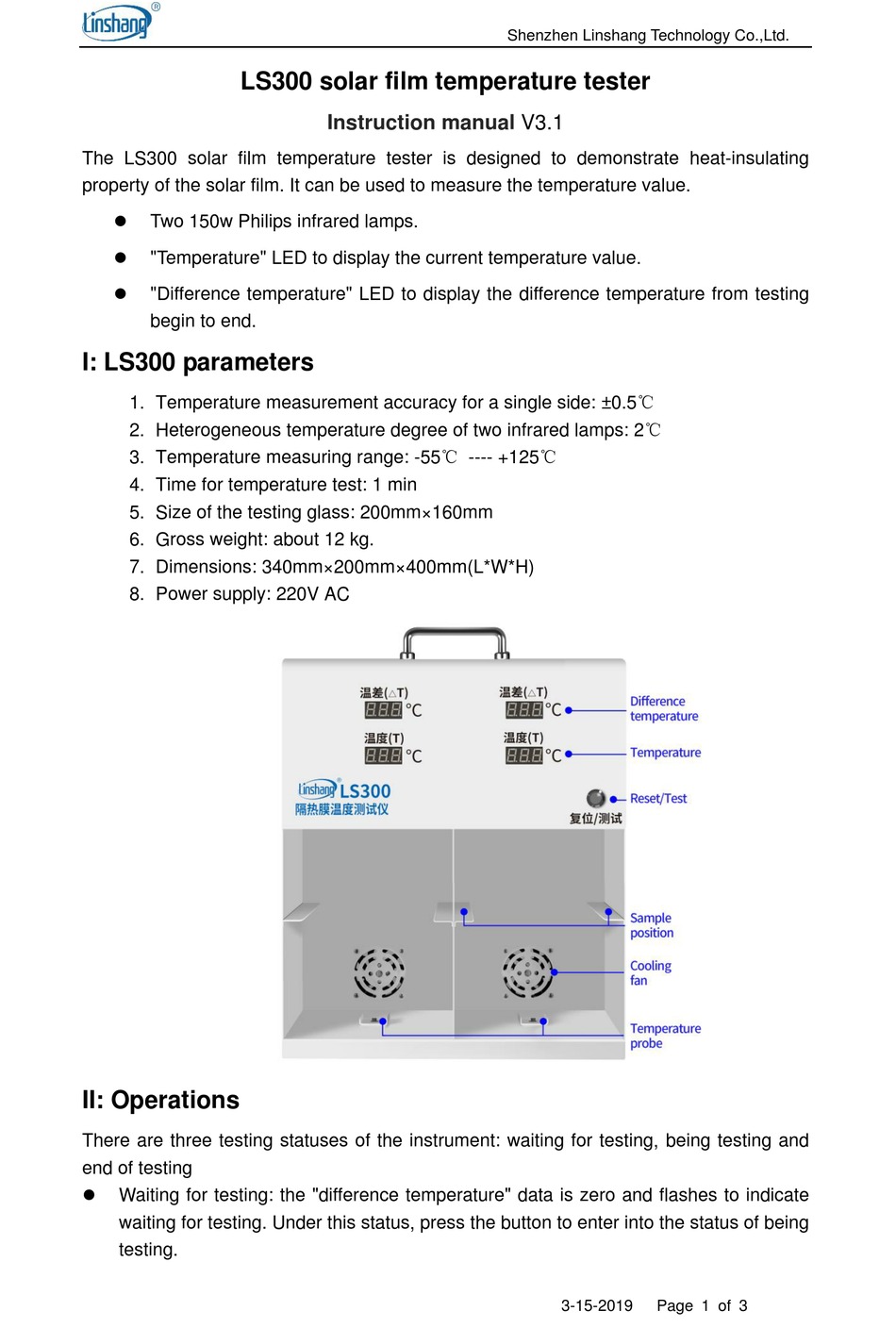

LINSHANG LS300 Instruction Manual

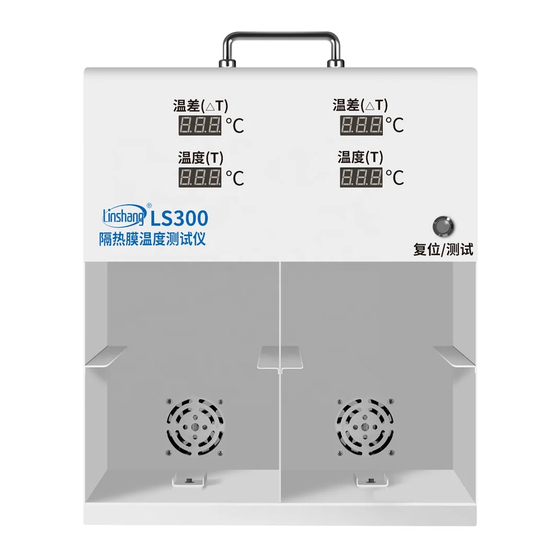

LS300 solar film temperature tester
The LS300 solar film temperature tester is designed to demonstrate heat-insulating
property of the solar film. It can be used to measure the temperature value.

Two 150w Philips infrared lamps.

"Temperature" LED to display the current temperature value.

"Difference temperature" LED to display the difference temperature from testing
begin to end.
I: LS300 parameters
1. Temperature measurement accuracy for a single side: ± 0.5℃
2. Heterogeneous temperature degree of two infrared lamps: 2℃
3. Temperature measuring range: -55℃ ---- +125℃
4. Time for temperature test: 1 min
5. Size of the testing glass: 200mm×160mm
6. Gross weight: about 12 kg.
7. Dimensions: 340mm×200mm×400mm(L*W*H)
8. Power supply: 220V AC
II: Operations
There are three testing statuses of the instrument: waiting for testing, being testing and
end of testing

Waiting for testing: the "difference temperature" data is zero and flashes to indicate
waiting for testing. Under this status, press the button to enter into the status of being
testing.
Instruction manual
Shenzhen Linshang Technology Co.,Ltd.
V3.1
3-15-2019 Page 1 of 3
