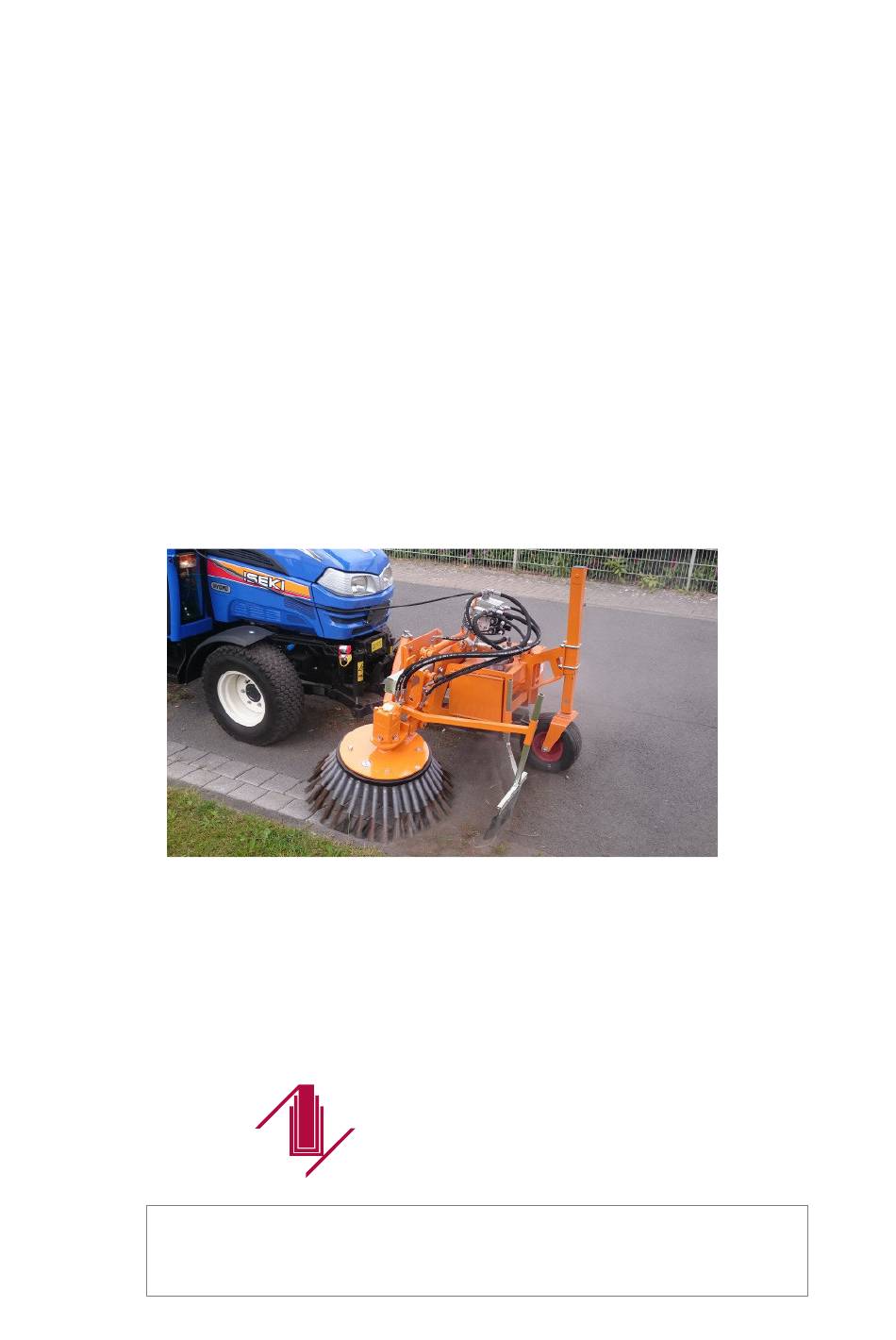

Operating Instructions/
Spare Part List
Weed Control Machine
Fabr.-Nr.: ..........-..........
Huxfelder Straße 8
D-28879 Grasberg
www.michaelis-maschinenbau.de
Michaelis
KM 40
MICHAELIS
m a s c h i n e n b a u
Telefon (0049) 4208 8294-0
Telefax (0049) 4208 506
info@michaelis-maschinenbau.de
Ausgabe 11/2015
Advertisement
Table of Contents
Related Manuals for Michaelis Maschinenbau KM 40
Summary of Contents for Michaelis Maschinenbau KM 40
- Page 1 Operating Instructions/ Spare Part List Michaelis Weed Control Machine KM 40 Fabr.-Nr.: ……….-………. MICHAELIS m a s c h i n e n b a u Huxfelder Straße 8 Telefon (0049) 4208 8294-0 D-28879 Grasberg Telefax (0049) 4208 506 www.michaelis-maschinenbau.de info@michaelis-maschinenbau.de...
-
Page 2: Table Of Contents
Brush types Seite Brush change – Flat steel Seite Impact protection element Seite Maintenance Seite Support wheel Seite Safty note Seite Spare Part List KM 40 Electrical and hydraulic system in the appendix (Depending equipment) Content errors reserved - 2 -... -
Page 3: Technical Data
2. Technical Data Designation: Front device for weed removal and cleaning __________________________________________________________________________ Typ KM 40: Front device for weed removal with hydraulic side adjustment Weight KM 40: 250 KG Basic dimensions ca. -
Page 4: Operating Instructions
MICHAELIS m a s c h i n e n b a u Operating Instructions We are pleased that you have decided to purchase this machine. It has been made using state-of-the-art technology and quality workmanship. To ensure that the machine has a long service life some basic duties are necessary. Description of safety notes Safety notes are marked by a pictogram or a signal word. -
Page 5: General Description
4. General description The KM 40 is a front-mounted attachment with special weeds brushes for easy and effective, eliminating mechanical fugues and moss paved surfaces, paths, places and roadsides. -
Page 6: Attachment
MICHAELIS m a s c h i n e n b a u Attachement A professional attachment has to be carried out by qualified staff. Pay attention to the attachment specifications of the carrier vehicle manufacturer and the road traffic act concerning: track protruding parts / distance steering wheel center to front edge of attachment. -
Page 7: Operation
MICHAELIS m a s c h i n e n b a u Operation During operation the machine has to be driven solely in floating position for better adaption to ground unevenness and in order to avoid damage to the machine itself and to prevent high brush wear. -
Page 8: Work Deployment
MICHAELIS m a s c h i n e n b a u Work deployment Depending on the intensity of dirt on the surface to be cleaned and its material the performance and the necessary approach differ very much and it can only be learnt by practice and experience. -
Page 9: Brush Types
MICHAELIS m a s c h i n e n b a u Brush types The manufacturer offers different types of NOTE brushes. The appliance is equipped with the universal flat steel brush KM20 Flat steel brush KM 20-5: For weed and moss Especially intensive cleaning of joints Only to be used on small tractors Picture 4... -
Page 10: Impact Protection Element
MICHAELIS m a s c h i n e n b a u Impact protection element When working with no or not properly adjusted WARNING impact protection damage to property or personal injury can arise! CAUTION Mind a safety distance. It has a lot of adjustment options and has to be set according to the different demands. -
Page 11: Safty Note
MICHAELIS m a s c h i n e n b a u Safety notes Before using the machine for the first time the operator has to make himself intensive familiar with the machine and has to read the operation manual carefully. The respective guidelines of the responsible employers’...
