Operating Instructions /
Spare Part List

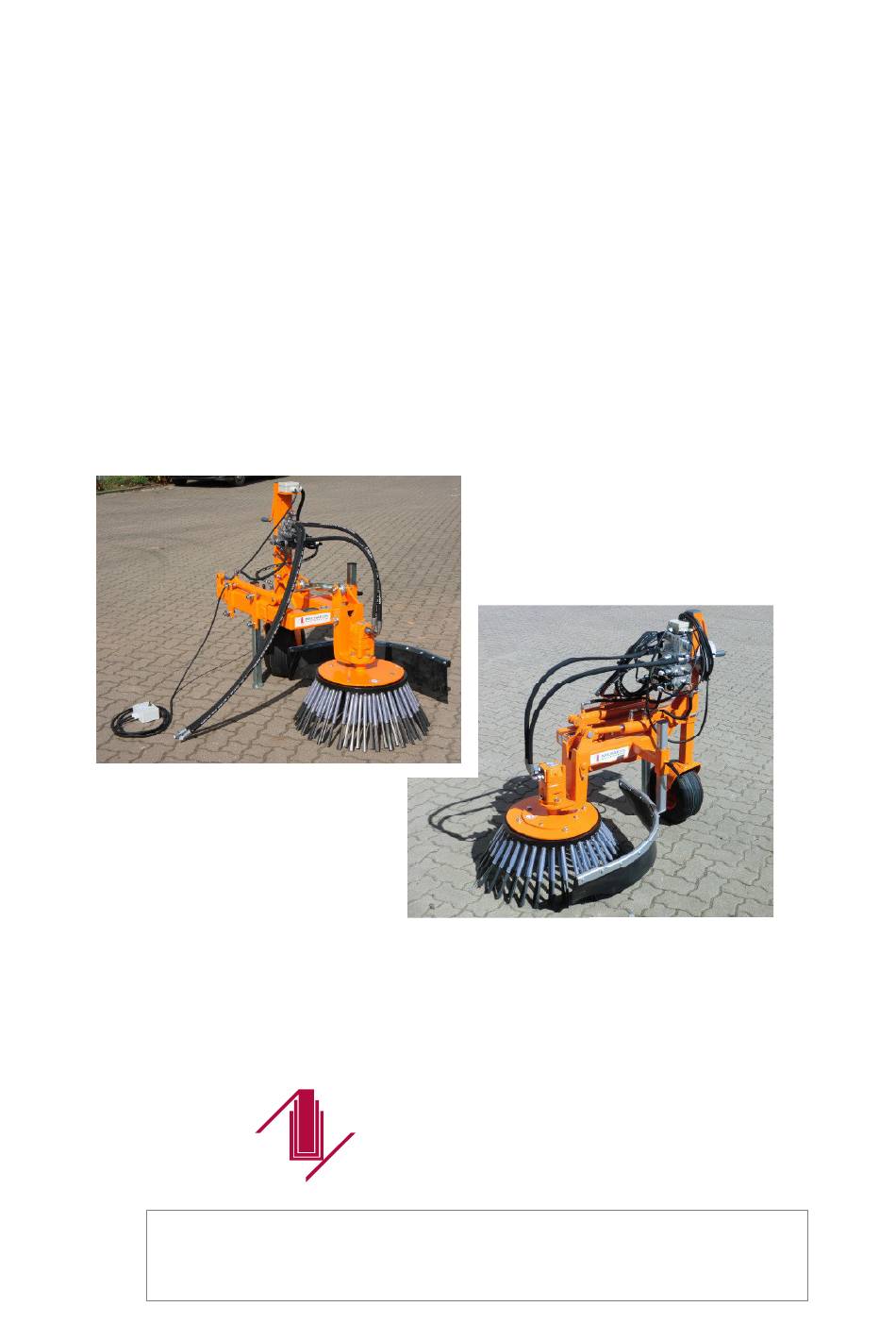

Weed Control Maschine
KM 20 T/TS – TO/TSO
KM 20 TO / TSO
with top link
Huxfelder Straße 8
D-28879 Grasberg
www.michaelis-maschinenbau.de
Michaelis
Fabr.-Nr.: ..........-..........
MICHAELIS
m a s c h i n e n b a u
KM 20 T / TS
with hydraulic cylinder
Telefon (0049) 4208 8294-0
Telefax (0049) 4208 506
info@michaelis-maschinenbau.de
Edition 03/2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KM 20 T and is the answer not in the manual?

Questions and answers

Related Manuals for Michaelis Maschinenbau KM 20 T

Summary of Contents for Michaelis Maschinenbau KM 20 T

  • Page 1 Operating Instructions / Spare Part List Michaelis Weed Control Maschine KM 20 T/TS – TO/TSO KM 20 TO / TSO with top link KM 20 T / TS with hydraulic cylinder Fabr.-Nr.: ……….-………. MICHAELIS m a s c h i n e n b a u Huxfelder Straße 8...

  • Page 2: Table Of Contents

    Technical requirements page Attachment page Start up page Typ KM 20 T/TS with hydraulic cylinder page the brush head tilt Typ KM 20 TO/TSO with top link page the brush head tilt Operation page KM 20 T/TS –...

  • Page 3: Technical Data

    2. Technical Data Designation: Front device for weed removal and cleaning __________________________________________________________________________ Typ KM 20 T / TO: Front device for weed removal With hydraulic sideshift Weight KM 20 T/TO: 130 kg Basic dimensions ca.

  • Page 4: Operating Instructions

    MICHAELIS m a s c h i n e n b a u Operating Instructions We are pleased that you have decided to purchase this machine. It has been made using state-of-the-art technology and quality workmanship. To ensure that the machine has a long service life some basic duties are necessary.

  • Page 5: General Description

    4. General description The KM 20 T / KM 20 TS is a front-mounted attachment with special weeds brushes for easy and effective, eliminating mechanical fugues and moss paved surfaces, paths, places and roadsides.

  • Page 6: Attachment

    WICHTIG look out for Typ KM 20 T / TS (with hydraulic cylinder the brush head tilt) With the help of change-over valves of the main frame during the brushing operation can on or off (-2S1) are driven and the "tendency of the brush head" (-2S2) be set.

  • Page 7: Typ Km 20 To/Tso With Top Link The Brush Head Tilt

    MICHAELIS m a s c h i n e n b a u Typ KM 20 TO / TSO (with top link the brush head tilt) Using the integrated diverter valve can be either the brush driven or telescoped laterally. To switch the functions "the brush operating"...

  • Page 8: Operation

    The hydraulic hoses have to be firmly mounted. The clearance of all movable parts has to be ensured. KM 20 T / TS - Function mini-control panel with hydraulic cylinder The control desk has 2 functions. On the one hand the telescoping of the main frame with brush (2S1, left-right) and the other hands tilting the brush head (2S2: up-down).

  • Page 9: Work Deployment

    MICHAELIS m a s c h i n e n b a u Work deployment Depending on the intensity of dirt on the surface to be cleaned and its material the performance and the necessary approach differ very much and it can only be learnt by practice and experience.

  • Page 10: Tip To The Period Of Implementation

    MICHAELIS m a s c h i n e n b a u Tip to the period of implementation The mechanical weed removal should be executed primarily before a new growing season, hence on frost-free grounds between October and March. Also wet ground conditions are well suited for getting optimal work results.

  • Page 11: Brush Change

    MICHAELIS m a s c h i n e n b a u Brush change Be sure to turn all aggregates before starting DANGER work on the brush and solve power plug from the unit. After changing a brush for tight fit of the screws must be checked and these may need to be tightened after one working hour.

  • Page 12: Brush Change - Quick-Change System

    MICHAELIS m a s c h i n e n b a u 10.2 Brush change Quick-change system – KM20-8 (available on request) With the enclosed wrench it is easy to replace the single tufts of the twist knot brush KM20-8. Put the wrench with the open-end under the sprung hexagon bolt (1) and lever towards the middle of the brush.

  • Page 13: Impact Protection Element

    MICHAELIS m a s c h i n e n b a u Impact protection element When working with no or not properly adjusted WARNING impact protection damage to property or personal injury can arise! CAUTION Mind a safety distance. It has a lot of adjustment options and has to be set according to the different demands.

  • Page 14: Safety Note

    MICHAELIS m a s c h i n e n b a u Safety notes Before using the machine for the first time the operator has to make himself intensive familiar with the machine and has to read the operation manual carefully. The respective guidelines of the responsible employers’...
  • Page 15 Spare Part List Michaelis Weed Control Maschine KM 20 T/TS – TO/TSO KM 20 TO / TSO with top link KM 20 T / TS with hydraulic cylinder Fabr.-Nr.: ……….-………. MICHAELIS m a s c h i n e n b a u Huxfelder Straße 8...
  • Page 17 MICHAELIS m a s c h i n e n b a u KM 20 T / TS Assembly 1 Main frame with hydraulic cylinder KM 20 T KM 20 TS Pos. Description Order-Nr. Order-Nr. Extension cylinder 32x20x350 SH-3220350 Extension cylinder 40x25x500...
  • Page 18 Assembly 1 Main frame with Hydraulic cylinder...
  • Page 19 MICHAELIS m a s c h i n e n b a u KM 20 TO / TSO Assembly 1 Main frame with Top link KM 20 TO KM 20 TSO Pos. Description Order-Nr. Oder-Nr. Extension cylinder 32x20x350 SH-3220350 Extension cylinder 40x25x500 SH-4025500 Socket head screw M10x20 DIN 912...
  • Page 20 Assembly 1 Main frame with Top link...
  • Page 21 MICHAELIS m a s c h i n e n b a u KM 20 T / TO / TS / TSO Assembly 2 Main adaptor KM 20 T KM 20 TS Description Pos. Order-Nr. Order-Nr. Hexagon bolt M16 DIN 934...
  • Page 22 Position Main adaptor at KM 20 T Position Main adaptor at KM 20 TS Assembly 2 Main adaptor...
  • Page 23 Weeding brush For front device-weed control machines Type KM 20T / TS / TB Flat steel brush Order-Nr.: KM20-5 Usable for: all front devices Suitable for: Removal extensive or deep-seated weed SWS-brush Order-Nr.: KM20-8 / spare braid KM20-81 Usable only for: KM20T, KM20TS, KM20TB Suitable for: - gentle remove weeds...
  • Page 28 MICHAELIS m a s c h i n e n b a u Spare Part List Electrical- and hydraulic system Weed Control Machine KM 20 T / TS with cylinder...
  • Page 29 MICHAELIS m a s c h i n e n b a u Spare Part List Maschine type: KM 20 T / TS with cylinder Assembly: Electrical system Conse- quantity description designation (file name) order number cutive no. 1 pc.
  • Page 30 MICHAELIS m a s c h i n e n b a u Assembly: Electrical system -X01 -2K1 bis -2K4...
  • Page 31 MICHAELIS m a s c h i n e n b a u Assembly: Electrical system -1F1 -2S1 -2S2...
  • Page 32 MICHAELIS m a s c h i n e n b a u Spare Part List Maschine type: KM 20 T / TS with cylinder Assembly: Hydraulic system Conse- designation cutive quantity description Order number KM 20 T KM 20 TS 1 pc.
  • Page 33 MICHAELIS m a s c h i n e n b a u Assembly: Hydraulic system...
  • Page 34 MICHAELIS m a s c h i n e n b a u Assembly: Hydraulic system...
  • Page 36 Michaelis Maschinenbau GmbH Huxfelder Str. 8 D-28879 Grasberg Tel.: 04208 8294 0 Kunde Anlagenbezeichnung KM 20 T/TS Zeichnungsnummer Ab Mai 2015 Kommission :8401-01 Hersteller (Firma) Pfad (ohne \EPLAN4\P) Projektname Fabrikat Type KM 20 T/TS Installationsort Projektverantwortlicher Teilebesonderheit Bearbeitet am: 08.Mai.2015 von (Krzel): MEA...
  • Page 37 Spalte X: eine automatisch erzeugte Seite wurde manuell nachbearbeitet ESSJ010D Seite Seitenbenennung Seitenzusatzfeld Datum Bearbeiter Deckblatt 10.Mai.2011 Inhalt 10.Mai.2011 12V Einspeisung 25.Sep.2012 12V Steuerung 25.Sep.2012 Datum Michaelis Inhalt Ab Mai 2015 Bearb. Maschinenbau GmbH KM 20 T/TS Gepr. 08.Mai.2015 Žnderung Datum Name Norm Urspr. Ers.f. Ers.d.
  • Page 38 Innenliegend -1G1 12V Batterie -XS1 12V Stecker Erforderliche Blau elektrische Ausrstung H07RN-F 1,5m 2x1mmý im Fahrzeug -12V /4.0 Datum Michaelis 12V Einspeisung Ab Mai 2015 Bearb. Maschinenbau GmbH KM 20 T/TS Gepr. 08.Mai.2015 Žnderung Datum Name Norm Urspr. Ers.f. Ers.d.
  • Page 39 H07RN-F 2x1mmý Abzweigkasten Hensel Blau H07RN-F 3,5m 5x1,5mmý -12V 3.8/ Brste Brste Brsten Brsten Einfahren Ausfahren Neigung Neigung Zurck Datum Michaelis 12V Steuerung Ab Mai 2015 Bearb. Maschinenbau GmbH KM 20 T/TS Gepr. 08.Mai.2015 Žnderung Datum Name Norm Urspr. Ers.f. Ers.d.
  • Page 40 MICHAELIS m a s c h i n e n b a u Spare Part List Electrical- and hydraulic system Weed Control Machine KM 20 TO / TSO with top link...
  • Page 41 MICHAELIS m a s c h i n e n b a u Spare Part List Maschine type: KM 20 TO / TSO with top link Assembly: Electrical system Lfd-Nr. Menge Bezeichnung Benennung Bestellnummer (Dateiname) 1 pc. 12V plug power supply 8A Hella 12/24V plug Hella 0007 589 021 -X01...
  • Page 42 MICHAELIS m a s c h i n e n b a u Assembly: Electrical system -X01 -1F1...
  • Page 43 MICHAELIS m a s c h i n e n b a u Assembly: Electrical system -2S1 -X02...
  • Page 44 MICHAELIS m a s c h i n e n b a u Spare Part List Maschine type: KM 20 TO / TSO with top link Assembly: Hydraulic system Conse- designation cutive quantity description Order number KM 20 TO KM 20 TSO 1 pc.
  • Page 45 MICHAELIS m a s c h i n e n b a u Assembly: Hydraulic system...
  • Page 47 Kunde Anlagenbezeichnung KM 20 TO/TSO Zeichnungsnummer Ab Mai 2015 Kommission Hersteller (Firma) Pfad (ohne \EPLAN4\P) Projektname Fabrikat Type KM 20 T/TS Installationsort Projektverantwortlicher Teilebesonderheit Bearbeitet am: 08.Mai.2015 von (Krzel): MEA Anzahl der Seiten : Datum Michaelis Deckblatt Ab Mai 2015 Bearb.
  • Page 48 Inhaltsverzeichnis Spalte X: eine automatisch erzeugte Seite wurde manuell nachbearbeitet ESSJ010D Seite Seitenbenennung Seitenzusatzfeld Datum Bearbeiter Deckblatt 10.Mai.2011 Inhalt 10.Mai.2011 12V Einspeisung 25.Sep.2012 12V Steuerung 25.Sep.2012 Datum Michaelis Inhalt Ab Mai 2015 Bearb. Maschinenbau GmbH KM 20 TO/TSO Gepr. 08.Mai.2015 Žnderung Datum Name...
  • Page 49 Bedienpult +12V /4.0 -1F1 T6,3 A Braun H07RN-F 1,5m 2x1mmý -XS1 8A Sicherung 12V Stecker Innenliegend -1G1 12V Batterie -XS1 12V Stecker Erforderliche Blau elektrische Ausrstung H07RN-F 1,5m 2x1mmý im Fahrzeug -12V /4.0 Datum Michaelis 12V Einspeisung Ab Mai 2015 Bearb.
  • Page 50 +12V 3.8/ Bedienpult -2S1 -2S1 I-O-I I-O-I Taster Taster Braun Grn/Gelb H07RN-F 3,5m 3x1mmý H07RN-F 3,5m 3x1mmý Abzweigkasten Braun Braun H07RN-F 2x1mmý H07RN-F 2x1mmý -2K1 -2K2 Hydraulikventil Hydraulikventil Blau Blau H07RN-F 2x1mmý H07RN-F 2x1mmý Abzweigkasten Blau H07RN-F 3,5m 3x1mmý -12V 3.8/ Umschaltung Sitzventil...
