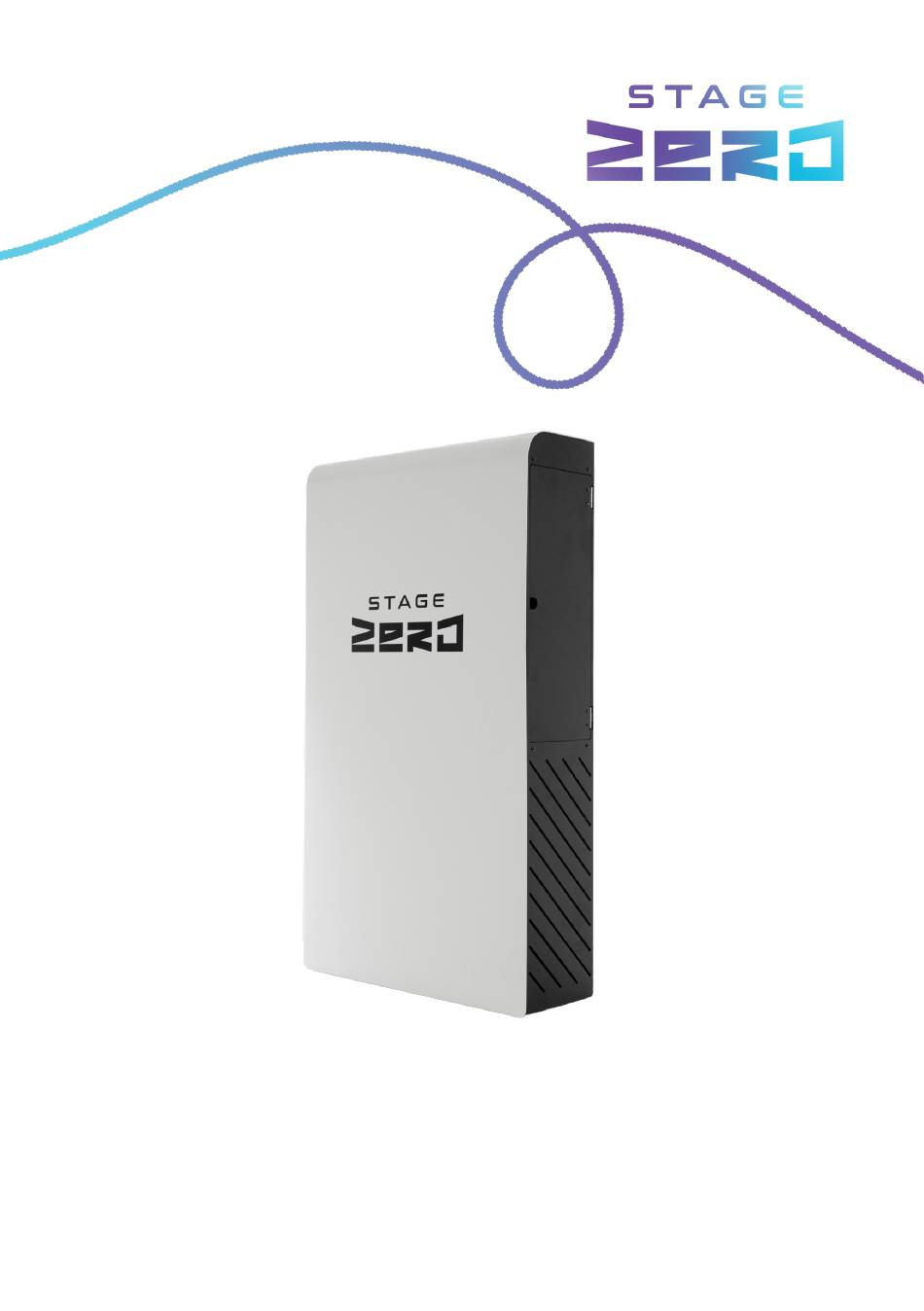

- Page 1 Volta 2K Portable Power Station User Manual Please read this manual before use and follow the instructions inside. Keep this manual for future reference.
-
Page 2: Table Of Contents
1. SAFETY PRECAUTIONS General Risk of Unsafe Operation Shock Hazard Warning Battery Safety General Safety Emergency Situations 1.6.1 Leaking Batteries 1.6.2 Fire 1.6.3 Wet Batteries Prohibitions 2. PRODUCT INFORMATION General Specifications Views Installation Product Specific Safety Precautions 3. OPERATING INSTRUCTIONS Operating Modes 4. -
Page 3: Safety Precautions
This Manual contains important instructions that should be followed during operation of the Stage Zero Volta 2K Unit. The information contained in this manual is subject to change by Stage Zero (Pty) Ltd (hereinafter referred to as Stage Zero) without prior notice. -
Page 4: General Safety
If the Facility (or any part thereof) has any indication of a liquid like substance leaking from it, avoid contact with the substance and contact Stage Zero immediately. If one is exposed to the leaked substance, immediately perform the actions described below: •... -
Page 5: Wet Batteries
2. Product Information 2.1 General The Volta 2K unit (hereinafter referred to as “Facility”) is a universal power supply that can be used to power your appliances/devices when the main electricity power fails (i.e. during load shedding). The changeover from grid to ‘back-up’ power occurs automatically and requires no input from the user. -
Page 6: Specifications
Selected Circuits Grid Volta 2K Main DB Sub DB Supply Non-selected Selected loads loads Figure 1: Solution Block Diagram 2.2 Specifications Product Type UPS Backup Power Capacity 2304Wh @ 90% DOD Rated Output Power 2000W Peak Power (3 sec) 4000W... -
Page 7: Views
Sub Distribution Board (if applicable) Fuse 125A DC (Internal – Battery to Inverter) Refer to technical datasheet for more detailed information regarding the Facility 2.3 Views Figure 2: Volta 2K Unit Dimensions Volta 2K UnitFuse Holder Sub Distrubution Board Main Distrubution Board Trunking... -
Page 8: Installation
(pilot light) UPS Output Indicator (pilot light) Figure 4: Volta 2K Unit Distribution Board (DB) 2.4 Installation The equipment is installed by an accredited Stage Zero contractor. The following equipment is installed: • Volta 2K unit • Sub DB with two AC circuits (preferably one for lights and another for plugs) •... -
Page 9: Operating Instructions
DO NOT • place any heat sources (e.g. open flame, heaters, etc.) in close proximity of the Product. DO NOT • remove the cover lids for any of the Product’s installed components • attempt to remove the face plate of the Product’s DB. DO NOT 3 Operating Instructions 3.1 Operating Modes... -
Page 10: Care And Maintenance
Do not use corrosive chemicals or aerosols to clean this device. • From time to time wipe the Volta 2K unit with a soft DRY cloth. Do not subject the unit to water OR use a wet cloth to wipe the unit. -
Page 11: How To Submit A Ticket
Stage Zero and shall not be furnished to any third party without the prior written consent of Stage Zero. -
Page 12: Disclaimer And Indemnification
The losses not caused by Stage Zero’s negligence. • Stage Zero shall not be liable to either Customer or any other third party under any applicable law, law of delict, in equity, restitution or otherwise for any kind of •...
