Summary of Contents for North Bayou G45

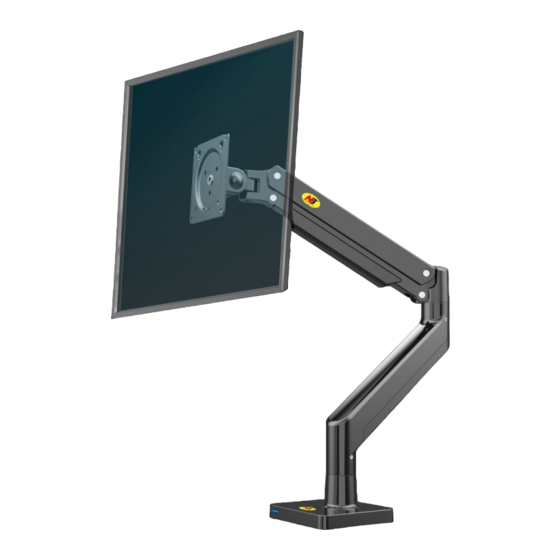

- Page 1 FITS 22"-40" Ergonomic desktop display mount INSTRUCTION Model-G45 HEAVY DUTY MONITOR MOUNT GAS-STRUT FLEXI MOUNT .DESKTOP...
- Page 2 Product Specifications 3/16 Caution 4-7/ 16 Parts list 8/16 9/16 Table Edge Installation 10/ 16 Grommet Installation 11/ 16 Power and Display Lines Installation Display Installation 12/ 16 13-14/16 Torque Adjustment 15/16 Rotation Restriction 15 /16 Display Adjustment 产品规格 3/16 注意事项...
- Page 3 Product Specifications 24.8"(630mm)max 85°/ 30° (0.8"-3.1")20~80mm 10~90mm 24.8"(630mm)max 3/16...
- Page 4 Cautions Pay attention when use 1. This product is suitable for 22"-40" LCD monitor/plasma screen, the max load can not exceed 15 kg / 33lbs 2. In order to ensure safe installation, the desktop used to install the product can bear the weight equivalent to 3 times the total load (stand, monitor and its accessories) 3.This product design contains sliding parts, for safety, please carefully .
- Page 5 1.본 제품은 22 "-40" 액정 모니터/플라즈마 모니터에 적용되며 최대 하중이 15kg/33 lbs를 초과해서는 안됩니다 2.안전한 장착을 위해 제품을 장착할 테이블은 전체 하중의 3배의 무게(지지브라켓, 모니터 및 그 부품) 를 견딜 수 있어야 합니다 3. 본 제품 디자인에는 슬라이드 부품이 포함되어 있어 안전을 위해 사용시 조심하십시오 4.장착...
- Page 6 или повреждения, вызванные самостоятельной модернизацией изделия, неправильной установкой, превышением максимально допустимой нагрузки, ненадлежащей эксплуатацией, износом или повреждением изделия в процессе использования. 8,Изделие содержит пневматическую пружину высокого давления, поэтому категорически запрещается нагревать и подвергать ударам во время установки и эксплуатации. Непрофессионалам строго запрещается самостоятельно разбирать пружину! Для утилизации изделия...
- Page 7 1.此產品適⽤於22"-40"液晶顯⽰器/等離⼦屏，最⼤承重不能超過15kg/33lbs 2..為確保安全安裝,⽤於安裝產品的桌⾯能承受相當於總荷載的3倍重量(⽀架、顯⽰器及其配件) 3.此產品設計包含滑動部件,為了安全,請⼩⼼使⽤ 4.安裝和電線布線的監控顯⽰器上的⽀架必須符合電技術法規 5.重要的是，電源和數據電纜必須設有防扭曲和壓縮或剪切 6.廠商不對由於不負重荷或意外造成桌⾯的損壞負責 7.廠商在此聲明,對於以下情況所造成的損毀或損傷不承擔任何法律責任:對產品⾃⾏改造,或安裝不當, 或安裝超過此產品所註明的最⼤承重,或使⽤不當,或因使⽤⽽造成此產品磨損或毀壞 8.本產品內含⾼壓氣彈簧，因此在安裝、使⽤過程中嚴禁⽕烤和敲擊，沒有專業⼈⼠的情況下， 嚴禁私⾃拆解！若產品報廢請寄回原廠或交於專業機構處理，為保證氣彈簧的性能，建議您對本產品 的⼿臂每⽉進⾏多次的全⾏程調節 7/16...
-
Page 8: Parts List
Parts List M8x38 16*8.2*1.5mm M4×12 M4×30 M6×12 Carriage Bolts Butterfly nut Locking plate Meter Ruler Allen key 拧紧 拧紧⽅向 拧松⽅向 螺丝⼑ 卷尺 调整 ⼿⼯ 六⾓扳⼿ 拧松 8/16... - Page 9 1.Table Edge Installation (4mm) (5mm) Ensure screws are secured firmly. .ﺗﺄﻛد ﻣن ﺗﺛﺑﯾت اﻟﺑراﻏﻲ ﺑﺈﺣﻛﺎم 20~80mm (5mm) (3mm) (5mm) (3mm) 9/16...
- Page 10 2.Grommet Installation Thread the bolt in about 15mm. .ﺗﺄﻛد ﻣن ﺗﺛﺑﯾت اﻟﺑراﻏﻲ ﺑﺈﺣﻛﺎم (3mm) (5mm) (3mm) 10/16...
- Page 11 3.Power and Display Lines Installation 11/16...
-
Page 12: Display Installation
4.Display Installation Ensure screws are secured firmly. .ﺗﺄﻛد ﻣن ﺗﺛﺑﯾت اﻟﺑراﻏﻲ ﺑﺈﺣﻛﺎم Ensure screws are secured firmly. .ﺗﺄﻛد ﻣن ﺗﺛﺑﯾت اﻟﺑراﻏﻲ ﺑﺈﺣﻛﺎم 12/16... -
Page 13: Torque Adjustment
5.Torque Adjustment "+ ": Torque increase direction shown (5mm) " - ": Torque decrease direction shown Note:Ensure display weightis within load range 1. If display can be hovered at any height after display installed. No adjustment needed. 2. If display lifts up automatically after installation , adjust as follows:Wind the set screw to"-" direction to reduce torque by using F,5mmAllen key , until display can be hovered at any desired position. - Page 14 Ситуация 1: после установки монитора на подставку, монитор можно зафиксировать на нужной высоте, регулировка не требуется. Ситуация 2: после установки монитора на поставку монитор может отскакивать. В это время, при помощи гаечного ключа F 5 мм, идущего в комплекте, повторно отрегулируйте в направлении...
-
Page 15: Display Adjustment
6.Rotation Restriction Proper usage directions Non-proper usage directions 7.Display Adjustment +85°/-30° Warning 15/16... - Page 16 CHINA EUROPE ASIA Installation Video Show Video Kunshan Hongjie Electronics Co., Ltd. 1050, Fu Chun Jiang Road, Economic Development Zone.Kunshan City, Jiangsu Province. China. 215333 N/W:6.61LBS(3.0KG) TEL: +86-512-57971777 FAX:+86-512-57970778 G/W:8.15LBS(3.7KG) E-Mail:info@nbavmount.com www.new-nb.com Carton Size(WxHxD) 426x156x109mm We reserve the right to modify or alter instructions. No modification or alteration without formal notice.
