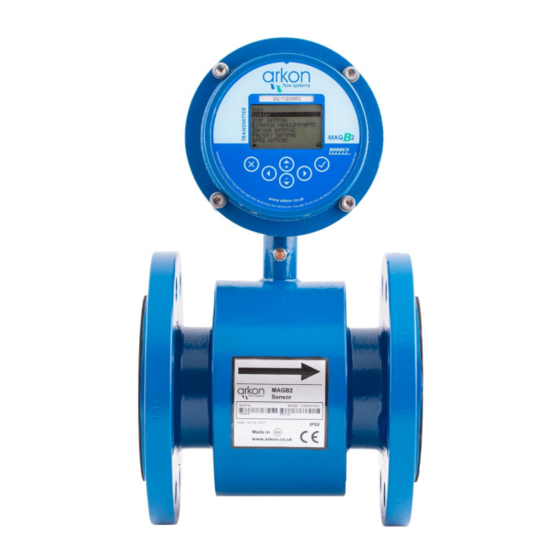

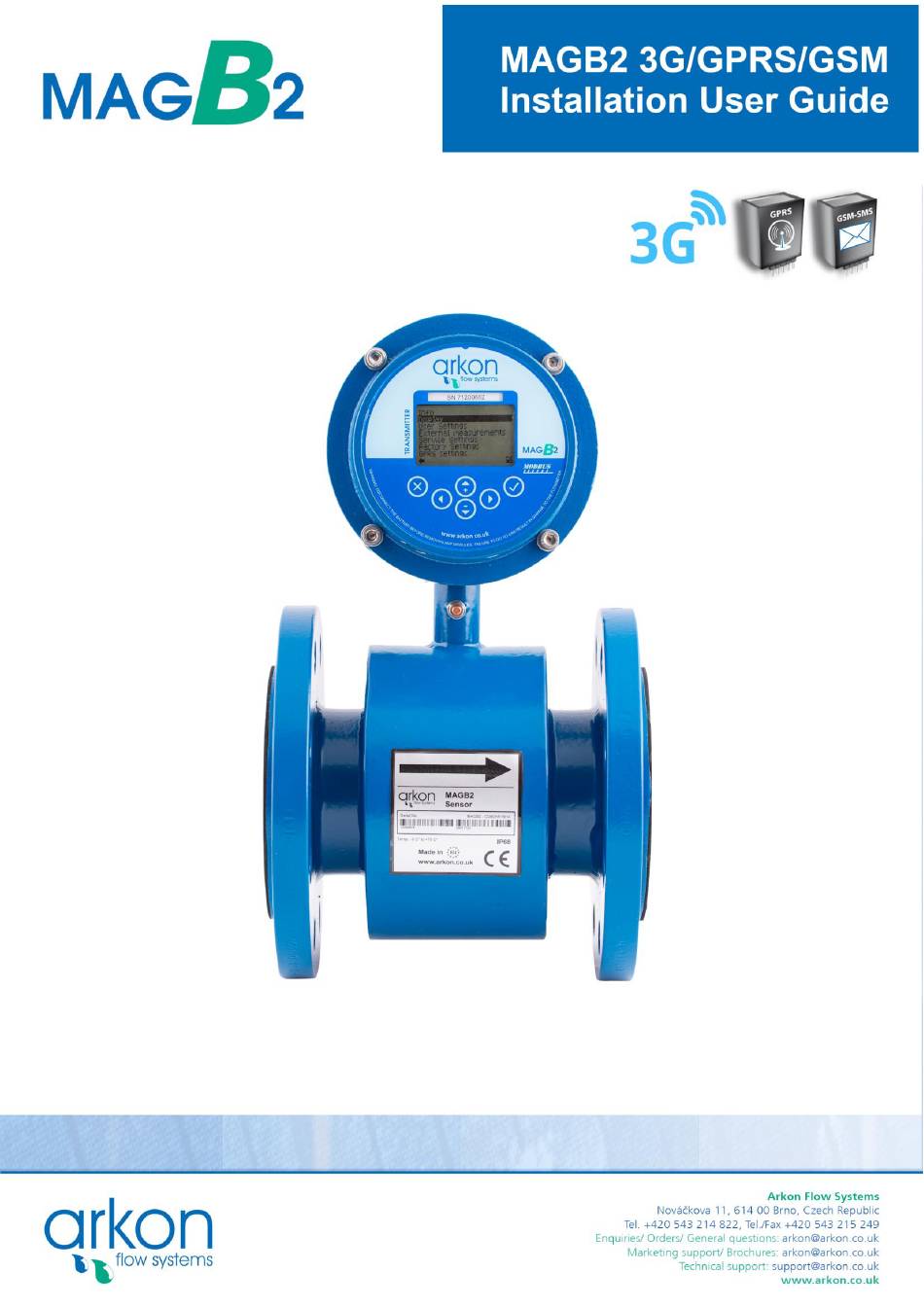

- Page 1 V1.2...
-
Page 2: Table Of Contents
Set Server IP address Set Server Port Set SIM Access Point Name (APN) Set SMS Phone Number 1-3 Set ID number for Arkon.Track Set SMS format NMX RFC, UV, Latitude and Longtitude 4.10 Send test GPRS message or SMS data... -
Page 3: Features
• The SMS is sent to a specific phone number or SMS server (up to 3 phone numbers) • The GPRS data are sent to a specific server (Arkon.Track) at a specific format using TCP port. • All settings are done via flowmeter keyboard... -
Page 4: System Information
SYSTEM INFORMATION 2.1 Supported Bands • Quad Band: 850/900/1800/1900 MHz 2.2 Environmental • Operating temperature: -20 °C +60 °C 2.3 SIM Card • 3.0V • STK 3.1 2.4 SMS • The SMS, is as defined within the GSM 850/900/1800/1900 digital mobile phone standard. •... -
Page 5: Installation
3 INSTALLATION Open the transmitter. Unplug the battery. Deactivate the SIM card PIN lock. Delete all SMS messages in SIM memory. Insert the SIM card to the 3G/GPRS/GSM Module, see picture 1. Install external antenna to the 3G/GPRS/GSM Module, see picture 2. ... -
Page 6: Antenna Installation
Antenna installation Install antenna according to pictures below. Picture 2. Antenna and GPRS battery installation 3.4 3G/GPRS/GSM module installation, Picture 3. Install 3G/GPRS/GSM Module into the transmitter V1.2... -
Page 7: Gprs/Gsm Module Batteries
3.5 3G/GPRS/GSM module batteries Picture 4. Install 3G/GPRS/GSM battery (the smaller one) Warning electrostatic sensitive device. Any connection or disconnection of any module has to be done with the battery switched off. V1.2... -
Page 8: Settings
4 SETTINGS Generally all the settings are done from GPRS settings menu using meter touch buttons. The GPRS settings menu is protected by user password. 4.1 Set Interval and Start hour In case of meter automatic SMS or data sending it is needed to set interval of the messages sending. Interval –... -
Page 9: Set Server Port
In real use it is practical to first delete all the numbers and symbols and then set your IP address from scratch. Arkon.Track test server IP address is 84.242.82.84. 4.4 Set Server Port In case of data packets are being used a server port needs to be set. The range of selectable port numbers is 0001-9999. -
Page 10: Set Id Number For Arkon.track
4.7 Set ID number for Arkon.Track For data packets use in Arkon.Track there needs to be an unique ID number of the station. In case you are using Arkon.Track the ID number will be assigned to you. In case you are using your own system you can use it as per your internal needs. -
Page 11: Sms And Data Formats
5 SMS AND DATA FORMATS 5.1 SMS Data format Example data for default style SMS data: UNITNO 01234567 2010.05.12 16:02 FLOWRATE 12.3 M3/H TOTALPOS 254.32 M3 TOTALNEG 12.58 M3 BATT 100% GSMBATT 76% means the unit number of MAGB2. ( UNITNO 01234567 shows time and date when the sample was taken. -
Page 12: Tcp Data Format
ERROR 000 * SAME AS THE SN OF THE METER 5.2 TCP Data format Example data: #STB:200099;L:117;TM:1004212241;A01:88;P01:15208588;P02:1.990000;P03:13600;P04:0;P05:0. 000000;P06:0.000000;P07:100;P08:0;5A# ID number for Arkon.Track 200099 - Length of sent data L:117 - Time stamp TM:1004212241 - GPRS module battery status in %... -
Page 13: Factory Delivered Default Settings
Service center number is set by the default profile of settings stored in the SIM card, which is usually pre-set by the mobile network operator. GPRS is preset to send the data to Arkon.Track ERROR CODES – General MAGB2 error code for GPRS module is 0008 (log. 1 in third position from the end) For more information see MAGB2 User guide.
