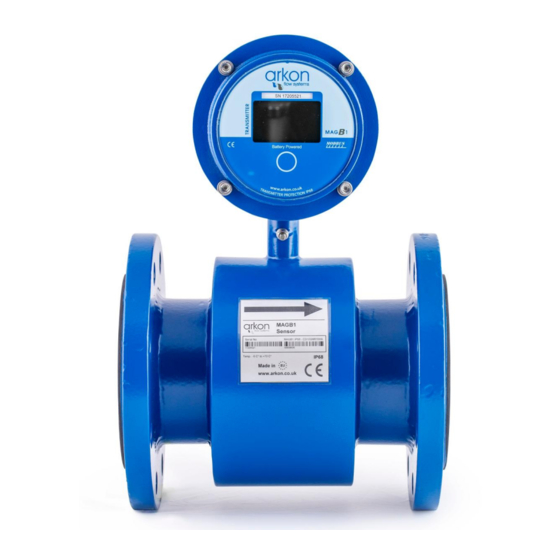

Summary of Contents for Arkon MAGB1

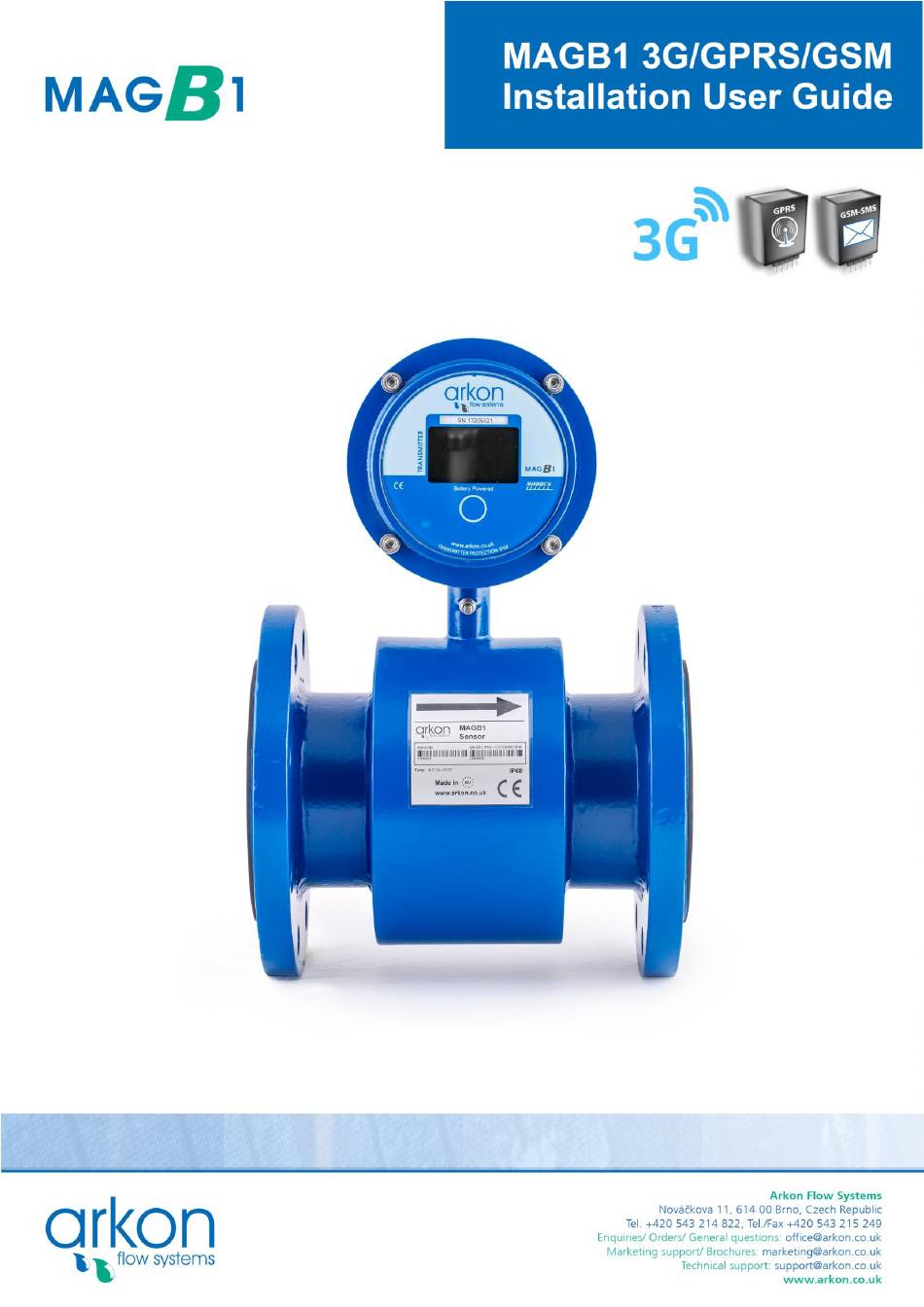

- Page 1 V1.3...
-
Page 2: Table Of Contents
SMS COMMANDS Set Phone Number Set GSM Service Center Address GPRS COMMANDS Set Access Point Name Set IP address Set Port number Set ID number for Arkon.Track COMMON COMMANDS Set Sending Interval Stop sending Start sending Set All Get All... -
Page 3: Features
1 FEATURES • The MAGB1 sends the flow rate and the total volume by 3G/GPRS/GSM data at specific intervals. • Specific interval of sending 3G/GPRS/GSM data is possible to setup, by sending an SMS. • The SMS is sent to a specific phone number or SMS server (up to 3 phone numbers) •... -
Page 4: System Information
SYSTEM INFORMATION 2.1 Supported Bands • Quad Band: 850/900/1800/1900 MHz 2.2 Environmental • Operating temperature: -20 °C +60 °C 2.3 SIM Card • 3.0V • STK 3.1 2.4 SMS • The SMS, is as defined within the GSM 850/900/1800/1900 digital mobile phone standard. •... -
Page 5: Installation
Plug-in the MAGB1 main battery 3.1 SIM interface Before inserting or replacing SIM card – MAGB1 transmitter must be switched off! Otherwise, MAGB1 transmitter, SIM card or GPRS module may get damaged! The 3G/GPRS/GSM module incorporates a SIM interface, which conforms to the GSM 11.11 and GSM 11.12 standards that are based on the ISO/IEC 7816 standard. -
Page 6: Antenna Installation
Antenna installation Install antenna according to pictures below. Picture 2. Antenna installation 3.4 3G/GPRS/GSM module installation, Picture 3. Install 3G/GPRS/GSM Module into the transmitter V1.3... -
Page 7: Gprs/Gsm Module Battery
3.5 3G/GPRS/GSM module battery Picture 4. Install 3G/GPRS/GSM battery (the smaller one) Picture 5. Plug-in the 3G/GPRS/GSM module battery Warning electrostatic sensitive device. Any connection or disconnection of any module has to be done with the battery switched off. V1.3... -
Page 8: Sms Commands
NUMBER NONE It is possible to set up to 3 phone numbers. 3G/GPRS/GSM module sends data from MAGB1 at specific intervals to all 3 phone numbers. It is possible to set up just one or two phone numbers. Syntax... -
Page 9: Gprs Commands
01234567 APN SET TO INTERNET.T- SET APN 01234567 INTERNET.T-MOBILE.CZ MOBILE.CZ internet.t-mobile.cz 5.2 Set IP address This command sets the GPRS IP address of Arkon.Track server. The 3G/GPRS/GSM module confirms settings immediately by SMS. This function works 15 minutes after plugging battery. Query: SET IP UNITNO XXX.XXX.XXX.XXX... -
Page 10: Set Id Number For Arkon.track
5.4 Set ID number for Arkon.Track This command sets the ID number for Arkon.Track server. The number needs to be unique. It needs to start with 2, has 6 digits. The 3G/GPRS/GSM module confirms settings immediately by SMS. This function works 15 minutes after plugging battery. This number is assigned during production! -
Page 11: Common Commands
This command stops the SMS/DATA sending by 3G/GPRS/GSM module. The 3G/GPRS/GSM module confirms settings immediately by SMS. This function works 15 minutes after plugging battery. Query: STOP SMS UNITNO means the unit number of MAGB1 where the query is send. UNITNO is used for authorization. UNITNO Syntax Response example... -
Page 12: Set All
Query: SET ALL UNITNO SMS,INTERVAL,PHONE1,PHONE2,PHONE3,APN,IP,PORT,ID means the unit number of MAGB1 where the query is sent, used for authorization. UNITNO Start or Stop sending (START | STOP) - not implemented yet, still needs to be sent separately 4digits interval of sending - means number of minutes for sending interval. - not implemented... -
Page 13: Set Date And Time
6.6 Set date and time This command sets the date and time of MAGB1, Needs to be sent as last command. This function works 15 minutes after plugging battery. Query: SET DATETIME UNITNO DATE TIME means the unit number of MAGB1 where the query is sent. -
Page 14: Sms And Data Formats
7.1 SMS Data format Example data: UNITNO 01234567 2010.05.12 16:02 FLOWRATE 12.3 M3/H TOTALPOS 254.32 M3 TOTALNEG 12.58 M3 BATT 100% GSMBATT 76% means the unit number of MAGB1. ( UNITNO 01234567 shows time and date when the sample was taken. ( DATE AND TIME 2010.05.12 16:02... -
Page 15: Examples
SET DATETIME 17200521 2020-08-25 11:50 Wait for confirmation SMS: DATETIME 2020-08-25 11:50 5. Wait until the 15 minutes setting interval ends. Now your module will send MAGB1 flowrate and totaliters by SMS messages to phone number +420739474929 each 4 hours. 8.2 GPRS setting example A MAGB1 flowmeter serial number 17200521, data receiving server 84.242.82.84 (Arkon.Track), port... - Page 16 SET DATETIME 17200521 2020-08-25 11:50 Wait for confirmation SMS: DATETIME 2020-08-25 11:50 5. Wait until the 15 minutes setting interval ends. Now your module will send MAGB1 flowrate and totaliters by TCP channel to port 5979 at 84.242.82.84 each 1 day. V1.3...
-
Page 17: Troubleshooting
SMS messages are saved in non-volatile memory. 3. The time value in MAGB1 is deleted with every battery unplugging. This is normal behavior of MAGB1, the time value is saved every hour into non-volatile memory. With every battery unplugging it is recommended to set time again. -
Page 18: Factory Delivered Default Settings
10 FACTORY DELIVERED DEFAULT SETTINGS 10.1 Default settings of 3G/GPRS/GSM module • None of the three possible phone numbers is set. • Sending is stopped. • Sending interval is set to 720 minutes (12 hours). • Service center number is set by the default profile of settings stored in the SIM card, which is usually pre-set by the mobile network operator.
