esera automation ESI 400 User Manual

esera automation ESI 400 User Manual

4-channel switch input, 4-way switch input for 1-wire bus

Advertisement

Quick Links

Art. No. 11235
 4 inputs for querying switching contacts,
reed contacts or other digital
potential-free switches
 LED indicators for power and status change
of the inputs
 Universal power supply 5 -12VDC
 Compact dimensions for installation in switch boxes
 Connection via screw terminals
 Simple software-sided integration
 Standard 1-Wire interface DS2408 Commands
 Housing colour Green (RAL 6020)
1

Introduction

Before you start the installation of the ESI400 module (in the following only ESI400) and put the device into
operation, please read these installation and operating instructions to the end, especially the section of the
ESI stands for ESERA Switch Input.
2

Product Description

With the ESI 400 the status of 4 switches, reed contacts or all kinds of potential-free digital sensors can be
queried. No external voltage is required for the inputs.
The status LED on the upper side of the module signals the power supply and the status change of the inputs.
When input voltage is applied, the LED flashes briefly as confirmation of the status change.
The ESI 400 is equipped with hardware and software filters to reliably interrogate all types of mechanical switches
without flickering. The delay of the inputs is about 40ms.
The inputs are electrically connected to the 1-Wire network. Due to the complex filter technology, even long
connection cables between the module and the sensors are possible without disturbing influences on the inputs
and the 1-Wire bus. The working voltage of the digital inputs is approx. 5V.
The ESI 400 has a universal supply voltage input with 5V to 12V voltage.
We recommend the use of one of our 1-Wire hub modules.
All rights reserved. Reproduction as well as electronic duplication of this user guide, complete or in part, requires the written consent of
ESERA GmbH. Errors and technical modification subject to change. ESERA GmbH, ESERA-Automation 2020

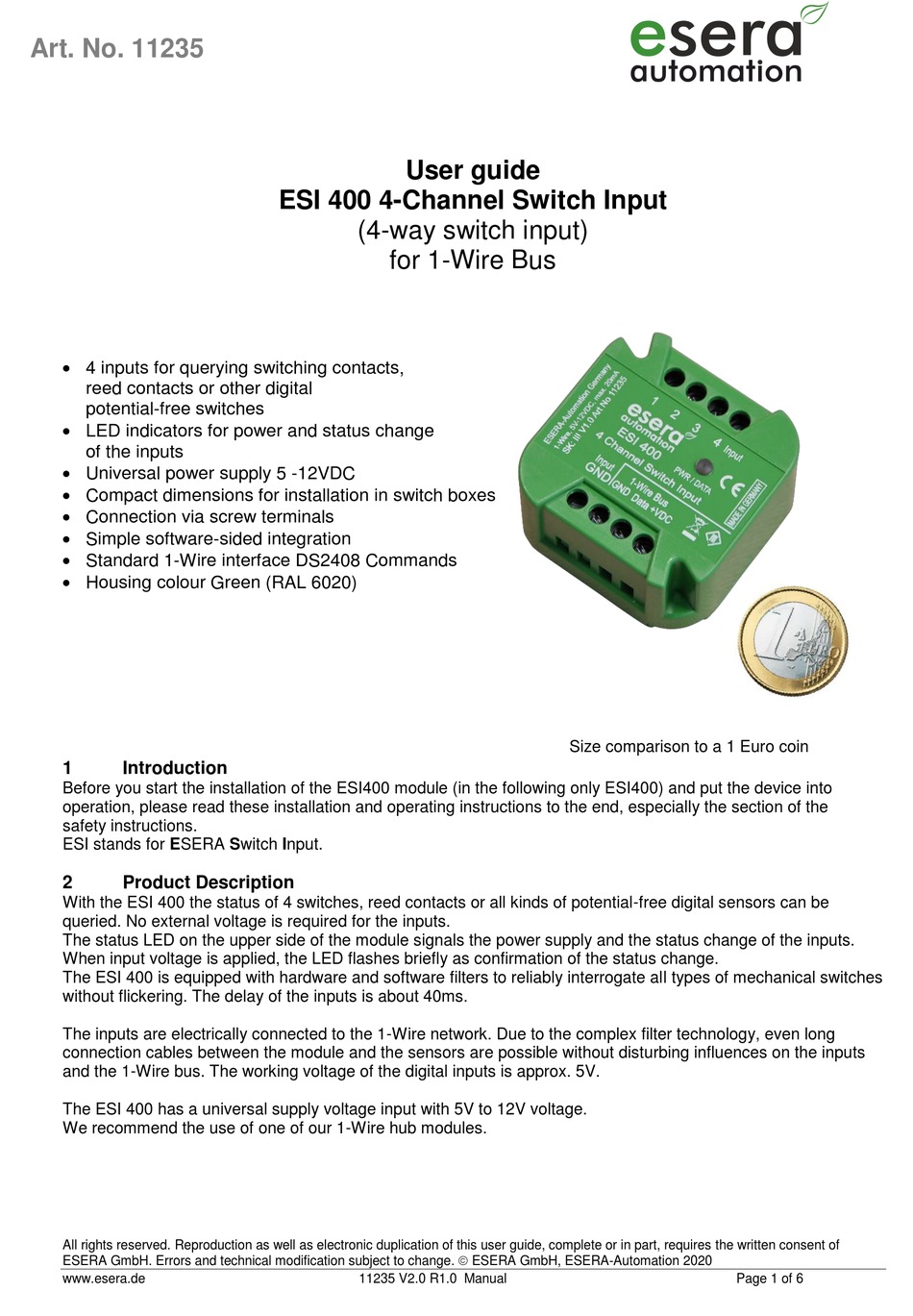

www.esera.de
User guide
ESI 400 4-Channel Switch Input
(4-way switch input)
for 1-Wire Bus
11235 V2.0 R1.0 Manual
Size comparison to a 1 Euro coin
Page 1 of 6
