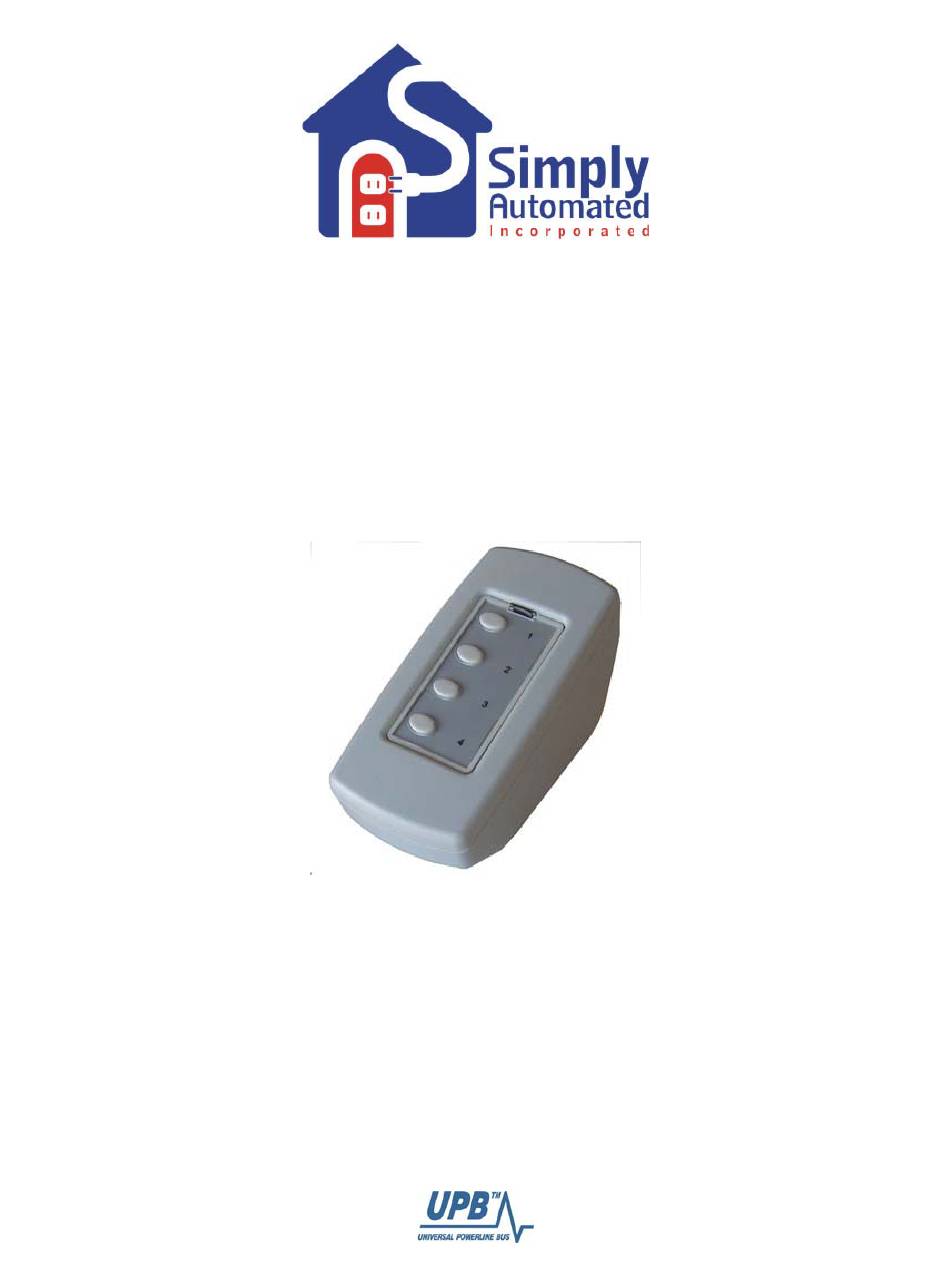

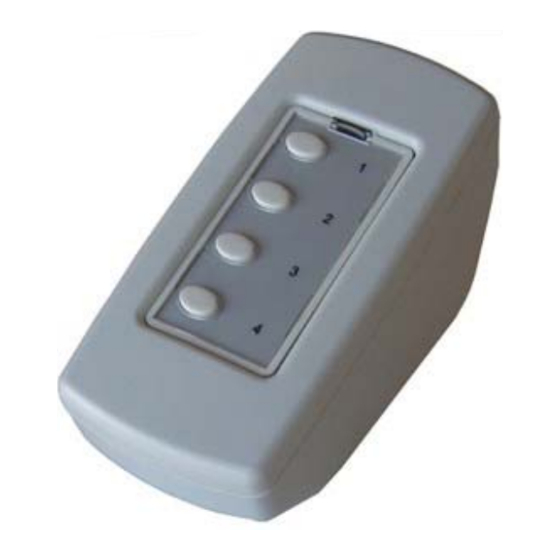

- Page 1 Getting Started Tabletop Controller with 4-Buttons Model US2TP11 Simply Automated Pre-Configured SimplySmart Series Utilizes SimplySmart technology to make installation a breeze. No computer programming required! Simple-n-easy, ready to use lighting control.
- Page 2 Getting Started Tabletop Controller with 4-Buttons Model US2TP11 Simply Automated Pre-Configured SimplySmart Series Utilizes SimplySmart technology to make installation a breeze. No computer programming required! Simple-n-easy, ready to use lighting control. IMPORTANT SAFETY INSTRUCTIONS When using electrical products, basic safety precautions should always be followed, including the following: READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
- Page 3 Buttons 3 and 4. Button 3 is programmed from the factory to turn on all dimmers at a 100% dim level. Button 4 is programmed from the factory to turn off all three dimmers. We do not recommend editing buttons 3 or 4. Simply Automated, Incorporated 6108 Avenida Encinas, Suite B, Carlsbad, CA 92011 USA Technical Support: www.simply-automated.com...
- Page 4 Button 2. To add a dimmer to button 2, follow the instructions outlined above in Section 3.c. for button 1, noting you will need to press (tap) button 2 seven times to program the new scene. Simply Automated, Incorporated 6108 Avenida Encinas, Suite B, Carlsbad, CA 92011 USA Technical Support: www.simply-automated.com...
- Page 5 Place the dimmer in the program mode (quickly tap the top rocker five times). Go back to the Deluxe Dimmer, press the button you wish to re-program seven times. Simply Automated, Incorporated 6108 Avenida Encinas, Suite B, Carlsbad, CA 92011 USA Technical Support: www.simply-automated.com...
- Page 6 Dimmer or Lamp Starter Kit, add the other starter kit, (up to) 2 additional standard dimmers, Deluxe Dimmer with 4-buttons, (up to 2) additional lamp modules or Tabletop Controller with 4-buttons. One touch button convenience to turn ON/OFF up to ten Simply Automated dimmers or lamp modules – custom scenes you create! Dimmer Starter Kit Includes 2 dimmers and deluxe dimmer with 4-button scene controller (PN: DKIT-01).
- Page 7 ID number). You can find the ID number on the front of each dimmer. For the Dimmer Starter Kit (DKIT-01), the single rocker dimmers have ID #1 and #2, the Deluxe Dimmer with 4-buttons has ID #3. Simply Automated, Incorporated 6108 Avenida Encinas, Suite B, Carlsbad, CA 92011 USA Technical Support: www.simply-automated.com...
- Page 8 Network ID #: The default Network ID #setting for the Pre-Configured Series is 250. This information is needed when using the Scheduler-Timer. Section 6: Simply Automated Custom Expansion Series Powerful Custom Expansion Capability – up to 250 devices – using your PC and UPStart software! Devices include single rocker dimmers, deluxe dimmers with different faceplates (up to 8 buttons), lamp or appliance modules, tabletop pedestal with 8 buttons, wall receptacle, fixture relay, fixture dimmer or scheduler-timer.
