Quick Links
Packing List

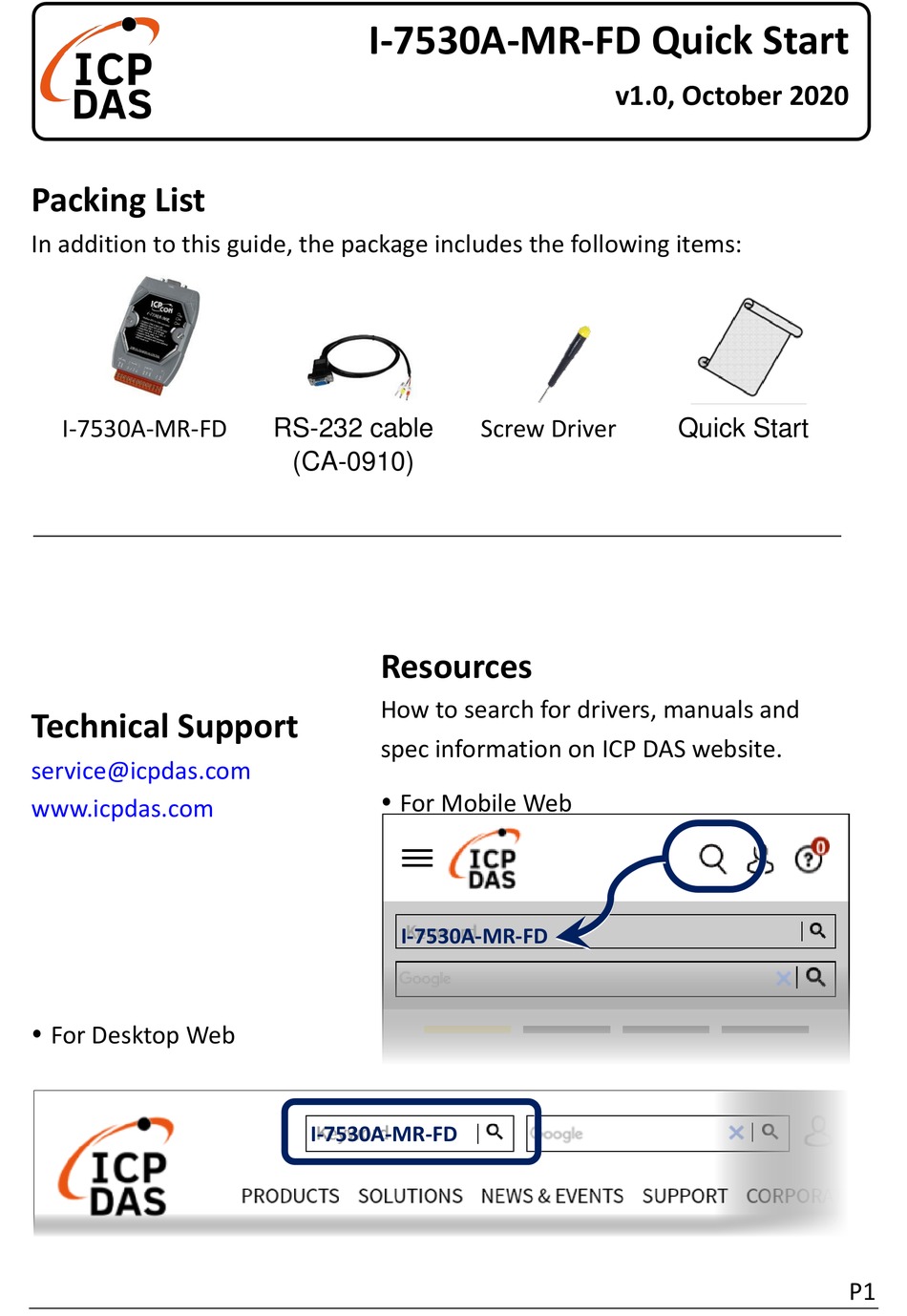

In addition to this guide, the package includes the following items:
1.
I-7530A-MR-FD
Technical Support
service@icpdas.com
www.icpdas.com
For Desktop Web
I-7530A-MR-FD Quick Start
RS-232 cable
(CA-0910)
Resources
How to search for drivers, manuals and
spec information on ICP DAS website.
For Mobile Web
I-7530A-MR-FD
I-7530A-MR-FD
v1.0, October 2020
Screw Driver
Quick Start
P1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ICP DAS USA I-7530A-MR-FD
Summary of Contents for ICP DAS USA I-7530A-MR-FD
- Page 1 I-7530A-MR-FD Quick Start v1.0, October 2020 Packing List In addition to this guide, the package includes the following items: I-7530A-MR-FD Screw Driver RS-232 cable Quick Start (CA-0910) Resources How to search for drivers, manuals and Technical Support spec information on ICP DAS website.
-
Page 2: Hardware Installation
1.Introduction This manual introduces the user to the methods used to implement the I-7530A-MR-FD module into their applications in a quick and easy way. This only provides with the basic instructions. For more detailed information, please refer to the I-7530A-MR-FD user manual located on the ICP DAS CD-ROM or download it from the ICP DAS web site: https://www.icpdas.com/en/product/I-7530A-MR-FD... - Page 3 Before you continue, if you have changed the settings from default then it is necessary to open the cover for each I-7530A-MR-FD and re-configure their JP3 jumpers to enable them again, as shown in below figure. However if the I-7530A-MR-FD’s still have their default settings then it is not necessary to open and reset them because the default configuration is enabled.
- Page 4 .htm 3.I-7530A-MR-FD Parameter Configuration Before starting the I-7530A-MR-FD converter tests, users need to configure the RS-232/485/422, Modbus and CAN parameters via the UART2CAN Utility tool. The details of this procedure are shown below. Step1: Turn off the DC power connected with these two I-7530A-MR –FD modules.
- Page 5 Step5: Click the “Connect” button. If the connection is successful, the UART2CAN Utility will show the communication information of the I-7530A-MR-FD_A module, as shown in the following figure. Step6: Set the communication mode of the I-7530A-MR-FD_A. Here, use Modbus Slave mode for example. Step7: In order to match the RS-232 parameters of the PC COM port,...
- Page 6 Step11: Repeat Step 1 ~ Step 10 to configure the I-7530A-MR-FD_B converter with the same configurations as the I-7530A-MR-FD_A. 4.Testing the I-7530A-MR-FDs Step1: Turn off the DC power connected with these two I-7530A-MR-FD modules. Step2: Set the Init/Normal switches on the back of the I-7530A-MR-FD_A and I-7530A-MR-FD_B to the “Normal”...
- Page 7 Step5: Check the “Use CAN Message” checkbox and key-in the correct data in the “Modbus Command” and “CAN Message” fields of the Utility_A. Click the “Send” button. Then, the Utility_A will automatically transfer this CAN message to the Modbus RTU command and send it out through the PC RS-232 COM1 port.
- Page 8 ④ ① ② ③ ○ Utility A ○ ○ ○ ○ Utility B...
