- Page 1 Assembly Manual Flatbed Garden Cart Item No. FW4824-SV...
- Page 2 Step 1: Mounting the Swivel Wheel (size 3.50-4, Part 9) onto the Flatbed (Part 1), using 8pc Bolts (Part12), 8pc Flat Washers (Part 10) and 8pc Lock Nut (Part 11). After Assembly Step 2: Mounting the Fixed Wheel Bracket (Part 4) onto the Flatbed (Part 1), using 2pc Flat Washers (Part 5), 2pc Lock Nuts (Part 6).
- Page 3 Step 3: Sliding the 2 Air Wheels (size 4.00-8, Part 3) onto the Axle of the Fixed Wheel Bracket, lock with 2pc Flat Washer (Part 7), 2pc Cotter Pin (Part 8) After Assembly Step 4: Attach the Handle (Part 2) onto the Flatbed (Part 1), using 2pc Flat Washer (Part 10), 2 Bolt (Part 12) After Assembly Step 4: Put the Liner onto the Flatbed and flatten it.

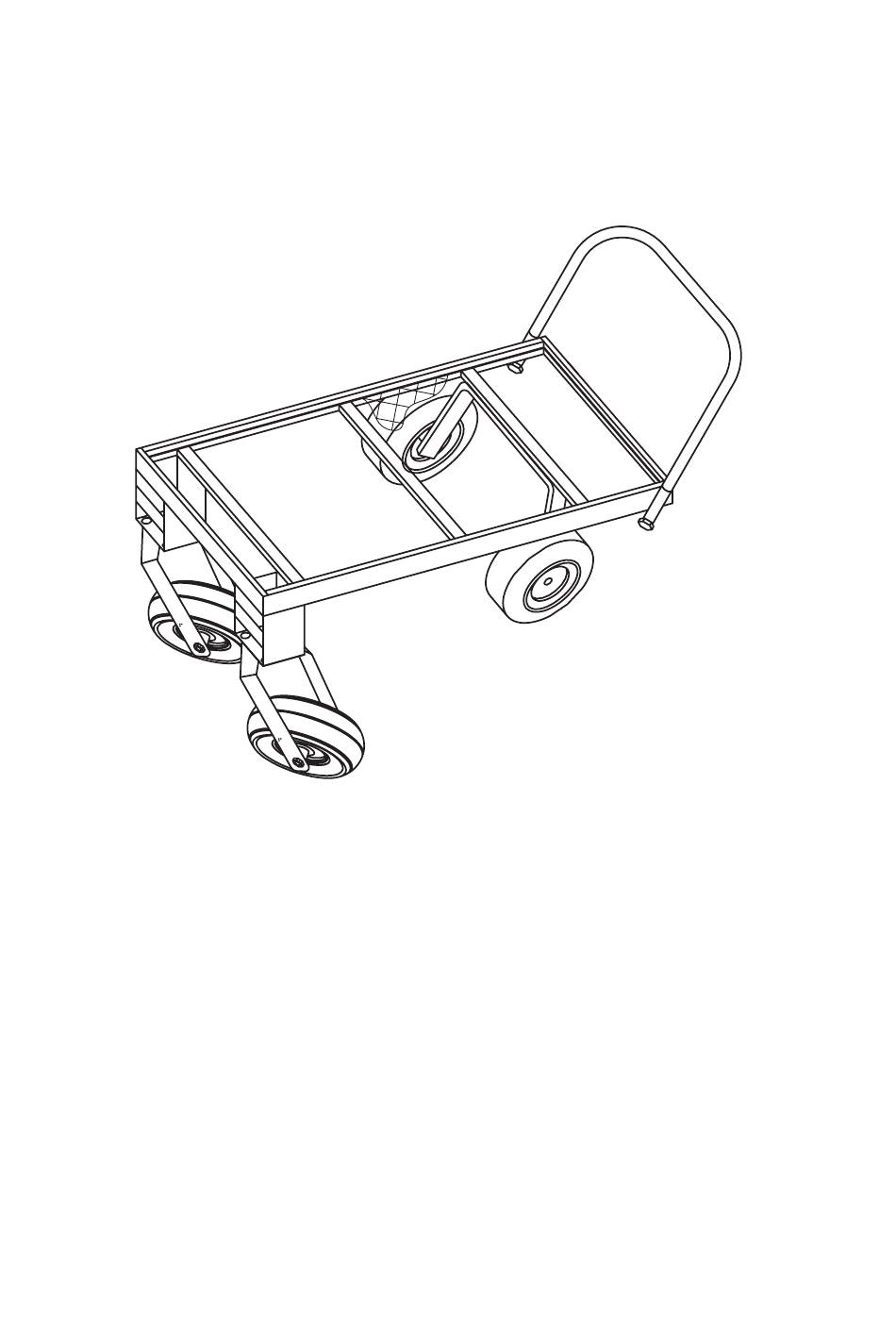

- Page 4 Exploded Drawing of the Cart...
- Page 5 Part List Flatbed Handle Air Wheel (4.00-8) Fixed Wheel Bracket 1PC Flat Washer M14 2PC Lock Nut M14 Flat Washer M16 2PC Cotter Pin Swivel Wheel (3.50-4) 2PC Flat Washer M10 10PC Lock Nut M10 8PC Bolt M10×25 10PC 13. Liner...
