Sonny's Buff-n-Dry TOP Series Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
™

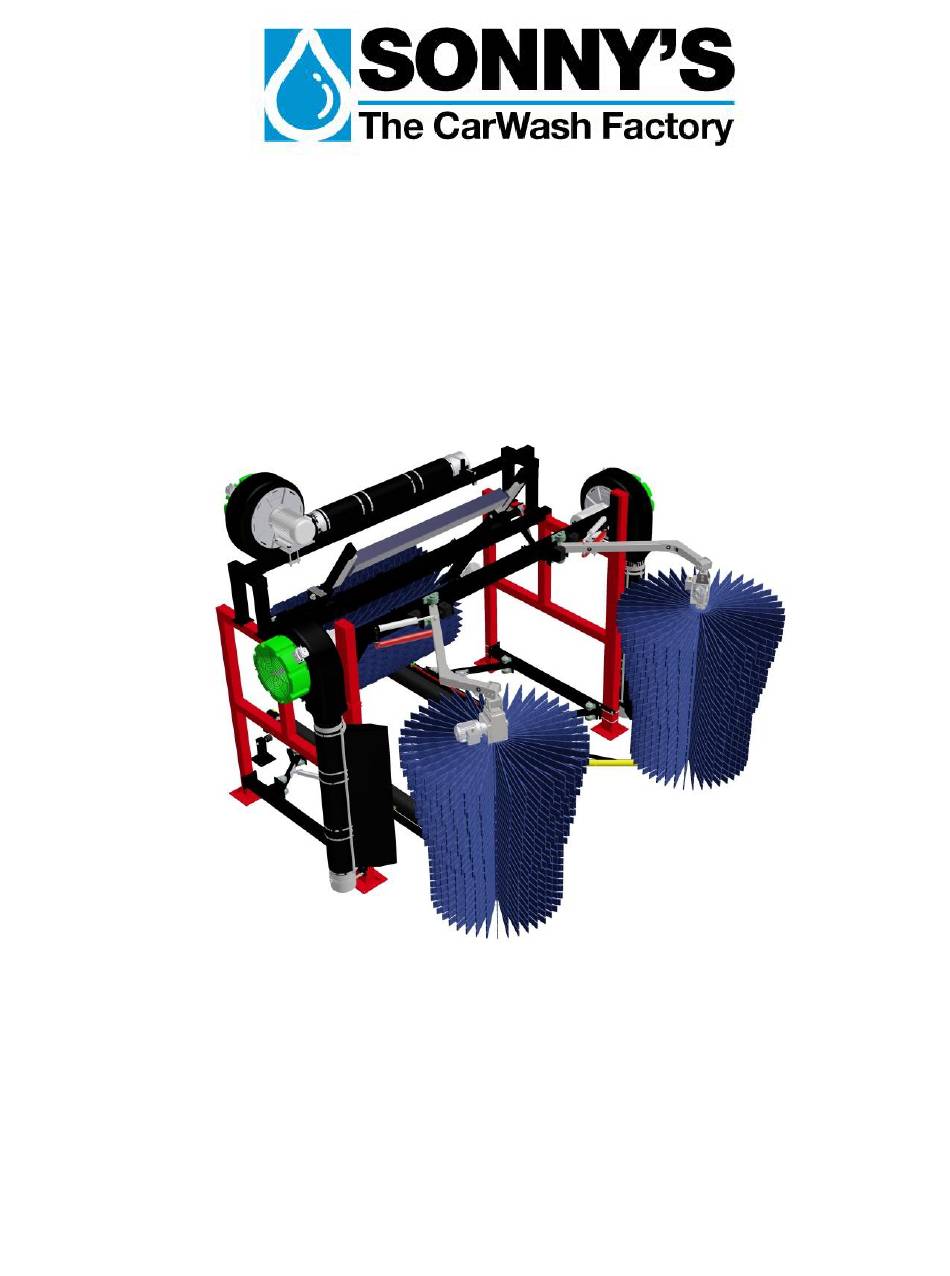

Buff-n-Dry
Owner's Manual
Sonny's Enterprises, Inc.
5605 Hiatus Road
Tamarac, Florida 33321
16v1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Buff-n-Dry TOP Series and is the answer not in the manual?

Questions and answers

Related Manuals for Sonny's Buff-n-Dry TOP Series

Summary of Contents for Sonny's Buff-n-Dry TOP Series

  • Page 1 ™ Buff-n-Dry Owner’s Manual Sonny's Enterprises, Inc. 5605 Hiatus Road Tamarac, Florida 33321 16v1...

  • Page 2: Table Of Contents

    Equipment Program - Manuals Buff-n-Dry™ / TOP Series *Table of Contents* WARNING *SAFETY REQUIREMENTS* WARNING ..............3 *INTRODUCTION* ........................5 Product Specifications ....................... 6 *INSTALLATION* ........................8 Utilities Requirements ....................... 8 Dimensions ..........................9 Adjustments and Testing ......................19 *GENERAL OPERATION* ......................21 *PREVENTIVE MAINTENANCE* ....................

  • Page 3: Warning *Safety Requirements* Warning

    Equipment Program - Manuals Buff-n-Dry™ / TOP Series WARNING *SAFETY REQUIREMENTS* WARNING 1. All employees must be thoroughly trained in safe operation and standard maintenance practices. All employees must review this entire manual monthly. 2. Do not enter the wash tunnel when the equipment is operating. Death or dismemberment may occur.
  • Page 4 Equipment Program - Manuals Buff-n-Dry™ / TOP Series 13. Store all cleaning and washing solutions and oils in a well-ventilated area. Clean up fluid spills immediately to prevent hazardous safety conditions. Be certain to follow all safety procedures on SDS Sheets for each chemical product used. 14.

  • Page 5: Introduction

    Equipment Program - Manuals Buff-n-Dry™ / TOP Series *INTRODUCTION* This Owner’s Manual contains information that is vital to the successful installation, operation and maintenance of your SONNY’S vehicle washing equipment. Please read, and understand, the full contents of this manual before installation and operation of the equipment.

  • Page 6: Product Specifications

    Equipment Program - Manuals Buff-n-Dry™ / TOP Series Product Specifications  Designed to occupy 241” of tunnel length and 144” width  4” x 4” aluminum frame and legs for stability and durability  Pivot bearing is solid UHMW and with a grease fitting to increase smoothness of operation ...
  • Page 7 Equipment Program - Manuals Buff-n-Dry™ / TOP Series © SONNY’S The CarWash Factory SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 7 of 25 duplicated without prior written consent. Content, prices and availability subject to change without notice. 6.7.2016 OwnersManual_Dryer_Buff-n-Dry_16v1...

  • Page 8: Installation

    Equipment Program - Manuals Buff-n-Dry™ / TOP Series *INSTALLATION* Utilities Requirements UTILITIES INTERCONNECTION AND THE MATERIALS REQUIRED FOR INTERCONNECTION TO SONNY’S EQUIPMENT ARE THE RESPONSIBILITY OF THE CUSTOMER ! PERFORM ALL TRADES WORK TO ALL APPLICABLE LOCAL AND NATIONAL CODES ! Water ...

  • Page 9: Dimensions

    Equipment Program - Manuals Buff-n-Dry™ / TOP Series Dimensions Figure #1 © SONNY’S The CarWash Factory SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 9 of 25 duplicated without prior written consent. Content, prices and availability subject to change without notice. 6.7.2016 OwnersManual_Dryer_Buff-n-Dry_16v1...
  • Page 10 Equipment Program - Manuals Buff-n-Dry™ / TOP Series Figure #2 © SONNY’S The CarWash Factory SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 10 of 25 duplicated without prior written consent. Content, prices and availability subject to change without notice. 6.7.2016 OwnersManual_Dryer_Buff-n-Dry_16v1...
  • Page 11 Equipment Program - Manuals Buff-n-Dry™ / TOP Series Figure #3 © SONNY’S The CarWash Factory SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 11 of 25 duplicated without prior written consent. Content, prices and availability subject to change without notice. 6.7.2016 OwnersManual_Dryer_Buff-n-Dry_16v1...
  • Page 12 Equipment Program - Manuals Buff-n-Dry™ / TOP Series Figure #4 © SONNY’S The CarWash Factory SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 12 of 25 duplicated without prior written consent. Content, prices and availability subject to change without notice. 6.7.2016 OwnersManual_Dryer_Buff-n-Dry_16v1...
  • Page 13 Equipment Program - Manuals Buff-n-Dry™ / TOP Series Figure #5 © SONNY’S The CarWash Factory SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 13 of 25 duplicated without prior written consent. Content, prices and availability subject to change without notice. 6.7.2016 OwnersManual_Dryer_Buff-n-Dry_16v1...
  • Page 14 Equipment Program - Manuals Buff-n-Dry™ / TOP Series Figure #6 © SONNY’S The CarWash Factory SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 14 of 25 duplicated without prior written consent. Content, prices and availability subject to change without notice. 6.7.2016 OwnersManual_Dryer_Buff-n-Dry_16v1...
  • Page 15 Equipment Program - Manuals Buff-n-Dry™ / TOP Series Figure #7 © SONNY’S The CarWash Factory SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 15 of 25 duplicated without prior written consent. Content, prices and availability subject to change without notice. 6.7.2016 OwnersManual_Dryer_Buff-n-Dry_16v1...
  • Page 16 Equipment Program - Manuals Buff-n-Dry™ / TOP Series Figure #8 © SONNY’S The CarWash Factory SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 16 of 25 duplicated without prior written consent. Content, prices and availability subject to change without notice. 6.7.2016 OwnersManual_Dryer_Buff-n-Dry_16v1...
  • Page 17 (with the brush counterweight toward the entrance of the car wash). 5. With the interconnection hardware provided by SONNY'S (boxed and attached to the assembly frame) join the legs, cross beams and gussets to the frame "finger tight".
  • Page 18 Equipment Program - Manuals Buff-n-Dry™ / TOP Series 8. Place an anchor bolt in each corner. Tighten all hardware. 9. Check each leg for plum and the frame for level, and then install the rest of the anchor bolts in each leg of the frame. 10.

  • Page 19: Adjustments And Testing

    Equipment Program - Manuals Buff-n-Dry™ / TOP Series Adjustments and Testing Adjust the Cleaning Pressure of the Top Brush Ensure the air solenoid is manually put in the wash position so there is no air pressure applied to the retract cylinder. Adjust the position of the counterweight so that when the counterweight is released the brush slowly moves downward.
  • Page 20 Equipment Program - Manuals Buff-n-Dry™ / TOP Series Two Solenoid valves, one for each retract, are recommended for 80 or more cars per hour. To adjust the operation of the brushes without air pressure you may adjust the position of the pillow block bearings.

  • Page 21: General Operation

    Equipment Program - Manuals Buff-n-Dry™ / TOP Series *GENERAL OPERATION* The brushes on the unit need to spin anytime the conveyor is in operation. Top Brush Operation Brush rotation starts and stops with a signal from the Customer supplied Controller system to the Customer's hydraulic power pack which drives the hydraulic motors on the brushes.
  • Page 22 Equipment Program - Manuals Buff-n-Dry™ / TOP Series As the rear of the vehicle approaches the brushes they individually gear themselves around the rear fenders so that each brush dries one half of the vehicle rear vertical surfaces. As the vehicle departs the wraparound brush area the brushes are fully extended toward the center of the wash tunnel ready to accept another vehicle.

  • Page 23: Preventive Maintenance

    Equipment Program - Manuals Buff-n-Dry™ / TOP Series *PREVENTIVE MAINTENANCE* DAILY 1. Check all hydraulic, air fittings for leaks. Repair, or replace, as needed. 2. Check brush for proper operation, listening for any unusual noises from the equipment. 3. Inspect brush cloth for cuts, grease, or oil. Remove and repair, or replace, any cloth panel if any of these conditions are found.

  • Page 24: Warranty

    Equipment Program - Manuals Buff-n-Dry™ / TOP Series *WARRANTY* SONNY’S ENTERPRISES, INC. FACTORY LIMITED LIFETIME WARRANTY Equipment manufactured by SONNY’S ENTERPRISES, INC. is warranted to be free from defect in material and workmanship. Welded metal framework and other non-moving, non-wearable fabricated metal components manufactured by SONNY’S are warranted for the life of the equipment to the original purchaser.

  • Page 25: Customer Service

    Equipment Program - Manuals Buff-n-Dry™ / TOP Series *CUSTOMER SERVICE* Please contact SONNY’S Equipment Department for installation and/or operational questions regarding this piece of equipment. Please refer to the Parts Catalog and contact SONNY’S Customer Service Order Entry Department for any replacement parts for this piece of equipment. You can also visit the web at www.SonnysDirect.com.
