Summary of Contents for Blaupunkt FS 04

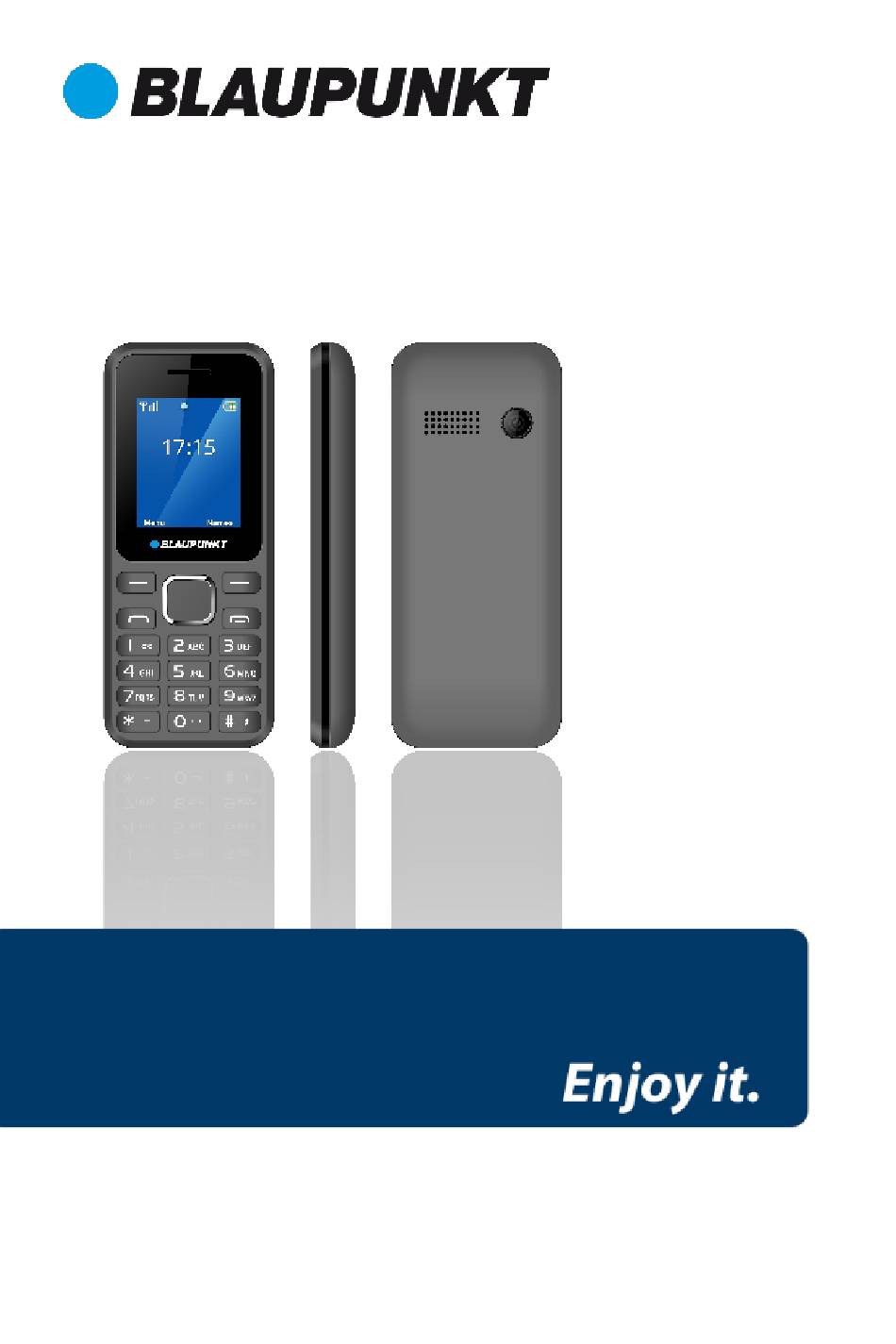

  • Page 1 User's Guide Mobile phone FS 04...

  • Page 2: Table Of Contents

    Table of contents General Information ..............1 1. Safety ..................1 2. Product specifications ............7 3. About the keys ..............8 4. Getting Started ..............9 4.1. Insert a SIM card ............9 4.2. Insert a memory card ..........9 4.3.
  • Page 3 10. Camera ................22 11. Multimedia ............... 22 11.1. Image viewer ............22 11.2. Video recorder ............23 11.3. Video player ............23 11.4. Music player ............24 11.5. Sound recorder ............24 11.6. FM radio ..............25 12. Organizer ................25 12.1.

  • Page 4: General Information

    General Information Thank you for choosing our device. This manual contains general information, in addition to the information required for operation. Note: • For your safety, use only accessories approved by the manufacturer. Use of unapproved accessories may result in a warranty revocation. •...
  • Page 5 Using a mobile phone may be dangerous to the operation of the aircraft and may interfere with network communication. Use of the device despite the ban may have legal consequences. Explosion hazards and restricted areas Turn off the device in explosion hazardous areas. Sparks in such places may lead to an explosion or fire that may result in serious injury or death.
  • Page 6 ask for it. Road safety Observe the local laws and regulations regarding smartphone usage while driving. If you make a phone call while driving, observe the following rules: Focus on driving to become aware of traffic conditions; If the device has a hands-free function, use handsfree.
  • Page 7 conditions.  Keep the appliance away from places where the temperature can reach 60 ° C, such as dashboard, window sill, fire, burning cigarette.  Do not paint the appliance.  Do not shake the appliance, do not drop it or crush it. ...
  • Page 8 service provider immediately to prevent the SIM card from being used by unauthorized persons. The service provider may ask for the IMEI number of the device that you can find on the battery sticker or by dialing the code *#06#. Record this number if you need it in the future. ...
  • Page 9 physician immediately.  Do not take the battery in your mouth as it may be poisonous.  Do not continue to use the battery if it finds too hot or has changed its color or shape.  Keep the battery dry. ...

  • Page 10: Product Specifications

    2. Product specifications Power Supply Features: • Input: (AC), 100-240 V - 50/60 Hz – 0.1 A • Output: (DC), 5 V - 500 mA Battery Type and Voltage: • Li-ion battery, 3.7 V, 600 mAh Network type: • GSM 900/1800 MHz SAR values: •...

  • Page 11: About The Keys

    3. About the keys 1. Left soft key / Right Soft key: Opens the menu item in the left / right corner of the screen. 2. Dial key: dial / answer the call and in standby mode, open the call list. 3.

  • Page 12: Getting Started

    4. Getting Started 4.1. Insert a SIM card To use your phone, you need to insert a valid SIM card to connect to the GSM network. To avoid missing or damaged the contents of the SIM card, please DO NOT hold the metal part of the SIM card with your hands free and keep it away from electromagnetic devices.

  • Page 13: Insert Battery

    4.3. Insert battery 1. Insert the battery chip into the protruding metal point in the battery slot, insert the battery, and push the top down until the battery engages in the recess. 2. Put back the back cover. 4.4. Remove the battery To remove the battery, turn off the device, remove the cover, and then remove the battery at the top.

  • Page 14: Maintaining The Battery

    1. If you use the battery at a persistently low charge, it may adversely affect the battery life and quality. 2. Use only the charger approved by the manufacturer for proper operation. 3. Do not remove the battery during charging. 4.

  • Page 15: Power On/Off

    5. Power On/Off Press and hold the End / On-Off button to turn the unit on or off. 1. If a SIM card is not inserted, it is defective or not fit correctly, a warning message will be displayed after switching on the display.

  • Page 16: Make A Call

    6.1. Make a call When the network service provider name appears on the display, the phone is ready to make and receive calls. Direct calling In Standby mode, press the number keys to enter the number you want to call, press the right soft key to clear the wrong numbers, press the left soft key or the dial key to start the call if the specified number is correct.

  • Page 17: Available Functions During Call

    is activated [Settings / Call settings / Answering mode / Automatic receiving in headset mode], incoming calls will be automatically received by your phone after 5 seconds of vibration or ringing. 4. If you do not want to answer the call, press the End / Off button to reject the call.

  • Page 18: Emergency Call

    6.4. Emergency call You can immediately make an emergency call without a SIM card. Different networks can use different emergency numbers, so please contact your network operator. 7. Messages Message service is a network-dependent service that allows you to send and receive SMS. For more information, contact your network provider.

  • Page 19: Incoming Messages

    Sending After Adding a Recipient (which you can do by entering a direct phone number or from Contacts), you can send the message by selecting <Options> Send. 7.2. Incoming messages You can store received messages on your device or on the SIM card and access it.

  • Page 20: Drafts

    7.3. Drafts You can view messages in the unfinished (While Writing Message: Options / Save) messages in this folder. 7.4. Outbox When [Save and send] is activated, unanswered messages are saved in this folder. In the messages list, press the View soft key (left soft key) to read the selected message.

  • Page 21: Log

    8. Log 8.1. Call logs In Menu mode, select Call Logs to access the Missed, Dialed, Received, All Calls list. Delete call logs: Use this option to clear the call details of a given menu item or all the lists at a time. Missed calls, Dialed numbers, Received calls list, the following options are available: •...

  • Page 22: Phonebook

    on the setting. Divert may be unconditional [All voice divert redirection] or conditional (Divert if not available; Divert if no answer; Divert if busy). Use the up / down navigation keys to select the appropriate divert type from the list, press Ok or Left soft key [OK] to select one of the following options: Activate: Forward to a new number or Voicemail (by type) for an incoming call:...

  • Page 23: Add New Contact

    the contacts (stored on the SIM card and on your device). Various icons indicate which contact is saved for which storage. You can search for that contact by entering the first letter of the contact. After searching for a contact, you can dial the number by pressing the Dial button and disconnecting the line by pressing the end / Off button.
  • Page 24 If you find a contact you are looking for, you can choose from the following options (only available after opening a contact): • View: View contact information • Send text message - Send a text message to the selected phone number •...

  • Page 25: Camera

    10. Camera Your device has a camera for taking photos. To store images, you need a memory card. In Photo Preview mode, you can choose from the following options by pressing Options (left soft key) in the popup window: • Switch to camcorder: to enter video capture mode.

  • Page 26: Video Recorder

    card. • Image information: Here you can see the details of a picture such as: resolution, size, creation time 11.2. Video recorder Insert a memory card to make a video recording. In Video Preview mode, press Options (left soft key) to access the following actions: •...

  • Page 27: Music Player

    11.4. Music player On the player interface, press OK to select / play / pause the left / right navigation buttons to go to the previous / next / audio file, the up / down navigation buttons to adjust the volume.

  • Page 28: Fm Radio

    11.6. FM radio In Menu mode, go to Multimedia> FM radio. To connect to a radio, connect the headset, which acts as an antenna. If you do not connect a headset to your device, you may not be able to receive radio reception or in very poor quality. In the FM radio application, press the left / right navigation keys to search the channels automatically forwards / backwards.

  • Page 29: Worldclock

    when the device is switched off. When the alarm clock sounds, press the Left soft key or the Stop button to stop; press the Right soft key to the snooze. To change the alarm details, select one from the list and press the left soft key [Alarm]: 1.

  • Page 30: Calculator

    with the OK button or press the left softkey. 12.5. Calculator In Menu mode, go to Extras> Calculator to open the calculator. The calculator in the machine can perform the 4 basic operations. 13. File manager In Menu mode, go to File manager. You can view all or the free storage of the memory card (if it is connected to a memory card).

  • Page 31: Settings

    14. Settings 14.1. Profiles Silent mode To activate the Silent mode, press and hold #. Press the # button repeatedly to activate General Mode. Customize profiles In Menu mode, go to the Settings / User Profiles menu, and then select the profile you want to change. There are 4 profiles in the device: General, Low, Meeting, Outdoor.

  • Page 32: Phone Settings

    14.2. Phone settings You can change the following in the Date and Time submenu: • Reset Location: You can select the capital of the country where you live. • Set date and time: Use the navigation keys to highlight the line you want to set, and then use the numeric keypad to enter the time and date.

  • Page 33: Security Settings

    Flying mode In this menu item, you can turn the flying mode on and off. The flying mode turns off all network functions Various settings: • LCD Backlight: You can set the display backlight time and brightness. 14.3. Security settings SIM security (PIN) PIN code: Protects your SIM card against unauthorized use.

  • Page 34: Connectivity

    soon as possible: to change the code in Menu> Settings> Security Settings> Phone Security> Change password. The specified code may consist of 4 to 8 digits. 14.4. Connectivity This menu option allows you to modify your Bluetooth settings. To activate Bluetooth - in menu mode, go to Settings> Connectivity>...

  • Page 35: Declaration Of Conformity

    16. Declaration of Conformity The Blaupunkt FS 04 is compliant with the essential requirements and relevant provisions of RoHS Directive 2014/53 / EU and 2011/65 / EU. The Declaration of Conformity is available on our website. Designed and Engineered by Blaupunkt Competence Center Mobile Europe HTM Mobile Kft.
