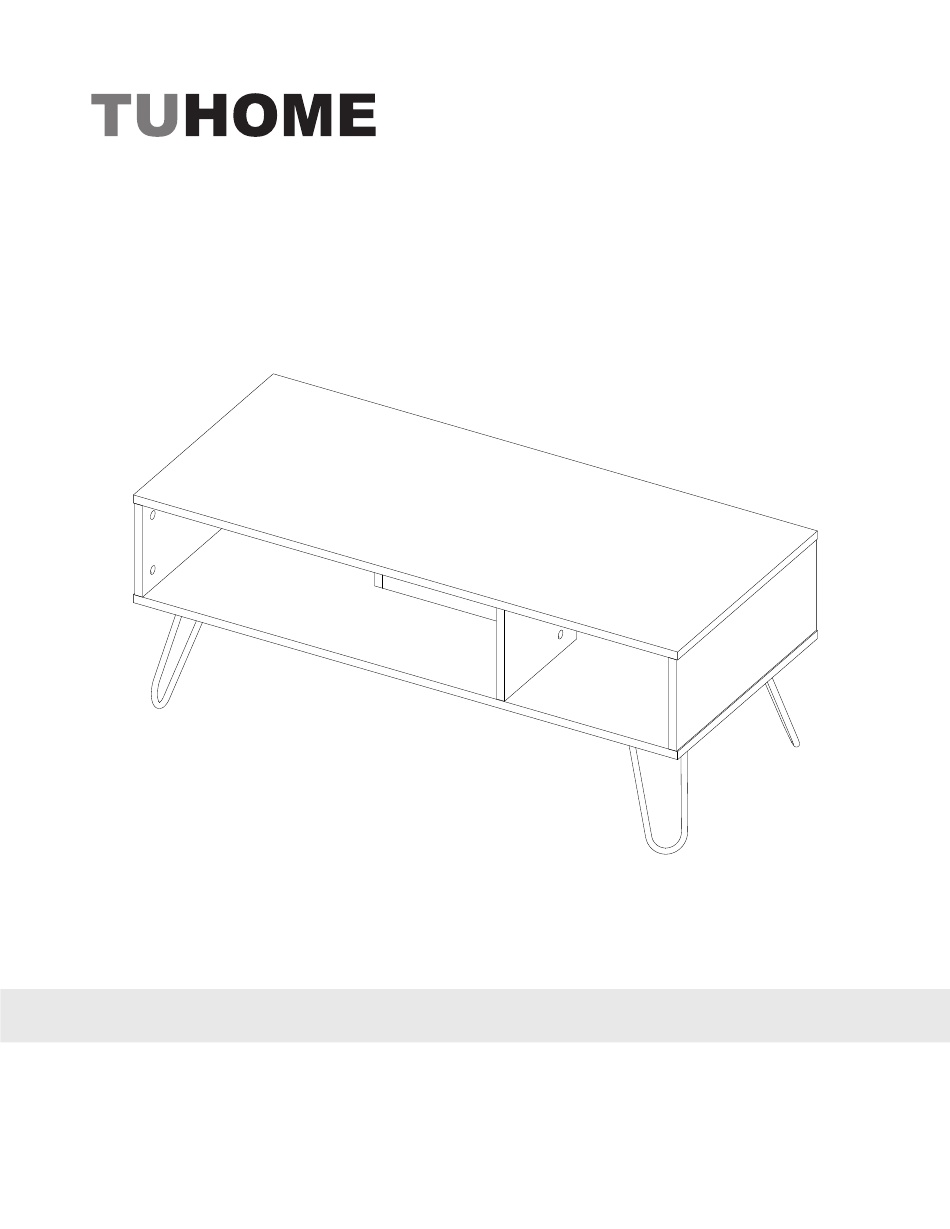

ASSEMBLY INSTRUCTIONS
INSTRUCCIONES DE ENSAMBLE
FURNITURE
Height: 15,75 in
Alto: 40 cm
Width: 39,8 in
Ancho: 101,1 cm
Depth: 17,72 in
Fondo: 45 cm
LOT N°
REF./SKU. MLV 3987
IF ANY PARTS ARE BROKEN OR MISSING

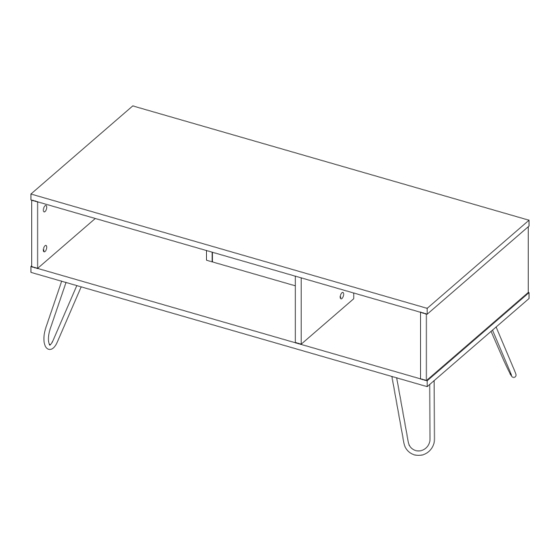

VASSEL COFFEE TABLE
PLEASE CONTACT US FIRST AT
1-888-391-01-66, OUR CUSTOMER SERVICE
Mesa de Centro Vassel
TEAM WILL PROVIDE YOU HELP TO RESOLVE
ANY ISSUES INMEDIATLY
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TUHOME Furniture VASSEL MLV 3987
Summary of Contents for TUHOME Furniture VASSEL MLV 3987
- Page 1 ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE ENSAMBLE FURNITURE Height: 15,75 in Alto: 40 cm Width: 39,8 in Ancho: 101,1 cm Depth: 17,72 in Fondo: 45 cm LOT N° REF./SKU. MLV 3987 IF ANY PARTS ARE BROKEN OR MISSING VASSEL COFFEE TABLE PLEASE CONTACT US FIRST AT 1-888-391-01-66, OUR CUSTOMER SERVICE Mesa de Centro Vassel TEAM WILL PROVIDE YOU HELP TO RESOLVE...
-
Page 2: Important Recommendations
IMPORTANT RECOMENDACIONES RECOMMENDATIONS IMPORTANTES Do not paint the cabinet. No pintar el mueble. The cabinet MUST be used exclusively indoors, El mueble debe ser usado únicamente en interiores, do not expose to direct sun. no exponer al sol directo. Clean metallic hardware with a dry cloth. Limpiar los herrajes metálicos con un paño seco. -
Page 3: Required Tools
INDEX ÍNDICE Assembly Hardware Herrajes para Armado Assembly Parts Piezas de Armado Suggested Loads Cargas Sugeridas Assembly Recommendations Recomendaciones de Ensamble 7-11 7-11 Assembly Steps Pasos de Armado Warranty Garantía REQUIRED TOOLS* HERRAMIENTAS NECESARIAS* *No incluidas y no se muestran en tamaño real. *Not included, and not shown actual size. -
Page 4: Assembly Hardware
ASSEMBLY HARDWARE HERRAJES PARA ARMADO Please check that the hardware content is correct. Compruebe que el contenido de los herrajes sea If any item is missing, please call to our customer el correcto. En caso de que falte alguna pieza, por service line. -
Page 5: Assembly Parts
ASSEMBLY PARTS PIEZAS DE ARMADO A - x1 B - x2 C - x1 D - x2 E - x1 Page 5... -
Page 6: Assembly Recommendations
MAX SUGGESTED LOADS CARGAS MÁXIMAS SUGERIDAS 55lb 25kg 55lb 25kg ASSEMBLY RECOMENDACIONES RECOMMENDATIONS DE ENSAMBLE Two people are recommended to assemble Ensamble el mueble entre dos personas. the product. Assemble the cabinet on a flat, smooth Ensamble el mueble sobre una superficie surface, preferably on a carpeted floor plana y lisa, preferiblemente sobre un or the carton box of the product. - Page 7 Turn Over Voltear Page 7...
- Page 8 Arrow Do NOT tighten the cams in this step. NO apriete las cajas minifix en este paso. Turn Over Voltear Page 8...
- Page 9 Turn minifix cams to the right to tighten. Gire las cajas minifix hacia la derecha para apretar las piezas. Turn Over Voltear Page 9...
- Page 10 Rotate to tigten. Gire para apretar. Turn Over Voltear Page 10...
- Page 11 Gently hit to adjust. Golpee suavemente para ajustar. Rotate to tigten. Gire para apretar. After you finish the adjustment After you finish assembling the of the cams, cover them with cabinet, take off the adhesive the cover caps. letters. Después de ajustar todas las Al terminar de armar, desprenda cajas minifix, cúbralas con las las letras adhesivas.
-
Page 12: Warranty Policy
PÓLIZA DE GARANTÍA FURNITURE TUHOME Furniture has a 3 year warranty coverage in wooden parts and 1 year warranty coverage in hardware pieces since its manufacturing date, which you can see in the lot number printed on the product box and the assembly instructions leaflet.
