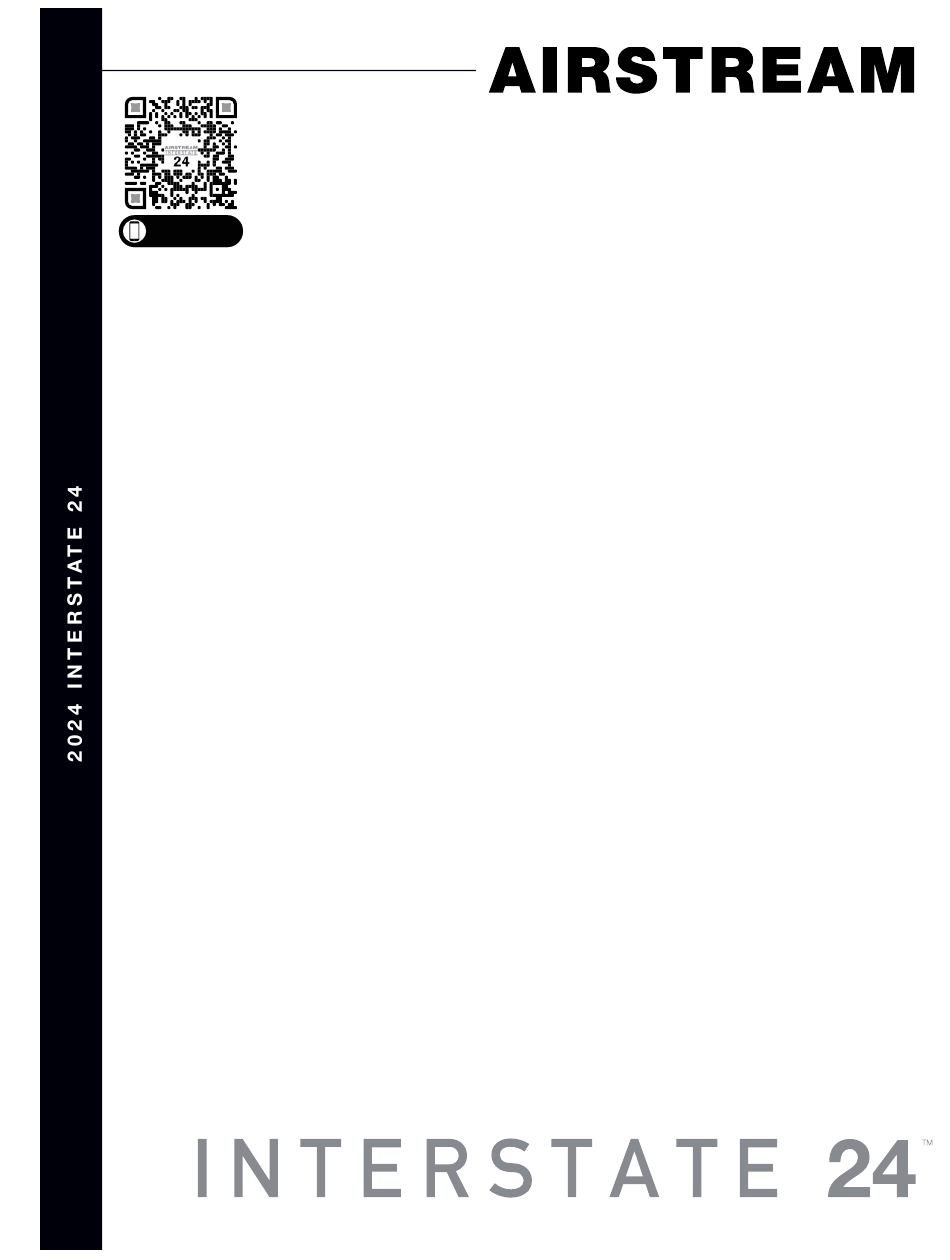

- Page 1 ® Roll With The Best ® SCAN ME O w n e r ’ s M a n u a l...
- Page 2 If and when new materials and production techniques are developed that can improve the quality of its product, or material substitutions are necessary due to availability, Airstream reserves the right to make such changes.
-
Page 3: Table Of Contents
® TABLE OF CONTENTS TABLE OF CONTENTS INTRODUCTION ....1-1 SPRINTER VAN ....7-1 SAFETY . - Page 4 NOTES NOTES 2024 Interstate 24...
-
Page 5: Introduction
Section 1 Section 1 INTRODUCTION INTRODUCTION The Owner’s Manual for your new Airstream Touring We have provided many important safety messages Coach is designed to respond to the most frequent in this manual. Always read and obey all safety inquiries regarding the operation, function, and care of messages. - Page 6 Introduction NOTES NOTES 2024 Interstate 24...
-
Page 7: Safety
® Section 2 Section 2 SAFETY SAFETY SAFETY PRECAUTIONS � � � � � � � � � � 2-2 ALARMS AND DETECTORS � � � � � � � � � 2-3 Weight Distribution � � � � � � � � � � � 2-2 Smoke Alarm �... -
Page 8: Safety Precautions
Safety Safety Precautions Generator Safety Do not operate the generator in an enclosed building or Many things can be construed as safety related, but in a partly enclosed area, such as a garage� Be sure to the most important is your common sense� If you are follow all instructions and warnings in this manual and careless with matches, cigarettes, flammable material, the generator manufacturer’s manual�... -
Page 9: Alarms And Detectors
Ventilation is an essential Detector� If you have not received the manual, contact requirement for touring coach use for many reasons� your dealership to obtain one, or contact Airstream Any effects of formaldehyde can be greatly reduced Customer Relations at 937-596-6111�... -
Page 10: Smoke Alarm
Safety Smoke Alarm WARNING If smoke is detected you will be alerted by 3 beeps, pause, 3 beeps, pause and the detectors LED will flash Activation of your Carbon Monoxide alarm’s red as the alarm is sounding� If the alarm does sound audible horn indicates the presence of Carbon exit immediately and call the Fire Department�... -
Page 11: What Is Carbon Monoxide
Safety What Is Carbon Monoxide WARNING Carbon Monoxide (CO) is a highly poisonous gas that is released when fuels are burned� It is invisible, has The Smoke/CO detector is shipped with batteries no smell, and is therefore very difficult to detect with deactivated. -
Page 12: Regular Maintenance
Safety Regular Maintenance Liquid Propane Gas (LPG)/Carbon Monoxide (CO) Detector The Smoke/CO detector has been designed to be as maintenance-free as possible, but there are a few simple things you must do to keep it working properly� Use only listed replacement batteries� The unit may not operate properly with other batteries�... -
Page 13: Detector Test
Safety Basic LPG Safety Information Detector Test If the Silence/Test button is pressed while in normal A warning label has been positioned in the cooking operation, the alarm will perform a self test of the area to remind you to provide an adequate supply of CO sensor, propane sensor and battery voltage�... -
Page 14: If You Smell Gas
Safety Basic Generator Safety Information If you smell gas • Extinguish any open flames, pilot lights and all 1� Never sleep in the vehicle with the generator smoking materials� running without ensuring the carbon monoxide detector is working� Primary protection against •... -
Page 15: Fire Extinguisher
Safety Fire Extinguisher Emergency Exit There are three avenues of escape from the touring coach in the event of an emergency, the driver’s door, the passenger door, and the rear doors� As always, safety should be one of your top priorities� Make sure you and everyone traveling with you can operate these doors and exit rapidly without light�... - Page 16 Safety NOTES NOTES 2-10 2024 Interstate 24...
-
Page 17: General Information
Legal Remedies � � � � � � � � � � � � 3-5 What are molds � � � � � � � � � � �3-10 Airstream Limited Warranty Excludes � � � � 3-5 What factors contribute to mold growth � �3-10 Normal Wear �... -
Page 18: Limited Warranty Policy
There is “Defect” means the failure of the workmanship no warranty of any nature made by airstream beyond performed and/or materials used to conform with the that contained in this limited warranty� No person has... -
Page 19: Back-Up Remedy
MUST motorhome purchased by, registered by, or titled in notify your dealer OR Airstream within 10 days of the name of a business association (such as any the date of purchase to have damage repaired at no LLC, corporation, or partnership)�... -
Page 20: Obtaining Warranty Service
Airstream dealer, you must contact Airstream in one of this Limited Warranty; The addition of weight to the following manners, and specify:... -
Page 21: Consumer Arbitration Program
Events That Discharge Airstream’s Obligations Lack of customer care and/or improper maintenance Under This Limited Warranty will result in early failure for which Airstream cannot be Misuse or neglect, accidents, unauthorized alteration, held responsible� failure to provide reasonable and necessary Exposure maintenance (see Owner’s Manual), damage caused... -
Page 22: Service
Airstream manual should be interpreted as advice or directions to disregard or void Occasionally, dealerships change, or new dealers are added that may not appear on the website immediately�... -
Page 23: Camping
National Highway Traffic 3� Close all interior cabinet doors� Safety Administration (NHTSA), in addition to notifying Airstream, Inc� 4� Latch refrigerator door. (Seal containers first.) If NHTSA receives similar complaints, it may open an 5� Latch microwave�... -
Page 24: Overnight Stop
General Information Overnight Stop When you stop for the night, your Airstream Touring Coach is built to be safely parked in any spot that In time you will develop a knack for spotting wonderful is relatively level and where the ground is firm. Your little roadside locations by turning off the main highway facilities are with you�... -
Page 25: Leveling
2 in� x 6 in� boards tapered be considered normal, and may under the terms of at both ends� Airstream does not recommend placing the warranty constitute misuse, abuse, or neglect, tires in a hole for leveling� Refer to Section 7 - Sprinter and may therefore reduce the warranty protection. -
Page 26: About Molds
General Information About Molds Waste Water System What are molds The main parts of the waste water system are the toilet, holding tanks, and tank dump valves (see Section 9 - Molds are microscopic organisms that naturally Maintenance for dump valve information)� The system occur in virtually every environment, indoors and is designed to provide complete self-contained toilet out�... -
Page 27: Drain System
General Information Drain System (GL) Winter Traveling Traveling in sub-freezing temperatures will require certain precautions to protect the plumbing system and your personal belongings from being damaged by freezing� While traveling, simply use your common sense� How cold is it? How long will it be before you can turn the heat back on? Is the temperature dropping or rising? Remember, when driving at 50 MPH, the wind chill factor will cause the interior of the touring coach to cool... -
Page 28: Heated Tanks
General Information Heated Tanks The touring coach has 12-volt heat pads installed with the fresh and gray water tanks to help prevent freezing� The tank pads are controlled by either of the touch screen Multiplex control panels located in the front or rear of the touring coach�... -
Page 29: Floor Plans And Specifications
® Section 4 Section 4 FLOOR PLANS AND FLOOR PLANS AND SPECIFICATIONS SPECIFICATIONS FLOOR PLANS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4-2 Interstate GL �... -
Page 30: Floor Plans

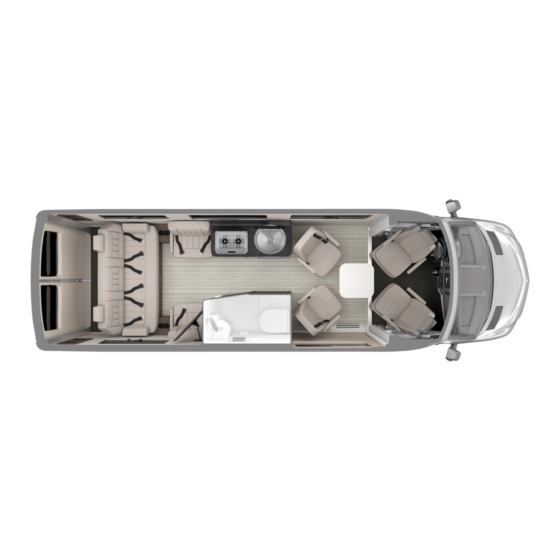

Floor Plans And Specifications Floor Plans Interstate GT Interstate GL 2024 Interstate 24... -
Page 31: Specifications
Bed Size (Rear Lounge) 70” X 82” 140 ft-lbs Lug nut torque Max LT215/85R16 - 61 psi (Front), LT215/85R16 - 58 psi (Rear) Tire Size and Max Cold Inflation Pressure Airstream Warranty 3 Years/36,000 Miles Mercedes-Benz ® Warranty 3 Years/36,000 Miles Mercedes-Benz ®... -
Page 32: Specifications Information
Floor Plans And Specifications Specifications Information Specification Tags The Unit Base Weight (UBW) and Occupant Cargo For precise cargo capacity, refer to the Cargo-Carrying Carrying Capacity (OCCC) weights listed in the Capacity tag on the inside of the door. The WEIGHT Specification Chart are for the base unit with LP and OF CARGO SHOULD NEVER EXCEED numbers batteries included�... -
Page 33: Interior
® Section 5 Section 5 INTERIOR INTERIOR GENERAL INFORMATION AND CLEANING � � � 5-3 Multiplex System � � � � � � � � � � � � 5-8 Upholstery � � � � � � � � � � � � � � � 5-3 Systems Controlled By Firefly �... - Page 34 Cable/Satellite Connection � � � � � � �5-17 Start up � � � � � � � � � � � � � �5-21 Airstream Connected RV Antenna Pre- Wire � � � � � � � � � � � � � � �5-18 Defrost and Cleaning �...
-
Page 35: General Information And Cleaning
“with” the grain of the metal� A good grade of nonabrasive automotive paste or liquid The interior of each Airstream Touring Coach has been wax once a year will increase the life of the finish. designed for comfort, convenience, durability, and CAUTION appearance�... -
Page 36: Privacy Sun Shades
Check that the cleaner/polish is suitable for use Toilet with cushioned vinyl floor coverings. The touring coach toilet in your Airstream is a design Privacy Sun Shades that has been used for many years� Privacy shades are provided for the front windshield To flush, press the foot pedal, holding the pedal down and driver/passenger cab windows�... -
Page 37: Lavatory Faucet
Galley Faucets Driver and Passenger Seats The driver and passenger seats are provided by Sprinter, sent out to be recovered by Airstream to match the interior decor� The seat adjustment mechanism provided by Sprinter allows the seat to be moved forward or backward and swivel left or right�... -
Page 38: Captain's Chairs, Second Row
Side Ottomans are not to be used as seating while by mistake� These presets are set at Airstream and in motion as there are no seat belts available. shouldn’t need adjusted�... -
Page 39: Electrical
The generator starts from the The major portion of electrical power in your Airstream house batteries so it must be started before they are is 12 volt� The 12-volt current powers almost every depleted�... -
Page 40: Multiplex System
Interior Multiplex System Multiplex Home Screen/Monitor Panel The Firefly Multiplex System provides advanced automation and mobile electrical solutions for your touring coach. Firefly is a multiplex network system that combines multiple signals across a media to reduce wires and simplify end-user control� The system combines all desired functions and controls of the touring coach into a simple touchscreen interface that allows you to control many systems�... -
Page 41: Power Center
4� Rear view camera: 1�5-watt in-line fuse under drivers seat� (#11 fuse) 5� Thermostat display: Fused to 5-amp breaker on side of furnace NOTE Most fuses will require a qualified technician to access and replace. Contact your dealer or Airstream Service Center. 2024 Interstate 24... -
Page 42: Energy Management System (Ems)
Breaker Test in this section for more information� residential resettable circuit breakers install in the Operation Power Center (120 VAC section)� Airstream has pre- In operation, when 120 VAC and 12 VDC are initially installed the correct breakers per RVIA (NEC) listing applied, the system will energize the relays at one requirements for the touring coach�... -
Page 43: Service
Interior Service Automatic Generator Start (AGS) The “Select” button allows the service type to be set to either 15, 20, or 30 amps to match the incoming service� When power is first applied, the system will be in the 30 amp mode and the screen will display “Service 30A”�... -
Page 44: 120-Volt Power
Interior 120-Volt Power Generator/City Power When you’re plugged into shoreline power or starting your generator, 120-volt current is fed to an Automatic Switch Over Box� Power from the box runs to the 120-volt circuit breakers on the Energy Management System NOTE Make sure to read, understand, and follow all a�... -
Page 45: Battery Disconnect Switches Multiplex System Disconnect Switch
Interior Battery Disconnect Switches Manual Disconnect Switch Multiplex System Disconnect Switch The manual disconnect switch, located at the base of the drivers side rear ottoman behind the decorative The battery disconnect switch located on the multiplex access door, is used to turn off power from the battery panel at the entry door is used to separate the 12-volt to the 12-volt distribution panel�... -
Page 46: Inverter/Charger
Interior Inverter/Charger Converter The Airstream converter system enables you to use the 12-volt lights and equipment whether operating on self- contained battery power or hooked up to 120-volt city power� The 12-volt light bulbs give off the same light as regular household bulbs, so that when operating... -
Page 47: 120-Volt System
If GFCI Breaker Test that does not solve the problem, consult an Airstream Service Center� Perform this test on the GFCI circuit breaker each month and record the date�... -
Page 48: Entertainment Systems
1� Set the Fusion ® Stereo to Bluetooth ® Discoverable: TV and Sound System • Press POWER ON Your Airstream has a Bluetooth ® enabled Smart TV and a Fusion ® Stereo with Press SOURCE • then rotate the volume Bluetooth ®... -
Page 49: Tv/Radio Antenna
Interior TV/Radio Antenna bottom-center of the screen� Once you are on the Homepage, tap the large white circle (with six black dots) on the right-hand side of the screen to go to the Menu page� Once you are on the Menu page, you will find two tabs on the left-hand side of the screen, the Navigation tab and the Tools tab�... -
Page 50: Appliances
Appliances Viewing Cable: To view cable you will need to turn OFF the antenna All appliances are delivered to Airstream, Inc�, with in- booster by pressing the small round pushbutton on the depth owner’s manuals� Those manuals are included in antenna booster’s wall plate (in the roof locker behind... -
Page 51: Air Conditioner
Interior Air Conditioner Ceiling Vent Fan The roof A/C used on Airstream Touring Coach’s are one of the most popular on the market today� In your owner’s packet is a set of literature covering all operating and maintenance instructions� If the literature is misplaced, contact the A/C manufacturer or your Airstream dealer for replacement�... -
Page 52: Cleaning Instructions
Operation become misplaced, new literature can be ordered The bath exhaust vent (shown above) removes directly from the manufacturer or your Airstream dealer� moisture from the air when using the shower� To The manufacturer also offers a detailed service guide operate, you first need to open the vent. -
Page 53: Microwave Ovens
All units are supplied with a wide range thermostat designed to sense the evaporator (cold plate) temperature� The coldest position on the The rooftop solar panels installed on your Airstream thermostat is reached by turning the knob to the help maintain battery health, reduce operating right (clockwise);... - Page 54 Interior Water Heater The Interstate Touring Coach is equipped with a continuous water heater featuring 60K BTU output, freeze protection, and direct spark ignition� The tankless water heater monitors inlet water temperature and flow, and output water temperature and flow. The water heater is operated using the Multiplex System’s control panel�...
-
Page 55: Exterior
® Section 6 Section 6 EXTERIOR EXTERIOR EXTERIOR CARE � � � � � � � � � � � � � 6-2 HITCH COVER � � � � � � � � � � � � � �6-12 WAXES AND POLISHES � � � � � � � � � � 6-2 How To Remove The Hitch Cover �... -
Page 56: Exterior Care
Sprinter manual� The following additional information is application� provided by Airstream to help you understand the finish A hand-applied polish or wax will offer outstanding and its care� Following these instructions will provide performance and protect the touring coach finish. -
Page 57: Washing Your Touring Coach
Wash from the top and work your way down, frequently rinsing to minimize The body kit provided by Airstream is made from state- grit abrasion. Follow with a final rinse of water. This of-the-art high impact plastic� The same material is... -
Page 58: Roadside Exterior Components (Gl)
Exterior Roadside Exterior Components (GL) NOTE Sections 6 and 9 contain additional information about these components. Mid-production changes may affect the exact location of the features shown above. well ventilated area� Air coming from vent can be 1� Water Management Panel: Use to fill fresh water, hot�... -
Page 59: Curbside Exterior Components (Gl)
Exterior Curbside Exterior Components (GL) NOTE Sections 6 and 9 contain additional information about these components. Mid-production changes may affect the exact location of the features shown above. 1� Solar Port: designed as a quick plug-in for a portable solar charging kit� 2�... -
Page 60: Roadside Exterior Components (Gt)
Exterior Roadside Exterior Components (GT) NOTE Sections 6 and 9 contain additional information about these components. Mid-production changes may affect the exact location of the features shown above. 1� Furnace exhaust vent should be cleaned regularly� hot� When parking the touring coach, be sure to When operating furnace, be sure exhaust can have proper clearance in venting area�... -
Page 61: Curbside Exterior Components (Gt)
Exterior Curbside Exterior Components (GT) NOTE Sections 6 and 9 contain additional information about these components. Mid-production changes may affect the exact location of the features shown above. 1� Solar Port: designed as a quick plug-in for a portable solar charging kit� 2�... -
Page 62: Exterior Features
Exterior Exterior Features 2� Dry Camping (boondocking) - select this setting to run fixtures from the fresh water holding tank. Alcoa Dura Bright Rims 3� City Fixtures (city water hookup) - select this Cleaning Instructions setting to run fixtures from a pressurized city water source�... -
Page 63: Exterior Shower
Exterior Exterior Shower Lock Extended Switch To use the lock extended switch, turn the engine off, open the door to extend the step, and turn the switch on� The step will now remain extended while opening and closing the door� Turn the switch off to return the step to normal operating mode�... -
Page 64: Shoreline Power Inlet And Cordset
LED indicator lights, one blue and one red� Reverse polarity occurs when connecting a cordset to a power pedestal that has the positive and negative leads reversed internally� A reverse polarity condition is unsafe, and it can damage an Airstream’s electrical components� 6-10 2024 Interstate 24... -
Page 65: Solar Ports
Solar Ports Hydraulic Leveling System The solar ports on each side of the touring coach allow The Airstream Touring Coach can be equipped with plug-and-play connection of portable solar panels the optional electrically/hydraulically driven leveling to augment the existing solar charging capability�... -
Page 66: Hitch Cover
Exterior Hitch Cover Awning How To Remove The Hitch Cover The awning manufacturer’s manual can be found in your Airstream owner’s packet or by Before Removal scanning this QR code and navigating to the instructions on Carefree’s website at https://www�... -
Page 67: Awning Manual Override
Exterior NOTE Care and Maintenance 1� PERIODIC MAINTENANCE Like any other part If wind or extended periods of rain are expected, of the touring coach, an owner should periodically retract the awning and secure as for travel. inspect the awning� The following items should be The effects of wind and rain on any awning are checked�... -
Page 68: Screen Doors
Exterior Screen Doors Powered Rear Screen The touring coach is equipped with an accordion style screen door to provide ventilation and insect control� To operate, carefully pull the screen from its stowed position across the opening� Reverse the procedure when returning the screen door to its stowed position� The screen door should always be in the stowed position when operating the main sliding door, to prevent damage�... -
Page 69: Sprinter Van
Wheel Bolt Tightening � � � � � � � � � � 7-8 Airstream Authorized Service Centers or Airstream suppliers� � � � � � � � � � � � 7-3 TIRE ROTATION � � � � � � � � � � � � � 7-9 Cab Area �... -
Page 70: Important Sprinter Information
Sprinter Van Mercedes me Connect App The Airstream Touring Coach is integrated into a Sprinter Van designed and manufactured by Mercedes- Access your vehicle from anywhere and Benz� Operation of the Sprinter, its engine, power experience all the benefits of ownership with train, and other related components are discussed Mercedes me connect�... -
Page 71: Sprinter Van - Serviced By Mercedes-Benz Sprinter Or Its Suppliers
NOTE provides the seat decorative skirting and recovers the front seats to match the surrounding decor� Please contact Airstream or Onan for a service location if repairs are need for the generator. Airstream Components - Serviced by Airstream Authorized Service Centers or If you need further clarification or information, contact Airstream suppliers. -
Page 72: Tires
A MOTORHOME TIRE SAFETY ADDENDUM is It is a common practice for motorhome owners to included with your Airstream owner’s packet� Please lower tire pressure in their search for a smoother take the time to read, understand, and follow the ride. -
Page 73: How Overloading Affects Your Tires
Sprinter Van • It may be necessary to inflate your tires at a truck stop or truck service center in order to achieve WARNING adequate air pressure for your coach’s needs Always replace wheel nuts that are damaged • Only permanent air seal metal valve caps should be or rusted. -
Page 74: Changing A Tire
Sprinter Van Changing A Tire Flat Tire If you get a flat tire while driving, gradually decrease (Partially excerpted from the Mercedes-Benz Sprinter your speed. Hold the steering wheel firmly and slowly Van Operator’s Manual) move to a safe place on the side of the road� The After changing a wheel, the wheel nuts must be pressure of the spare wheel (sold separately) should tightened once the vehicle has been driven for about... -
Page 75: Procedure
Sprinter Van Jack Procedure • Park the vehicle on a firm, level, non-slippery Read, understand, and follow the Mercedes-Benz surface� Sprinter Operator’s manual instructions, cautions, and warnings for changing a wheel and jack point locations� • Switch on the hazard warning flasher switch, apply the parking brake, and place the transmission WARNING selector in “P”�... -
Page 76: Installing And Removing A Wheel
Sprinter Van Installing and Removing A Wheel WARNING • Loosen the wheel nuts� Only certain tires meeting the tire size/load/speed • Jack up the vehicle until the wheel is clear of the index ratings contained in the Tire Pressure Tables, ground�... -
Page 77: Tire Rotation
Sprinter Van Tire Rotation Correct Front and rear tires perform different jobs and can wear Duals differently depending on the types of roads driven, driving habits, etc� To obtain the longest tire life, you should inspect and rotate your tires regularly� Many automotive dealers and tire dealers will perform a free tire inspection to look for uneven or abnormal tire Dual Tire Foot Print... -
Page 78: Air Ride Suspension
Sprinter Van Air Ride Suspension Manual Adjustments The touring coach is equipped with a rear axle air A remote, located on the B-pillar next to the drivers seat, can be used to manually adjust the air suspension� The Mercedes-Benz Sprinter Van is suspension�... -
Page 79: Driving
® Section 8 Section 8 DRIVING DRIVING LOADING � � � � � � � � � � � � � � � � 8-2 TOWING A TRAILER � � � � � � � � � � � � 8-6 Weighing �... -
Page 80: Loading
OCCUPANTS AND CARGO SHOULD NEVER Trailer Tongue Weight Rating (TWR) is the maximum EXCEED” number, Airstream weighs the vehicle as permissible weight of the trailer tongue� This counts as finished and adds the weight of full tanks of LP and cargo when loading a touring coach�... -
Page 81: Procedure For Weighing A Touring Coach
Driving Front Axle GAWR GVWR Rear Axle GAWR GCWR - GVW SCALE WEIGHT Optional Tow Weight ___________ ___________ ___________ ___________ STEP 3a STEP 1 STEP 2 STEP 3 Tow Weight minus Front Axle GAW Rear Axle GAW Weight of Trailer or Vehicle Towed GAWR = Gross Axle Weight Rating INDIVIDUAL WHEEL POSITION WEIGHT... -
Page 82: Safety
Driving Safety Child restraint devices are designed to be secured with lap or lap/shoulder belts� All instructions supplied Seat belts by the restraint manufacturer must be followed� Statistics have shown children are safer when properly Federally approved seat belts are provided for the restrained in a rear seating position than in a front use of the driver, passenger, the second row captains seating position�... -
Page 83: Trailer Towing And Driving Tips
Ask your authorized Mercedes-Benz Sprinter or be maintained at approximately 10-15 percent of the Airstream dealer if you require an explanation of loaded trailer weight, but not to exceed the hitch rating� information contained in the manuals. -
Page 84: Towing A Trailer
You may also use these corners to practice from the tow vehicle� Please consider using a trailer backing and parking� sway control system� For further information, see your authorized Mercedes-Benz Sprinter or Airstream dealer� 2024 Interstate 24... -
Page 85: Towing A Boat
While it is possible to tow a boat with your touring both courteous and sensible to signal and pull over at coach, Airstream does not recommend it� If you plan to the earliest safe opportunity and let them pass� pull and launch a boat, use caution when backing down... -
Page 86: Backing Up
Driving brakes. If the engine coolant rises to an extremely Backing Up high temperature (e.g. coolant temperature needle In BACKING UP the important thing to remember approaching the red zone) when the AC is on, turn is to DO EVERYTHING SLOWLY and to correct off the AC. -
Page 87: Towing Your Touring Coach
Driving Rearview and Side Monitor System Parking Your Touring Coach An LCD digital monitor comes standard and replaces To reduce the risk of personal injury or damage to the existing rear view mirror� It comes with a built- the vehicle power train as a result of vehicle/trailer in speaker and touch screen buttons to control all movement, always: settings�... -
Page 88: Safety Check List
Safety Check List Interior Check List (Before Driving) 1� It is important that all doors be completely closed Your Airstream Touring Coach should be given a and locked during travel� thorough safety check before a trip� Regular use of the following list will provide safe operation of your 2�... -
Page 89: Maintenance
® Section 9 Section 9 MAINTENANCE MAINTENANCE MAINTENANCE SCHEDULE � � � � � � � � � 9-2 DRAIN AND WASTE SYSTEM � � � � � � � �9-12 SUGGESTED MAINTENANCE AND Macerator Pump � � � � � � � � � � � �9-12 REPLACEMENT PARTS �... -
Page 90: Maintenance Schedule
Maintenance Maintenance Schedule WARNING Failure to maintain your touring coach can cause premature and unexpected parts breakage and/or erratic operation that may be hazardous. NOTE See appliance manufacturer’s literature for further information. Every year Every 1,000 miles or 60 days Batteries Check terminals are secured�... -
Page 91: Suggested Maintenance And Replacement Parts
Maintenance Suggested Maintenance and Replacement Parts (Part numbers listed are Airstream part numbers and can be ordered by calling a certified Airstream dealer.) WARNING Always replace the bulb or light fixture with the correct bulb for that light or matching fixture. Failure to heed this warning could cause fire, property damage, personal injury, or death. -
Page 92: Exterior Care
Maintenance Exterior Care Replacement Rivets The following exterior care products are recommended Interior by Airstream� Read and follow label directions� Exterior Part Number 330127-03 330149 sealant should be checked and resealed once a year� Rivet Name AD43ABS ADS46ABSR Walbernize Super Seal (PN - 28433W) - Use to clean... -
Page 93: Tire Care
Maintenance Tire Care Tire Inspection and Storage Before taking your touring coach on a trip or when The most important function of tires is to provide removing it from an extended storage period, make traction while moving and grip when steering or it a practice to inspect the overall condition of your stopping�... -
Page 94: Lithium Iron Phosphate Batteries
Unlike lead acid batteries, which require water converter will limit the charge current to the house replacement, lithium batteries require no active maintenance� The use of lithium batteries in Airstream’s batteries to approximately 40 amps� This should Touring Coach, also provides the benefit of delivering take approximately 1 minute�... -
Page 95: Battery State Of Charge
Maintenance Cold Weather Usage If the coach is not plugged into shore or generator power, to charge the house batteries, the batteries During the winter, lithium batteries will not take a can go back into LBCO Mode soon after the vehicle’s proper charge if the temperature is below 35°F�... -
Page 96: Lpg System
Always shut off the LPG gas when refueling the on, or any other abnormal situation occurs, use touring coach. the remote supply switch to shut off the tank valve immediately and call on a qualified LPG service center or Airstream Service Center. 2024 Interstate 24... -
Page 97: Plumbing
Fill the water tank by opening the exterior gravity feed water fill door. A high-pressure RV/Marine FDA The LPG regulators used on Airstream Touring Coach’s approved drinking water hose of at least ½-in� diameter are designed for low-pressure service, with a normal made from material that is tasteless, odorless, and outlet pressure setting of 11”-14”... -
Page 98: Water Pump And Strainer
Maintenance Water Pump and Strainer 4� Replace the screen assembly by aligning the screen in the seating groves and pressing down The water pump and strainer are located, depending gently until the tabs are back in place� on model, under the galley (accessed by removing the Disconnecting the Strainer/Water Pump Lines galley drawer), or below the refrigerator (accessed by removing the panel)�... -
Page 99: Sanitizing
5� Turn the water pump ON and run it until the Potable water systems require periodic maintenance mixture starts coming our of the faucets and the to deliver a consistent flow of fresh water. Airstream odor of chlorine is detected� Once the solution is recommends sanitizing before and after storage, running from the taps you can start closing them�... -
Page 100: Drain And Waste System
If the rubber ring control panel or Seelevel monitor)� When the Black seems loose when used, Airstream recommends using Water holding tank is completely full, sewage cannot some type of weight to further secure the hose�... -
Page 101: Emptying The Black And Gray Water Holding Tanks
Maintenance Emptying the Black and Gray Water Holding Tanks Macerator Impeller Release Feature Impeller Release Feature 1� Remove the high pressure waste hose by opening After long periods of non-use, a stuck impeller can be easily broken loose with a screwdriver inserted in the hose reel compartment door and momentarily the motor shaft slot�... -
Page 102: Winterizing And Storage
Twice a year, or after a long storage period, we with water using the black tank flush inlet, and then suggest you take your unit into your Airstream dealer drive the touring coach for a few miles� Don’t wait until for a check-up and cleaning of the gas-operated the tank is packed solid�... -
Page 103: Instructions For Winterization
Maintenance Water heater bypass valve - on the water line 9� For this step, have a catch pan or a towel ready connected to the water heater; behind the service to place under the water pump outlet to prevent panel under the roadside rear lounge� water from running out into the touring coach�... -
Page 104: Water Heater Winterizing
Maintenance 4� SET the Water Management Panel selector to Water Heater Winterizing Sanitize/Winterize� If the touring coach is to be stored during winter 5� Attach the hose mentioned above to the Water months, the water heater system must be drained to Management Panel inlet port and insert the other prevent damage from freezing�... -
Page 105: Macerator Pump Winterizing
Maintenance Macerator Pump Winterizing • Clean the interior of the vehicle and remove all food and beverage items� Empty, clean, and turn Plan your winterizing and storage ahead, and be sure off the refrigerator and leave the door open to the holding tanks are drained and flushed thoroughly. -
Page 106: Toilet
Maintenance Toilet Troubleshooting 1� Leaks: Toilet Winterizing a� Back of toilet: check water supply line connec- Draining Method: Turn off touring coach’s water supply� tion at water valve� Secure or tighten as neces- Drain toilet bowl� Disconnect supply line at water valve� sary�... -
Page 107: Electrical Diagrams
Maintenance Electrical Diagrams 12-Volt Main Schematics 9-19 2024 Interstate 24... - Page 108 Maintenance 12-Volt Schematic 9-20 2024 Interstate 24...
- Page 109 Maintenance 12-Volt Schematic 9-21 2024 Interstate 24...
- Page 110 Maintenance 12-Volt Schematic 9-22 2024 Interstate 24...
- Page 111 Maintenance 12-Volt Schematic 9-23 2024 Interstate 24...
- Page 112 Maintenance 12-Volt Schematic 9-24 2024 Interstate 24...
- Page 113 Maintenance 12-Volt Schematic 1 2 3 4 5 6 7 8 9-25 2024 Interstate 24...
- Page 114 Maintenance 12-Volt Schematic 9-26 2024 Interstate 24...
- Page 115 Maintenance 12-Volt Schematic ** GT INTERSTATE ** 9 10 DIP SWITCH SETTING SLIDE DOOR NIGHT SHADE CONNECTOR (1-2a) ** LOUNGE INTERSTATE ** 9 10 DIP SWITCH SETTING SLIDE DOOR NIGHT SHADE CONNECTOR (1-2a) 9-27 2024 Interstate 24...
- Page 116 Maintenance 12-Volt Schematic 9-28 2024 Interstate 24...
-
Page 117: 30-Amp 120-Volt Schematic
Maintenance 30-Amp 120-Volt Schematic CIR.#1 CIR.#2 CIR.#4 CIR.#5 CIR.#6 9-29 2024 Interstate 24... -
Page 118: Audio/Video Schematic
Maintenance Audio/Video Schematic HDMI HDMI TVb2 (CATV/SATV #2) 10-PIN CONNECTOR 9-30 2024 Interstate 24... -
Page 119: Standard 30-Amp Circuit Breaker Layout
Maintenance Standard 30-Amp Circuit Breaker Layout 20 20 GROUND BUSS LABEL: EMS BREAKER BOX Breaker label content may vary� 9-31 2024 Interstate 24... -
Page 120: Solar Panel Wiring
Maintenance Solar Panel Wiring A manual on the use of the solar system is included with the Airstream Owner’s Packet� Please read and understand all information before operating the system� The charge controller senses the actual battery charge and regulates the charging to prevent over charging� The system requires the 12-volt feed from the battery to operate�... -
Page 121: Fresh Water Layouts
Maintenance Fresh Water Layouts Interstate GL 9-33 2024 Interstate 24... - Page 122 Maintenance Interstate GT 9-34 2024 Interstate 24...
-
Page 123: Drain Valve Locations
Maintenance Drain Valve Locations (GL) 1 Water Heater 2 Drain Valves Bypass Valve Under Galley Under Driver Side Lounge/Bed DINETTE SEAT GALLEY REMOVABLE TABLE BATH W/SHOWER ENTRY STEP 2 Drain Valves Under Curbside Lounge/Bed The fresh water system has four fresh water line low point drain valves� There are two under the galley, accessed by removing the drawer below the microwave�... -
Page 124: Faqs And Answers
Turning the corner or stopping quickly while oil is low can cause this to happen� Answer: No, your Airstream is equipped with a built in regulator rated for 50 psi� 4. What size batteries are in my Airstream Interstate? 2. - Page 125 5. How do I use my Black Water tank flush? Appliances Answer: First, empty your Black Water tank, and then 1. I am planning for a trip in my Airstream. How close your Black Water tank valve� Hook up your hose should I get the refrigerator cooled down?
- Page 126 Maintenance NOTES NOTES 9-38 2024 Interstate 24...
- Page 127 Emergency Exit 2-9 Energy Management System (EMS) 5-10 Air Conditioner 5-19 Entertainment Systems 5-16 Air Ride Suspension 7-10 Exhaust Vent 5-20 Airstream Academy ii Extended Stay 3-8 Alarms and Detectors 2-3 Exterior Shower 6-9 Appliances 5-18 Automatic Generator Start (AGS) 5-11...
- Page 128 Index Macerator Pump 9-12 Tank Fill 6-8 Winterizing 9-17 Tire Care 9-5 Maintenance Schedule 9-2 Inflation Pressure 4-3 Mercedes me Connect App 7-2 Tire Size 4-3 Microwave Ovens 5-21 Toilet 5-4 Molds 3-10 Toilet Winterizing 9-18 Monitor Panel 5-8 Touch-up 9-4 Multiplex System 5-8 Towing 8-5 Towing a Trailer 8-6...
- Page 129 Beautiful is a call to action to pick up the litter, toss it in a can, and not simply step over it and pass it by. Your purchase of a new Airstream will open doors to new experiences and places you’ve only dreamed of – but it takes all of us working together to ensure those places remain pristine, accessible, and ready for the next adventure.
- Page 130 ® 1001 West Pike Street P.O. Box 629 Jackson Center, OH. 45334-0629 Phone: (937) 596-6111 Fax: (937) 596-7939 www.airstream.com...
Need help?
Do you have a question about the INTERSTATE 24 2024 and is the answer not in the manual?
Questions and answers
