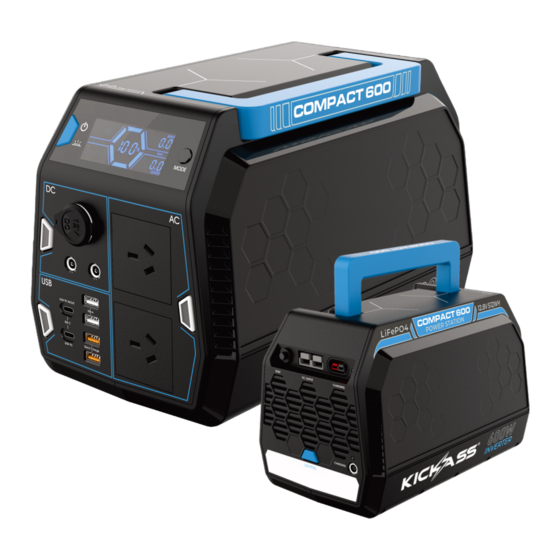

KickAss COMPACT-600 User Manual

Lithium power station
Hide thumbs
Table of Contents

Advertisement

Quick Links

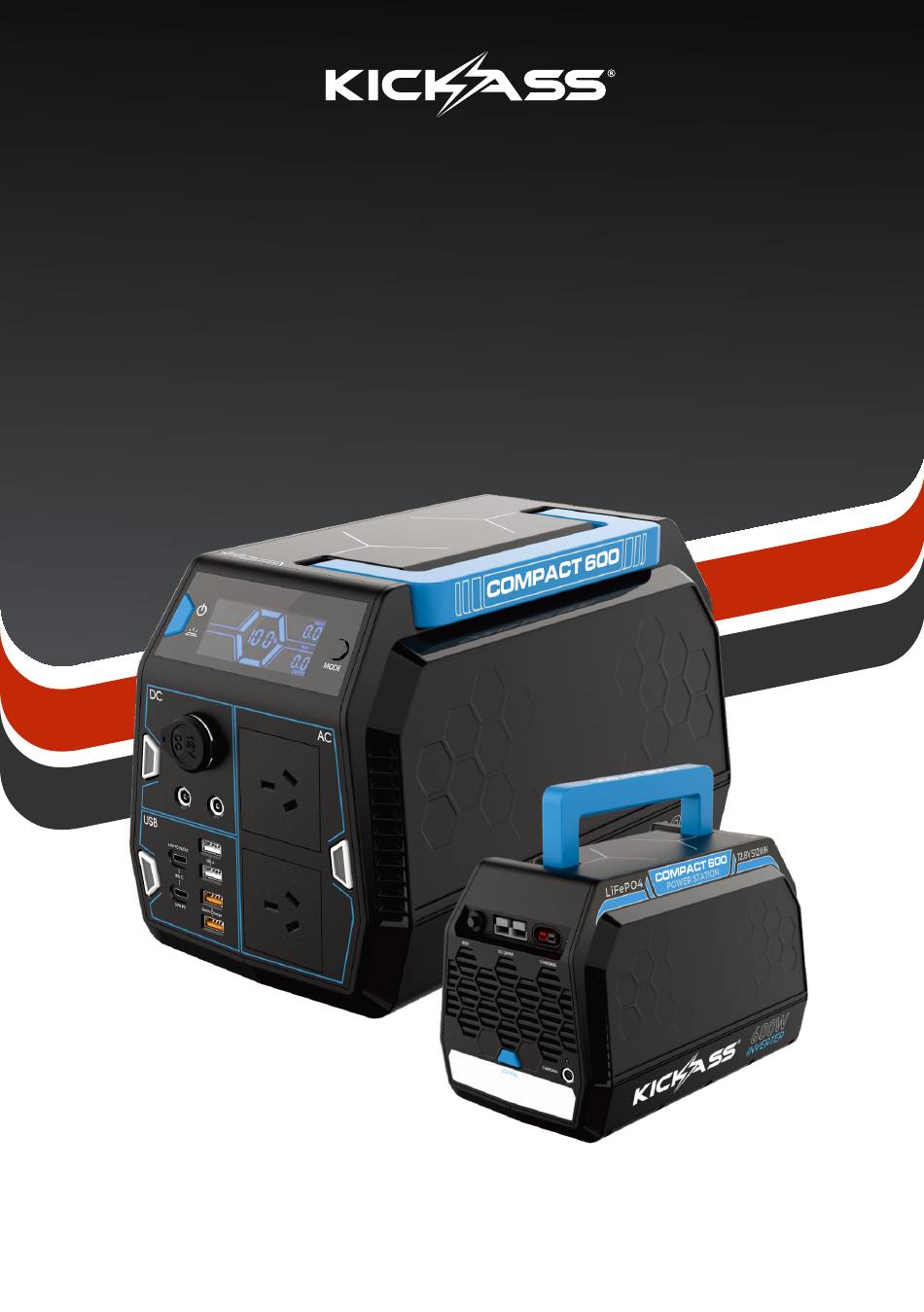

COMPACT-600
LITHIUM
POWER STATION
USER MANUAL
KACOMP600-LI
V0.8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMPACT-600 and is the answer not in the manual?

Questions and answers

Related Manuals for KickAss COMPACT-600

Summary of Contents for KickAss COMPACT-600

  • Page 1 COMPACT-600 LITHIUM POWER STATION USER MANUAL KACOMP600-LI V0.8...

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS Before using your COMPACT-600 for the first time, give it a full charge. Please charge COMPACT-600 every three months to preserve the battery health. Ÿ D alter or remove the factory plates or identification labels. o not Ÿ D disassemble the device.

  • Page 3: General Information

    Amps, Volts and Watts plus hours of all DC/AC inputs and outputs. The KickAss COMPACT 600 Lithium Power Station comes ready to plug & play, with all charging and adapter cables provided to connect your devices straight out of the box.

  • Page 4: Lcd Display

    LCD DISPLAY 1. OVERLOAD LED: Character is displayed if 12. AMP LED: Indicates input and output current. the AC output is short circuited or overloaded. 13. V LED: Indicates value is a Voltage. 2. LIGHT LED: Displayed when light bar is 14.

  • Page 5: Control Panel

    CONTROL PANEL 1.Power Button: Press to turn on the 600. One short press will turn the back light on COMPACT and off. One long press (3s and release) will turn the 600 off. COMPACT 2.Mode Button: Switches the display between Voltage, Current, Power and battery hour. 3.LCD Display: Displays battery voltage, input/output power, display battery percentage, alarms and error codes.
  • Page 6 Refer to diagram on page 11 for component call out. NOTE: When battery voltage <10.5V , KickAss COMPACT 600 Lithium Power Station will be in low voltage protection. All outputs will be disabled.

  • Page 7: What Is Included

    WHAT IS INCLUDED MAIN UNIT BLACK 16AWG/WC 5A ADAPTER CIGARETTE MALE PLUG CAR CHARGER CABLE POWER CABLE TO SP50A CONNECTOR (OPTIONAL) CABLE 4 BL205 RED BLACK UL 1015/20AWG/2C SP50A CONNECTER +300MM + RED/BLACK CONNECTOR...
  • Page 8 CHARGE FROM AC/DC ADAPTOR 5A ADAPTER KickAss COMPACT 600 Lithium Power Station can be charged from the 8mm charging port and the 5A AC/DC power brick provided with the unit. When connected, charging information will be displayed on the LCD display. The LCD display will indicate 100% once the unit has reached full capacity.
  • Page 9 TO MINI ANDERSON CIGARETTE SOCKET The KickAss COMPACT 600 Lithium Power Station can be charged from the vehicle alternator using the cigarette socket to mini Anderson cable assembly supplied with the device. The LCD display will indicate 100% once unit has reached full capacity.
  • Page 10 DCDC CHARGING - MPPT SOLAR INPUT (230W) SOLAR PANELS KickAss COMPACT 600 Lithium Power station can be charged with up to 230W Solar through the Mini Anderson to 50A Anderson cable adapter provided with the unit. Caution! When connecting solar to the KickAss COMPACT 600 Lithium Power Station, ensure the connected solar is unregulated i.e.
  • Page 11 DCDC CHARGING - PWM SOLAR INPUT (100W) SOLAR PANEL The KickAss COMPACT 600 Lithium Power Station can be charged with up to 100W of Solar through the 8mm DC port with a compatible Solar panel. Caution! When connecting solar to the KickAss COMPACT 600 Lithium Power Station, ensure the connected solar is unregulated i.e.
  • Page 12 WIRELESS PHONE CHARGING The KickAss COMPACT 600 Lithium Power Station can be used to charge wireless charging enabled mobile devices. To start charging, ensure phone is located in the wireless charging zone on top of the KickAss COMPACT 600 Lithium Power Station. Press the DC charging button and ensure the DC LED back-light is blue.

  • Page 13: Technical Specifications

    TECHNICAL SPECIFICATIONS Anderson socket :12.5V~60VDC,230W Max/8mm DC Solar Panel Input Range Socket: 15~24VDC 100W,Max ， 8mm DC socket (PWM) Solar panel range OCV 15~24VDC，100W Max / 8A Max Mini Anderson Socket (MPPT) Solar panel range OCV 12.5~60VDC, 230W Max / 15A Max 5A Adaptor 16V/5A Battery Capacity (LiFeO4)

  • Page 14: Warranty Information

    WARRANTY INFORMATION Warranty Period: Warranty Exclusions: KickAss Products Pty Ltd (KickAss) of 2 Mallet Our warranty is non-transferable and is only Street, Kunda Park QLD 4556 offers a 12 offered to the original purchaser of our month warranty from date of purchase against product.
  • Page 15 KICKASSPRODUCTS.COM.AU...
