BVIR User Manual
VERSION:2.0
NEWARE TECHNOLOGY.LIMITED
www.neware.com.cn
+86-755-83108866

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BVIR and is the answer not in the manual?

Questions and answers

Summary of Contents for Neware BVIR

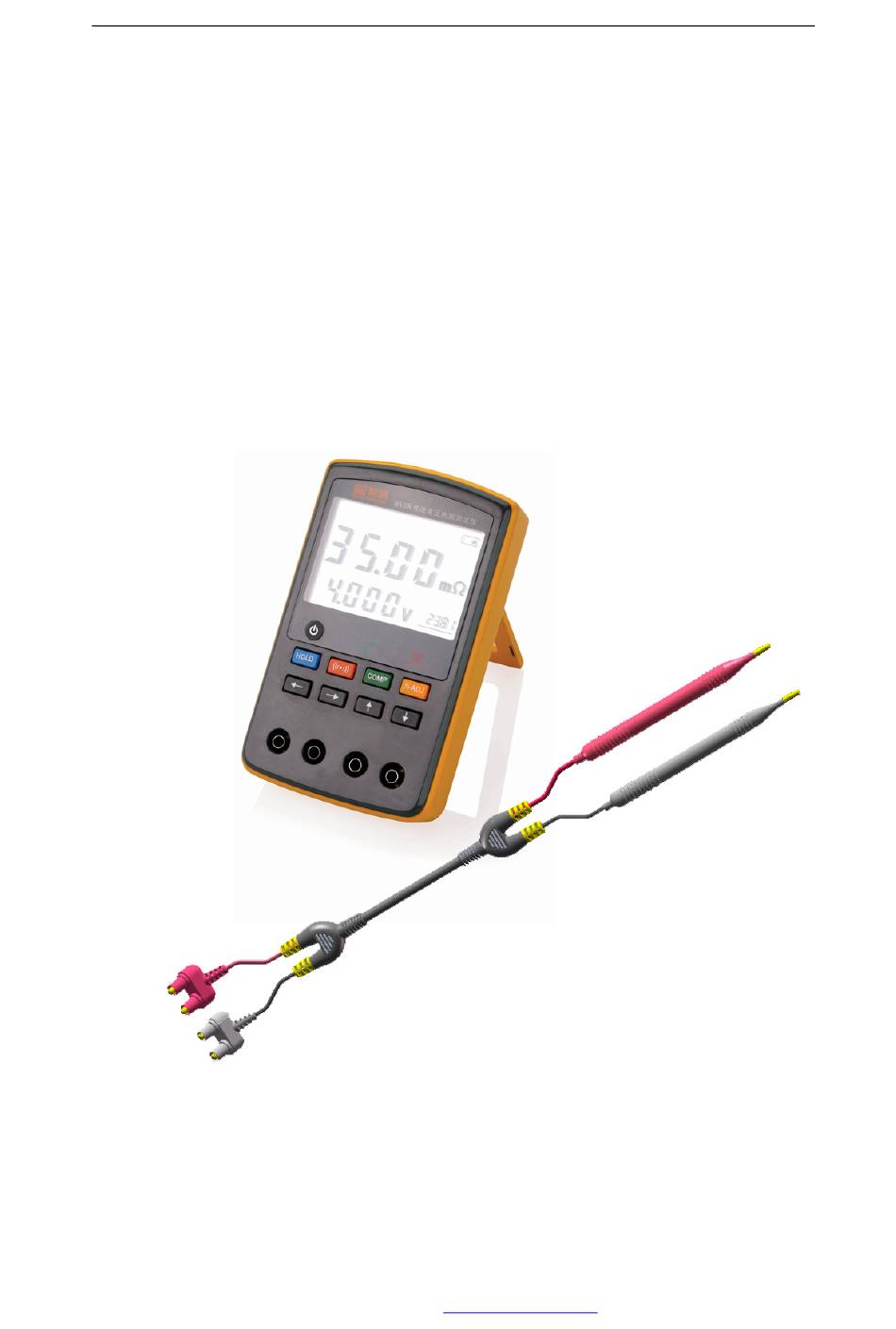

  • Page 1 BVIR User Manual VERSION:2.0 NEWARE TECHNOLOGY.LIMITED www.neware.com.cn +86-755-83108866...
  • Page 2 Please always state the version No. xx indicated in the cover page for any question you may have. © 2010 NEWARE。All rights reserved. Reproduction in any manner without the written permission of NEWAE Ltd. is strictly forbidden.
  • Page 3 In order to achieve sustainable development, NEWARE now is on its way to cut down our carbon emissions. At the same time we are pursuing an optimal service both from better performance against with lower cost product and perfect after-sales service to meet customer’s various needs.
  • Page 4: Table Of Contents

    BVIR User Manual CONTENTS 1 INTRODUCTION ................5 1.1 INSPECTION..................... 5 1.2 SECURITY....................5 1.3 OVER-PRESSURE CATEGORY ............5 1.4 PRECAUTION................... 6 2 OVERVIEW ..................7 2.1 OVERVIEW ....................7 2.2 APPLICATIONS..................7 2.3 TECHNICAL SPECIFICATIONS ............7 3 STRUCTURE..................9 3.1 BUTTONS ....................9 3.2 SCREEN .....................
  • Page 5: Introduction

    The warning is to alert you to the possibility of a dangerous safety condition that could result in damage to the NEWARE equipment, damage to the battery under test, or very serious injury or death to you and surrounding people “CAUTION”...
  • Page 6: Precaution

    When sending product rework, please remove the batteries to prevent damage during transport. Add cushions in the box to prevent shaking during transport. Be sure these details of the product, the NEWARE will not bear the loss arising during transport.
  • Page 7: Overview

    Complicated comparison: BVIR can compare the testing inner-resistance and voltage value with the presetting inner-resistance and voltage.  Edit and view data: 99999 groups of data can be stored in BVIR, provide a convenient way to edit and view the measuring data. ...
  • Page 8 BVIR User Manual Fixtures and equipment size specifications Indicators Project Indicator parameter Accessory 4 test pen or polymer fixture Volume W*D*H: 120*75*25(mm) Weight About 0.5Kg 8 |OVERVIEW...
  • Page 9: Structure

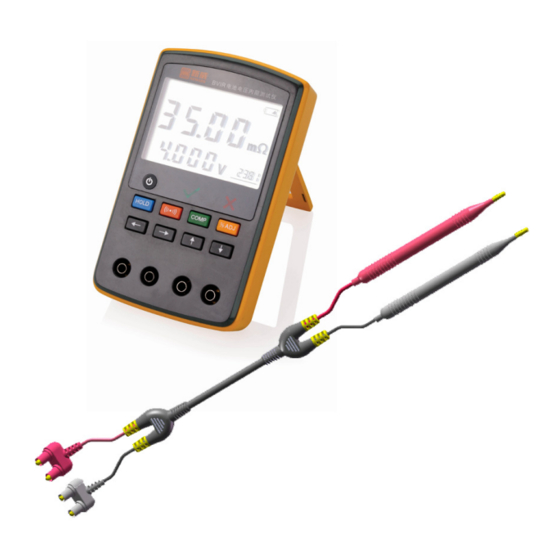

    BVIR User Manual 3 STRUCTURE BVIR consists of buttons, screen, LED indicators and a pen. 3.1 BUTTONS Figure1 the shape of the device 1 Resistance display Display the measurement of the resistance 2 Voltage display Display the measurement of the voltage...
  • Page 10: Led Indicators

    Figure1 The screen of BVIR As shown in Figure1, ① is the value of inner-resistance, ② refer to voltage value, ③ is the record account, is the unit of inner-resistance, V is the unit of voltage, “HOLD”...
  • Page 11: Measuring Procedure

    BVIR User Manual 4 MEASURING PROCEDURE 4.1 PREPARATION Figure3 the screen after boot 1. Figure 3 show the screen in 3 seconds after there pressing the power button, after 3 second the screen show as Figue4, at this point the voltage is beating, wait for “↑”,“↓”...
  • Page 12: Standard Measuring Procedure

    BVIR User Manual 4.2 STANDARD MEASURING PROCEDURE CAUTION:In order to avoid damage to equipment, do not try to measure the voltage over 25AC/DC; not measure constant voltage source; after measuring the high-voltage battery, while continuing to measure low-voltage battery, the pen must be short connected to discharge the capacitor oin the pen, connect the four terminals, SOURCE + / - and the SENSE + / -.
  • Page 13: Start/Shutdown The Buzzer

    BVIR User Manual Press “→” to move the cursor to the highest position of inner-resistance maximum, refers to Figure6. Press “←”, “→” button to switch between the setting values, press “↑”, “↓” to increase and decrease the setting values within in 0m to 2000mΩ.
  • Page 14: View History Data

    BVIR User Manual release this function, when “HOLD” appears on the screen, that mean this function works. Tip: It is only used in the measuring status, in that case only “POWER” and “HOLD” button will be still on work. You should press this button for less than 3s, otherwise, it will enter in the “history data view”...
  • Page 15: Battery Shortage Tips

    BVIR User Manual 4.8 BATTERY SHORTAGE TIPS There will be a prompt symbol “ ”in the battery situation, at that time, you should charge the battery to ensure the normal operation.. 4.9 SHUTDOWN AUTOMATICALLY The default shutdown time is 30 minutes, user can close this function or decrease the shutdown time to 15 minutes, the detail procedure is as following: Press the POWER button to power off;...
  • Page 16: Appendix

    BVIR User Manual APPENDIX OPERATION NOTICES In order to better use of device before operation, we remind you of the following notices:  Do not try to measure the voltage which is more than 25V.  In the measurement, it should ensure that adequate ventilation, because sometimes during the measurement electrodes and the battery electrode contact will produce sparks and flammable gases, such as hydrogen.
  • Page 17: After Sales Service

    BVIR User Manual AFTER SALES SERVICE SERVICE ITEMS  Free technical training: We are providing free pre-sale and after-sale technical training course along with specialized technical engineers working for your service timely;  Telephone consultation service: For any operation problems, dial at consultation service line: 800-830-8866 for help, our technical supporting engineer will work out proper solutions for you.
  • Page 18 BVIR User Manual engineer can work out the troubleshooting solution according to concrete contents;  Cooperate with technical engineer: Taking instructions and operating under technical support engineer guidance. If couldn’t solve the problem by telephone consultation service, we recommend as follows: Customer should carry out above of consultation procedure first, after we NOTE:...
  • Page 19: Contact Neware

    BVIR User Manual CONTACT NEWARE Thank you for using “NEWARE” brand products, we hope our products can become your profit assistant in the future .We provide a variety of customer service for you and help you to quickly solve the problem that may arise while operating the device. For rapid and effective to solve the problem, we recommend that contact us in the following accesses: Free consultation service line: 800-830-8866800-830-8866;...
