- Page 1 BVIR User Manual...
- Page 2 Introduction：In order to better use and play system performance ,please read the instruction before using this system, , due to the system constantly upgraded, this instruction sheet for reference only and is subject to change without prior notice. © 2010 NEWARE。All rights reserved, re-print reserved。 November, 2010 VERSION: 2.0...
- Page 3 Our company registered trademark is “NEWARE”, passed the quality management system certification of ISO9001. We adopt the world-leading SAP system for the management of business process.
-
Page 4: Table Of Contents
1.4 Prevention.......................... 6 2 Summarize..................... 7 2.1 Product Summarize......................7 2.2 Function..........................7 2.3 Characteristics........................7 2.4 Technical Specification..................... 7 BVIR Composition Structure and Function........9 3.1 Operation Keys........................9 3.2 LCD Screen........................10 3.3 LEDs Indicator Light......................10 Testing Process...................11 4.1 Prepare Measurement.....................11 4.2 Standard Testing Process....................12 4.3 Comparing Function.......................12... -
Page 5: Introduction
Battery Voltage and Internal Resistance Tester User Manual Chapter 1 Introduction Thanks for using “NEWARE BVIR” voltage internal resistance equipment, in order to make full use of equipments’ function, please carefully read this user manual before you operate the testing equipment. -
Page 6: Prevention
1. When the first use of the equipment, check whether equipment works properly, to confirm that the equipment is not damaged during the transportation. If found any damaged, please contact NEWARE sales representative. 2. When return the equipment to mend, please take the battery out to prevent damage during the transportation. -
Page 7: Summarize
Battery Voltage and Internal Resistance Tester User Manual Chapter 2 Summarize 2.1 Product Summarize BVIR battery voltage and internal resistance tester is mainly for testing the internal resistance and open-circuit voltage of Secondary batteries, Lead-acid batteries, Ni-Cd batteries, Ni-MH batteries, Li-ion batteries, etc. 2.2 Function Complex comparison functions: can make the comparison of the current measured resistance, ... - Page 8 Battery Voltage and Internal Resistance Tester User Manual Index Project Index Parameter Over the input range To show “﹍﹍” Comparator Manually operation on/off The number of comparators 10 group voltage and internal resistance limit Comparator buzzer setting Resistance measurement mode： when Hi、 Lo or IN， buzzer ring Save function Save show Resistance voltage...
-
Page 9: Bvir Composition Structure And Function

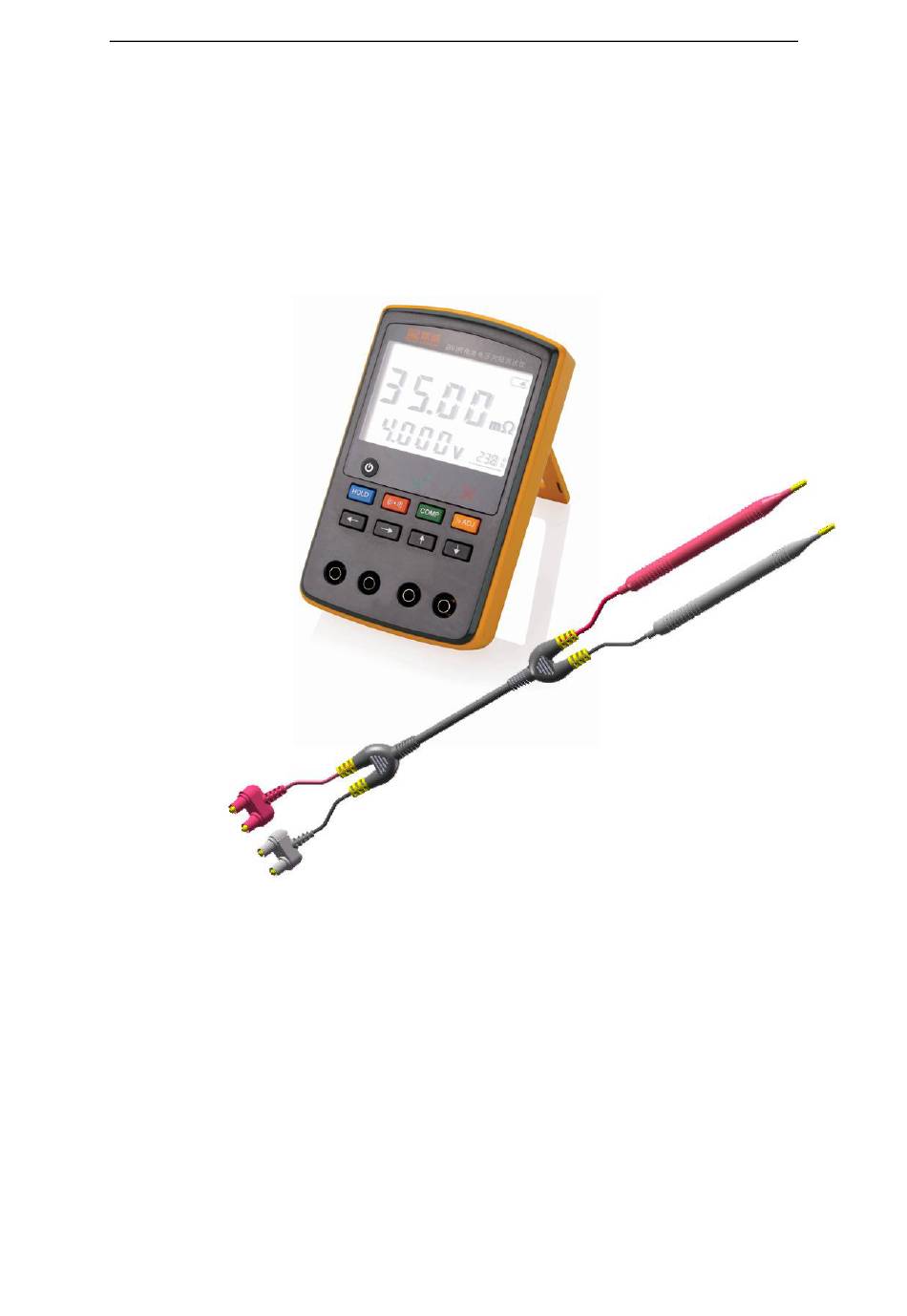

Battery Voltage and Internal Resistance Tester User Manual Chapter 3 BVIR Composition Structure and Function consists of operation keys, LCD screen, LEDs indicator light. BVIR 3.1 Operation Keys Picture 1 Internal Resistance and Voltage Tester Appearance 1 Battery resistance display... -
Page 10: Lcd Screen
， shows the maximum and minimum value of internal resistance or voltage ,and present comparative parameter group array number. Picture 2 BVIR LCD Screen As shown, ① indicates that the battery internal resistance, ② indicates battery voltage, ③ ... -
Page 11: Testing Process
Battery Voltage and Internal Resistance Tester User Manual Chapter Four Testing Process 4.1 Prepare Measurement Picture 3 Screen Shown after Startup 1. The content shows as Picture 3 within 3 seconds after press “POWER” key, the content shows as Picture 4 after 3 seconds，at this time, voltage is jumpy, after 3 minutes preheating, screen voltage is stability, after startup can adjust through“↑”，“↓”，change group, and check historical data. -
Page 12: Standard Testing Process
Battery Voltage and Internal Resistance Tester User Manual 4.2 Standard Testing Process Warning： In order to avoid equipment damage, don’t try testing voltage over 20VAC/DC; don’t test voltage of constant voltage source; After testing high voltage battery, when continue testing low voltage battery, should short-press the watch-pens, this will make watch-pens connected AC coupling capacitance discharge. - Page 13 Battery Voltage and Internal Resistance Tester User Manual Picture 5 Comparative Parameter Setting The content shows as Picture 5 when into the comparative parameter settings interface, ① is the upper limit of internal resistance, ② is the lower limit of internal resistance, ③ indicates that what you set is about upper (lower) limit of internal resistance, ④...
-
Page 14: Open/Close Buzzer Function
Battery Voltage and Internal Resistance Tester User Manual Picture 7 Internal Resistance Setting Note： Setting of the upper limit valu should be equal or greater than the lower limit value,, logical conditions of voltage and internal resistance value in comparing function is "and"... -
Page 15: Calibration
Battery Voltage and Internal Resistance Tester User Manual Picture8: Picture 8 Historical Data Checking 2. Press “↑” ， “↓”key ， screen data increase/decrease a numbers, Picture 9 for no records of historical data shown in groups; Picture 9 Not Measured Data Group Display 3. -
Page 16: Low Battery Display
Battery Voltage and Internal Resistance Tester User Manual Note: Access to full-scale calibration resistance is 100mΩ, the correction is the resistance of full scale; access to the 20V DC voltage source, the correction is the full scale voltage. During the process of zero point correction, ensure that four watch-pens in a good short-connected. Only SOURCE and SENSE watch-pens well short-connected then will show 0. -
Page 17: Appendix
Service Items Free Technical Training: The company offers a free pre-and post-sales technical training, specialized technical engineers at your service, sincerely welcome you to visit; NEWARE Phone Support: When in the use of new products, users who encounter difficult ... -
Page 18: Exception
Exception NEWARE’s services do not include neglect or fault NEWARE caused by any reason other than the necessary support. Such reasons include but are not limited to: customer or its employees or agents or any third party accident, transportation, neglect, ... - Page 19 Note: Customer must comply with the above procedures, NEWARE may send technical support personnel provide on-site maintenance. Allow NEWARE technical support staff to access to products and safely and timely, to fulfill its obligations under this article. Provide adequate working space around products and provide test equipment and components required by technical staff at any time request and care facilities for storage of all parts reasonably.
-
Page 20: Contact Neware
Battery Voltage and Internal Resistance Tester User Manual Contact NEWARE Thanks for using NEWARE products, we hope that NEWARE products become to your profit assistant in process of using it. We provide you with a variety of ways of self-service to help you be more efficient equipment operation to solve the various problems encountered in the process.
