RELAXONCHAIR MK-CLASSIC User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

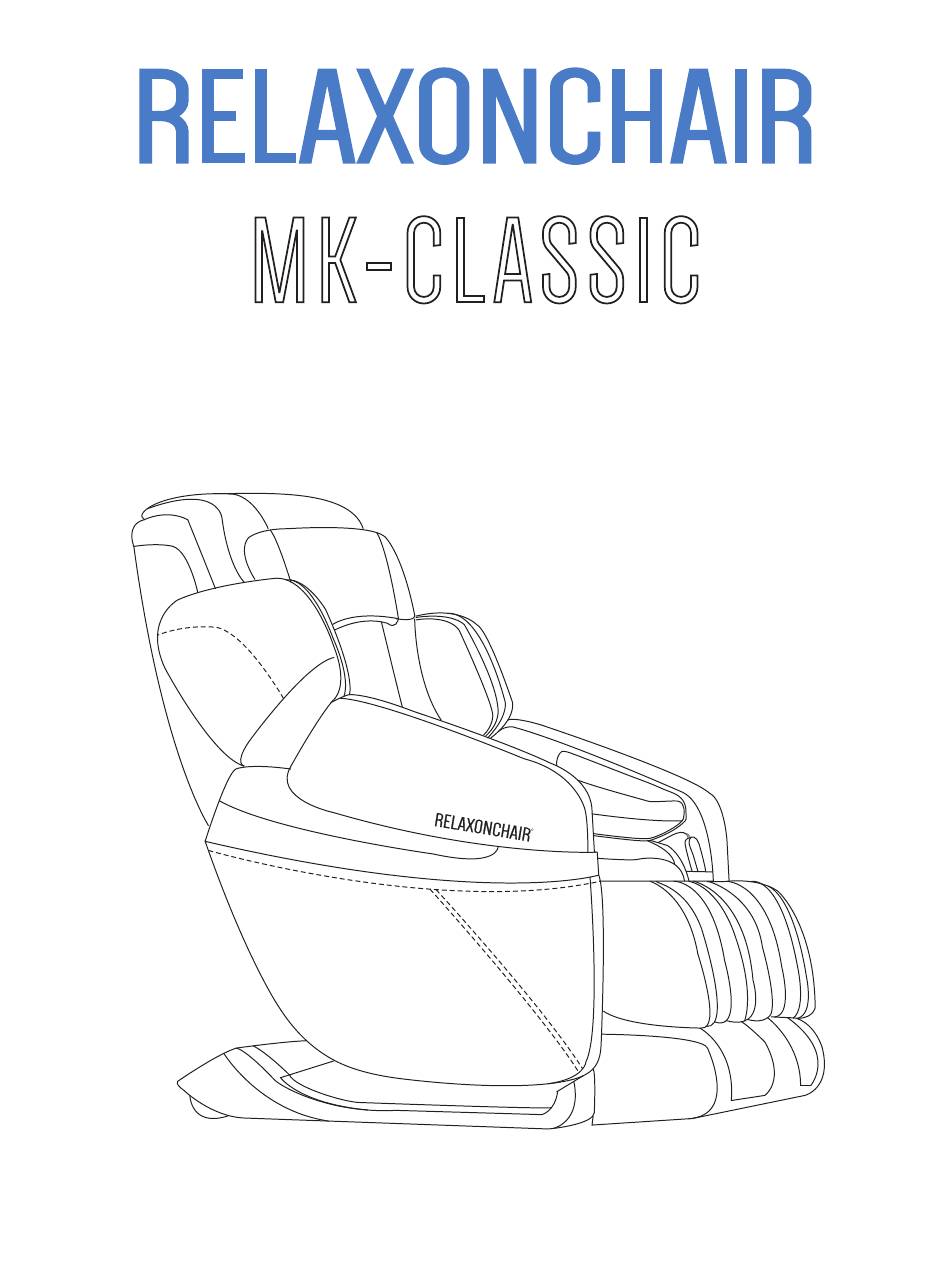

MK-CLASSIC
USER MANUAL
Ver. 2
Please read SAFETY INSTRUCTIONS carefully before using the chair.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MK-CLASSIC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RELAXONCHAIR MK-CLASSIC

Summary of Contents for RELAXONCHAIR MK-CLASSIC

  • Page 1 MK-CLASSIC USER MANUAL Ver. 2 Please read SAFETY INSTRUCTIONS carefully before using the chair.
  • Page 2 RELAXONCHAIR MK-CLASSIC Massage Chair Congratulations and thank you for trusting RELAXONCHAIR. You are about to discover the many joys of owning a premium RELAXONCHAIR™ MK-CLASSIC Massage Chair. Massage, combined with healthy eating, exercise and a good sleep regiment, is a great way to take care of your body & mind, leading to a happy, productive lifestyle.

  • Page 3: Table Of Contents

    Before you start using your RELAXONCHAIR™ MK-CLASSIC Massage Chair, please read this operation manual thoroughly to learn about the correct methods of usage, especially the section on safety. This manual should be kept on hand for easy reference. It is your guide to safe and e cient operation.
  • Page 4 To reduce the risk of burns, fire, electric shock or injury to WARNING - persons: 1. RELAXONCHAIR™ MK-CLASSIC Massage Chair should never be left unattended when plugged in. Unplug from the outlet when it is not in use and before putting on or taking of parts.

  • Page 5: Safety Instructions

    11. To disconnect the chair, turn all control to the off position, to remove the plug from the outlet. 12. Do not stand on or in the MK-Classic Massage Chair. Use only while seated properly. 13. Product is not intended for use by children or persons with reduced physical, sensor...
  • Page 6 SAFETY INSTRUCTIONS CAUTION The RELAXONCHAIR™ MK-CLASSIC Massage Chair is to be used indoors only. If you use the massage chair in a cold room, do not increase the room temperature abruptly. It is recommended that you increase the temperature gradually to a normal level.
  • Page 7 SAFETY INSTRUCTIONS 12. Stop operation immediately if you experience any discomfort. 13. This product is not intended for self-treatment of conditions that should be managed by a qualified health care provider. 14. People on medication or with medical conditions, please consult your doctor before use. 15.
  • Page 8 5. ASSEMBLY AND REPAIR OF THE MASSAGE CHAIR Do not attempt to disassemble the RELAXONCHAIR™ MK-CLASSIC yourself unless instructed to do so by RELAXONCHAIR’s Technical Support Team. Touching the internal components may result in malfunction or electric shock. The Massage Chair must be serviced or repaired by authorized service center.
  • Page 9 SAFETY INSTRUCTIONS 6. THINGS TO NOTE ABOUT THE POWER PLUG AND CORD • Check that the Alternating Current (AC) voltage corresponds with the specification indicated for the massage chair. • Do not connect or disconnect the power plug from the electrical outlet with wet hands. This may result in malfunction or electric shock.

  • Page 10: Product Components

    PRODUCT COMPONENTS OVERVIEW...

  • Page 11: Installation

    INSTALLATION STEP 1: REMOVING THE CHAIR AND PARTS FROM THE PACKAGE 1. Lift and remove main outer carton. 2. Remove cardboard and foam on both sides of the massage chair. 3. Remove accessory box (includes: instructions, power cord etc.). 4. Please check to make sure that everything is included in the box. 5.
  • Page 12 INSTALLATION STEP 2: INSTALLING THE SIDE PANEL 1. Remove the side panels from the carton and take them out to begin assembly. 2. On the right-side panel, locate the gray air nose and two bolts (A and B) on the side panel. Air Nose 3.
  • Page 13 INSTALLATION 4. Partially unscrew bolt A in the side panel and completely unscrew bolt B from the side panel. 5. Lift up the seat cushion and hook the bolt A over C to rest the side panel on the main body. 6.
  • Page 14 INSTALLATION STEP 3: INSTALLING THE SHOULDER AIRBAGS 1. Unzip the black cloth cover on the shoulder Cloth Cover Pegs panel and find a gray air tube. 2. Find two pegs on the back side of the shoulder panel (as shown). Shoulder Panel 3.
  • Page 15 INSTALLATION 7. Connect the air tubes as tight as you can to prevent air leak and loss of pressure during use. 8. Zip up the cloth cover. 9. Adjust the shoulder panel to fit your shoulder position if needed. - You can move the shoulder panel up and down by pulling the rear side of the panel and pressing down the front side of the panel.
  • Page 16 INSTALLATION STEP 4: INSTALLING THE HEADREST AND SEAT CUSHION 1. Use the Velcro strips to connect the backrest and cover. 2. Lift up the seat cushion to find a Velcro strip and attach the extra seat cushion; tuck the strip under the seat and fold it up.

  • Page 17: Adjustments Before Massaging

    ADJUSTMENTS BEFORE MASSAGING 1. MOVING THE MASSAGE CHAIR • Hold the back of the massage chair and push downward to recline the chair to approximately a 45° Angle. • Roll it to desired position, using the rollers located at the rear bottom of the chair. Gently place the chair on the floor.
  • Page 18 ADJUSTMENTS BEFORE MASSAGING 3. POWER ON/OFF • Connect the main power cord located in the back of the chair to standard 110V electrical outlet. • Turn On/Off the main power switch located at the back of the massage chair to power the chair On/Off.

  • Page 19: Manual Control

    MANUAL CONTROL REMOTE CONTROLLER...
  • Page 20 MANUAL CONTROL DISPLAY DIAGRAM 1. Massage chair is powered on. 2. Massage chair is scanning the back contour and preparing for initiation. 3. Scanning is complete and ready for massage programs. 4. Pause button has been pressed and chair is temporarily stopped. 5.
  • Page 21 MANUAL CONTROL DESCRIPTION OF BUTTON FUNCTIONS Start or Stop massage chair • Press this button to turn the massage chair ON. • Press this button again to turn massage chair OFF. Massage function will stop and the massage chair will come back to the original position. When the chair returns to the original position the chair will completely shut off and all buttons will be inactive.
  • Page 22 MANUAL CONTROL AUTO MODE This chair is designed with 7 auto massage modes. FULL BODY • RELIEF • STRECH • QUICK • FULL AIR • YOGA • SLEEP MANUAL MODE Point This button allows you to target certain areas for your back massage. UpperBack >...

  • Page 23: After Massage & Maintenance

    AFTER MASSAGE & MAINTENANCE AFTER MASSAGE 1. After the massage program is completed, return chair to upright position by pressing the On/Off button. Before pressing: • Make sure surrounding area is clear. • Keep arms and legs away from gaps between the armrest, leg rest, and footrest, to prevent possible injury.
  • Page 24 MALFUNCTION GUIDE TROUBLE SHOOTING You may experience the following noises or feeling when in massage, as being due to the mechanical design, they will not have any effect on the operation of the unit and the product life. • A “clatter” noise occurs when the knead balls go up and down •...

  • Page 25: Malfunction Gudie

    MALFUNCTION GUIDE Problems Check Point Troubleshooting Check whether the switch has been Turn on the switch. The unit does not start up. turned on. Check whether the button on the Press the button on the remote remote controller has been pressed. controller.

  • Page 26: Specification

    SPECIFICATION Model: RC-MK CLASSIC Packaging Dimension Qty: 1 Name: Massage Chair N.Weight: 212Lbs G.Weight: 251Lbs Rated Voltage: 110 - 120V, 60Hz Size: 56(L) * 30(W) * 49(H) Inch Rated Power Input: 150W Color: Brown / Gray...
