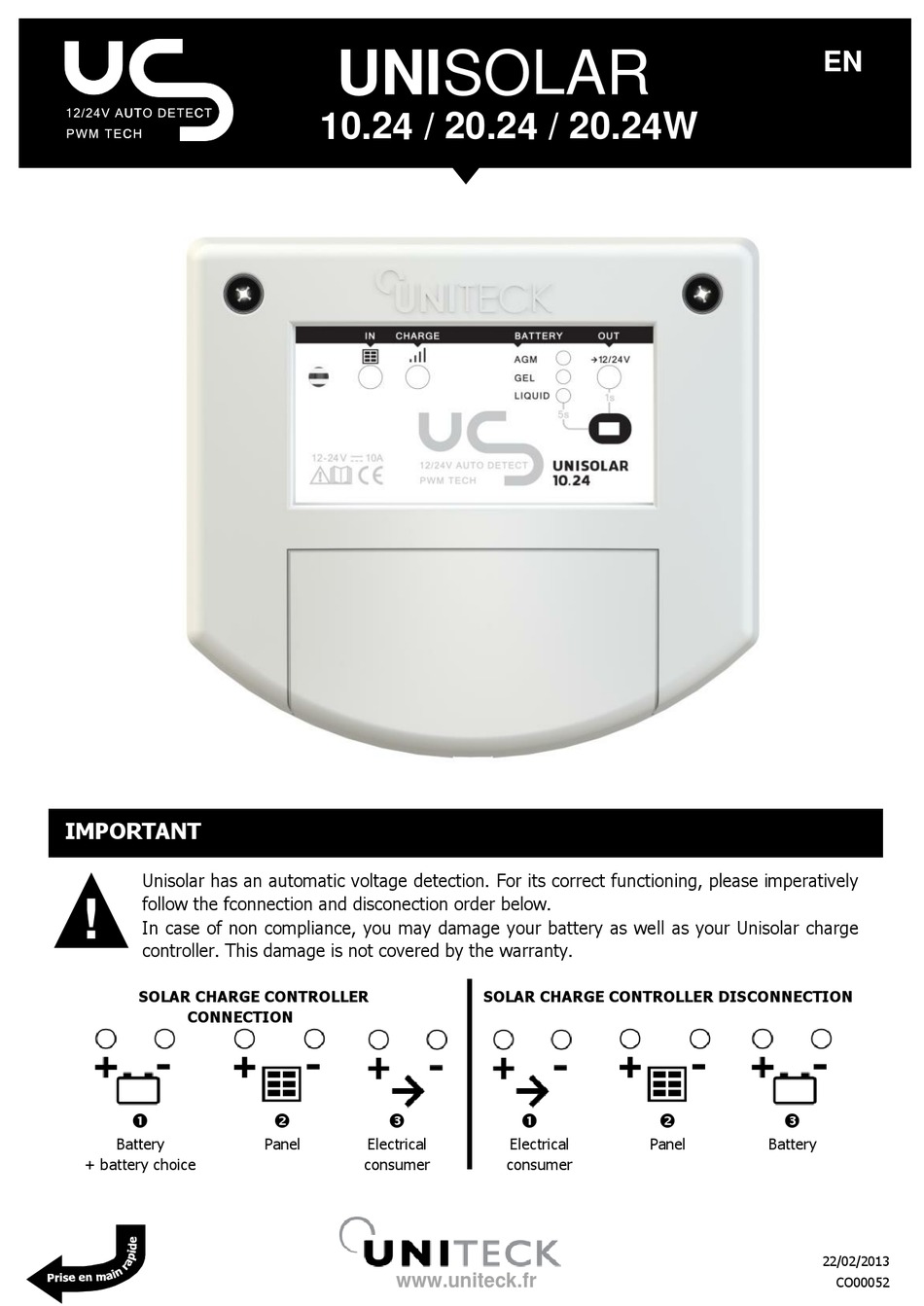

Unisolar 20.24 W
IMPORTANT
Unisolar has an automatic voltage detection. For its correct functioning, please imperatively
follow the fconnection and disconection order below.
!
In case of non compliance, you may damage your battery as well as your Unisolar charge
controller. This damage is not covered by the warranty.
SOLAR CHARGE CONTROLLER
CONNECTION
Battery
+ battery choice
UNISOLAR
10.24 / 20.24 / 20.24W
Panel
Electrical
consumer
www.uniteck.fr
SOLAR CHARGE CONTROLLER DISCONNECTION
Electrical
Panel
consumer
EN
Battery
22/02/2013
CO00052
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Uniteck UNISOLAR 10.24
Summary of Contents for Uniteck UNISOLAR 10.24
- Page 1 In case of non compliance, you may damage your battery as well as your Unisolar charge controller. This damage is not covered by the warranty. SOLAR CHARGE CONTROLLER SOLAR CHARGE CONTROLLER DISCONNECTION CONNECTION Battery Panel Electrical Electrical Panel Battery + battery choice consumer consumer 22/02/2013 www.uniteck.fr CO00052...
- Page 2 Dear customers, thank you very much for purchasing one of our Uniteck products. Please read carefully and thoroughly all the instructions before using the product. DESCRIPTION Unisolar is a solar charge controller for autonomous photovoltaic system. Through its integrated microprocessor, Unisolar regulates the charging current coming from the panel...
- Page 3 To provide the required air circulation for cooling the solar charge controller, let a 5 cm free space (minimum) all around the product. Unisolar 10.24 : Wall mounting 97 mm Fix directly the...
- Page 4 4 screws (not provided) Unisolar 20.24W : Din Rail mounting Clip the Unisolar on its bracket Clip the bracket on the rail and drag it onto the rail where you want it to be www.uniteck.fr 4/16...
- Page 5 Before connecting your consumers to the solar charge controller and to prevent the solar charge controller snapping into overload protection, check that the consumers do not exceed the Unisolar power rating (Refer to the 12V/24V controlled output part for more details). www.uniteck.fr 5/16...
-
Page 6: Installation & Connection
Connect your consumer to the solar charge controller (+ and -) In case of disconnection, follow the opposite order. NB : the solar charge controller earth ground is not necessary. If you still want to do an earthing, always do it on the positive cables. www.uniteck.fr 6/16... - Page 7 Unisolar, thus use more the battery. However, the overload protections and more importantly the battery undervoltage will not be ensured. You will have to ensure, by yourself, the surveillance of the installation thanks to battery status lights and to cut off the consumers if necessary. www.uniteck.fr 7/16...
- Page 8 12V/24V CONTROLLED OUTPUT DISPLAY (ACCORDING TO THE BATTERY) Red light on : Blinking read : Active output Overconsumption or short circuit Red + Flash Off : Inactive output www.uniteck.fr 8/16...
- Page 9 The battery charge is complete. Green light "charge" begins to Float charging (U) : blink. Unisolar continues to release a very low current to offset battery self discharge Voltage threshold Liquid Boost 14,2 V 14,4 V 14,6 V Equalisation (2H length) 14,6V 14,8V Floating 13,8V 13,8V 13,8V www.uniteck.fr 9/16...
- Page 10 Protection against battery overconsumptions (controlled output), Battery overvoltage or under voltage protection (controlled output), Protection against deep discharges (controlled output). - Consumers polarity reversal protection (protects the solar charge controller, not the consumer), - Protection against short circuits in output. - Thermal protection. www.uniteck.fr 10/16...
- Page 11 Battery overvoltage (green) battery coupling does not exceed the voltage accepted Green + by the solar charge controller Flash (12V/24V) Usual charge, light goes Orange charge light Battery discharged green as soon as the battery is charged. Orange www.uniteck.fr 11/16...
- Page 12 Solar charge controller in a charge controller - Liquid protection state. Charge and Blinking consumers are cut As soon as the solar charge simultaneously controller gets back to its normal functionning temperature, it will restart automatically. www.uniteck.fr 12/16...
- Page 13 Protected against foreign bodies IP23 Protected against foreign bodies larger (10-24 larger than 1 mm and against (20- than 12 m and against rain striking at angles /20-24) splash water from all directions. 24W) up to 60° from vertical. www.uniteck.fr 13/16...
-
Page 14: Technical Specifications
-35°C > +55°C -35°C > +55°C -35°C > +55°C Storage temperature -35°C > +80°C -35°C > +80°C -35°C > +80°C NDER LOAD DISCONNECTION Low voltage warning 12V/24V 12V/24V 12V/24V Consumer disconnection 11,1V/22,2V 11,1V/22,2V 11,1V/22,2V Consumer resetting 12,6V/25,2V 12,6V/25,2V 12,6V/25,2V www.uniteck.fr 14/16... -
Page 15: Compliance Statement
COMPLIANCE STATEMENT UNITECK testifies that the solar charge controllers described in this manual : UNISOLAR 10.24 / 20.24 /20.24W are manufactured in compliance with the following European directives : - Low voltage directive : 2006/95/CE from the 12/12/06. - EMC directive : 2004/108/CE from the 15/12/2004- 03/05/1989. - Page 16 Controlled output light: - On : light switches on - Off : light off SOLAR CHARGE CONTROLLER CONNECTION SOLAR CHARGE CONTRÔLE DISCONNECTION Battery Panel Consumers Consumers Panel Battery + battery selection www.uniteck.fr 16/16...
