RDS TGSS MK3V Operation, Installation And Calibration Instructions

Introduction
The RDS True Ground Speed Sensor provides a forward speed signal for use with any of the range of RDS
instruments or to any other control or logging system. The sensor can be used on agricultural vehicles, on-road
vehicles, rail vehicles, and can be used over almost any surface (except a perfectly smooth, reflecting surface).
The sensor is classed as a "Low Power Microwave Device" operating at 24.125 GHz producing 5mW of power.
This meets performance specification MPT 1349 and complies with The Wireless Telegraphy (Exemption)
Regulations 1991 (S1 1991/1523). No operators Licence is required.
Kit Contents
The kit contains the following components ("#" - part not illustrated).
Item Part Number
1 S/SR/168-13-003
2 S/BK/168-12-010
3 S/FR/500-6-070
4 S/FSNR/301
5 S/F715-004
6 S/FSNR/940122
7 S/FR/500-5-006
87 S/FSNR/407
# S/CB/220-1-002
# S/DC/500-10-702
# S/DC/500-10-704
Figure 1
Mounting Adaptor Kit - K/ TGSS/ADAPT (optional)
Item Part Number
1 S/BK/168-13-005
2 S/FR/500-6-071
3 S/FR/500-6-055
4 S/FSNR/227
Doc. No. S/DC/500-10-702 : Issue 4 - 2.8.12
Description

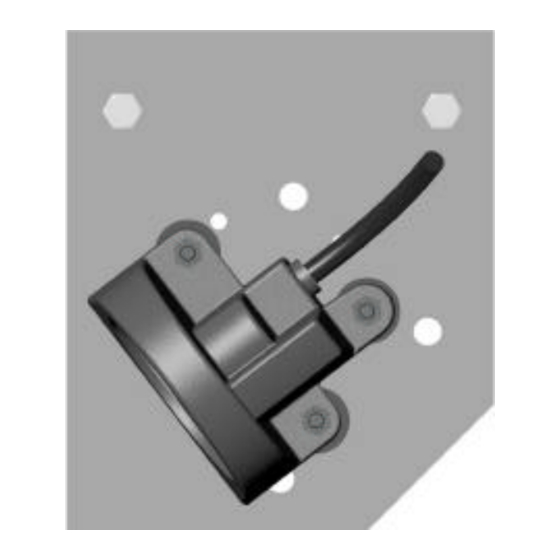

Mk3V Radar Sensor 24.125 GHz (Standard Weatherpack)
Mk3P/Mk3V Radar Sensor Bracket
M6 x 12 Hex Set Screw
M6 Spring Washer
M6 Plain Washer
M8 x 45 Hex. Set Screw
M8 Plain Washer
M8 Nyloc Nut
Extension lead
Instruction leaflet
Self-adhesive Mounting Template
6
1
2
Description
Adaptor Plate
M6 x 10 Socket Countersink Head Screw
M10 x 35 Hex. Set Screw
M10 Nyloc Nut
Page 1
TGSS MK3V RADAR SENSOR
K/TGSS/MK3V and K/TGSS/ADAPT
Installation and Calibration Instructions
7
5
4
Qty
1
1
3
3
3
2
2
2
1
1
1
8
3
Qty
1
3
3
3
UK702400.DOC
