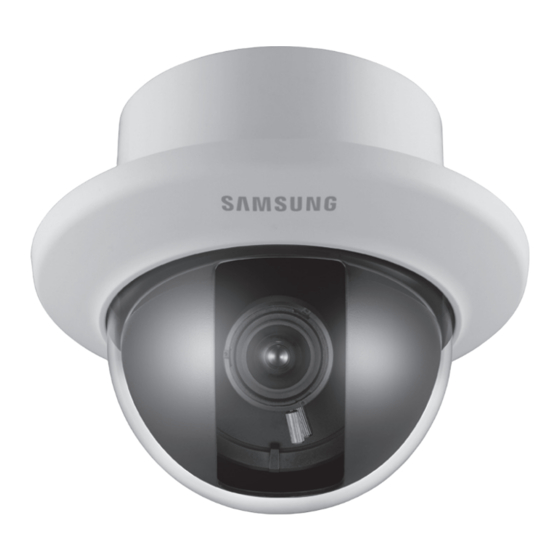

- Page 1 Super High Resolution UTP Dome Camera SUD-3080F User Guide Before installing and operating this product, please read this manual thoroughly. ENGLISH...
- Page 2 Before operating the camera, confirm the camera model and correct input power voltage. To help you understand this manual thoroughly, we'll introduce our model description. I SUD-3080F SERIES • NTSC MODELS • PAL MODELS SUD-3080FN SUD-3080FP The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous...
- Page 3 VPS(Virtual Progressive Scan) DAY/NIGHT Reduction) Function PROFILE The high-performance SV-V DSP chip effectively Adopting Samsung’s unique development, the VPS removes low-light gain noise and afterimage to SPECIAL (Virtual Progressive Scan) enhances the sharpness of provide clear images even in dark environments.
- Page 4 Features Samsung Techwin cares for the environment at all product manufacturing Contents stages to preserve the environment, and is taking a number of steps to provide customers with more environment-friendly products. The Eco mark represents Samsung Techwin's will to create environment-friendly products, and...
- Page 5 • Exposure to a spotlight or an object emitting strong light may cause smear or blooming. • Ensure that the power source complies with normal specifications before supplying it to the camera. May cause a product malfunction. May damage the CCD. COLOR DOME CAMERA SUD-3080F COLOR DOME CAMERA SUD-3080F...
- Page 6 Rotate Body : Control rotating angle of camera. ➌ x3.9 Vari-focal Lens Module 2.8 ~ 11mm (F1.2) ➍ Super High Resolution UTP Dome Camera SUD-3080F User Guide Flush Housing Before installing and operating this product, please read this manual thoroughly.
- Page 7 * To install the dome cover on the camera body, turn the latches in locking direction as shown in the figure 1. Latch Main Body (Camera) Locking direction [Figure 1] Shield Case Unlocking direction Locking direction (Anti-clockwise) (Clockwise) Dome cover COLOR DOME CAMERA SUD-3080F COLOR DOME CAMERA SUD-3080F...
- Page 8 ➋ Adjust the tilting angle by rotating the tilt base. ➌ Loosen the rotate base hold screw and adjust rotate base for the best view. ➍ Tighten the rotate base hold screw. COLOR DOME CAMERA SUD-3080F COLOR DOME CAMERA SUD-3080F...
- Page 9 UTP Power Supply Link Setup 2) Adjust the zoom(focus) by moving the handle to WIDE(FAR) or TELE(NEAR). 3) After adjustment, tighten the zoom (or the focus) handle, taking care that the adjusted 1. SUD-3080F 4Ch Power Supply 4Ch Receiver DVR/Monitor/Controller position does not change.
- Page 10 VIDEO (-) / RS-485 (-) White+Green RS485 (+) VIDEO (+) / RS-485 (+) The SUD-3080F uses UTP cable to receive its power (AC24V/AC28V) from the Power Supply. Blue POWER (-) VIDEO (-) / RS-485 (-) Therefore, a separate adapter is not required. Please refer to the RJ-45 Connector...
- Page 11 5C2V(RG-6/U) 600m 7C2V(RG-11/U) Notes • It is recommended that pure copper coax cable is used and not copper coated steel, as this will cause issues with the communication over the coaxial cable. COLOR DOME CAMERA SUD-3080F COLOR DOME CAMERA SUD-3080F...
- Page 12 Setup switch so that the arrow indicates ‘EXPOSURE’. 4. To finish the setting, select ‘EXIT’ and press the Function Setup switch . 2. Select a desired mode using the Function Setup switch. COLOR DOME CAMERA SUD-3080F COLOR DOME CAMERA SUD-3080F...
- Page 13 ATW or AWC mode. After that switch to MANUAL mode, fine- - OFF : Deactivates the SENS-UP function. tune the White Balance and the Function Setup switch. - AUTO : Activates the SENS-UP function. COLOR DOME CAMERA SUD-3080F COLOR DOME CAMERA SUD-3080F...
- Page 14 BACKLIGHT The SUD-3080F is designed so that it delivers a distinctive subject and background at the same time, even when the subject is in backlight, by adopting a function of the proprietary SV-V DSP chip.
- Page 15 • If you use the VPS (Virtual Progressive Scan) function, the CCD reads differently so you can not use WDR simultaneously. If you set VPS to ON, WDR will be automatically set to FIXED Mode. Setup switch so that the arrow indicates ‘DAY/NIGHT’. COLOR DOME CAMERA SUD-3080F COLOR DOME CAMERA SUD-3080F...
- Page 16 ITS : It will be set automatically so you can easily check the traffic conditions. COLOR : The picture is always displayed in color. : The picture is always displayed in black and white. You can turn on or off the burst signal on B/W mode. COLOR DOME CAMERA SUD-3080F COLOR DOME CAMERA SUD-3080F...
- Page 17 Monitor : Please change the settings value of video appropriate to your monitor. 9.EXIT SAVE LCD : Please select this menu item when using an LCD monitor. You can change the gamma, PED level and color gain in the sub menus. COLOR DOME CAMERA SUD-3080F COLOR DOME CAMERA SUD-3080F...
- Page 18 To edit a letter, change the cursor to the bottom left arrow and press the SPECIAL menu. Function Setup switch. Move the cursor over the letter to be edited, move the cursor to the letter to be inserted and then press the Function Setup switch. COLOR DOME CAMERA SUD-3080F COLOR DOME CAMERA SUD-3080F...
- Page 19 - RETURN : Select this to save the POSITION menu settings and return to the TRACKING menu. RETURN : Select this to save the TRACKING menu settings and return to the INTELLIGENCE menu. COLOR DOME CAMERA SUD-3080F COLOR DOME CAMERA SUD-3080F...
- Page 20 TOP / BOTTOM / LEFT / RIGHT : Adjust the size and position of the selected area. • DIS doesn’t operate when object pattern is monotonic as like sky or white wall. COLOR DOME CAMERA SUD-3080F COLOR DOME CAMERA SUD-3080F...
- Page 21 DISP ID : Display camera title on top left corner of the screen. PROTOCOL : Select the communication PROTOCOL. (SAMSUNG-T, SAMSUNG-E , PELCO-D, PELCO-P, BOSCH, HONEYWELL, VICON and PANASONIC) RETURN : Select this to save the PRIVACY menu settings and return to the SPECIAL menu.
- Page 22 Troubleshooting Specifications If you have trouble operating your camera, refer to the following table. SUD-3080F NTSC SUD-3080F PAL If the guidelines do not enable you to solve the problem, contact an authorized technician. ELECTRICAL Nothing appears on the screen. Input Voltage AC 28V±10% / AC 24V±10% / DC 12V±10%...
- Page 23 OFF / ON (12 Programmable zones, Polygonal type) Digital Image OFF / ON Stabilization(DIS) Coaxial Communication Pelco Coaxitron RS-485 Communication SAMSUNG-T, SAMSUNG-E, PELCO-D, PELCO-P, BOSCH, HONEYWELL, VICON, PANASONIC ENVIRONMENTAL Operating Temperature / -10°C ~ +50°C / Less than 90% RH Humidity...
- Page 24 DECLARATION OF CONFORMITY MEMO Application of Council Directive(s) 2004 / 108 / EC Manufacturer's Name SAMSUNG TECHWIN CO., LTD Manufacturer's Address SAMSUNG TECHWIN CO., LTD 42, SUNGJU-DONG CHANGWON-CITY, KYUNGNAM, KOREA, 641-716 European Representative Name European Representative Address Equipment Type/Environment CCTV Camera...
