Overview Titan Servotorq OVU00212 Quick Start Manual

Quick Start Guide


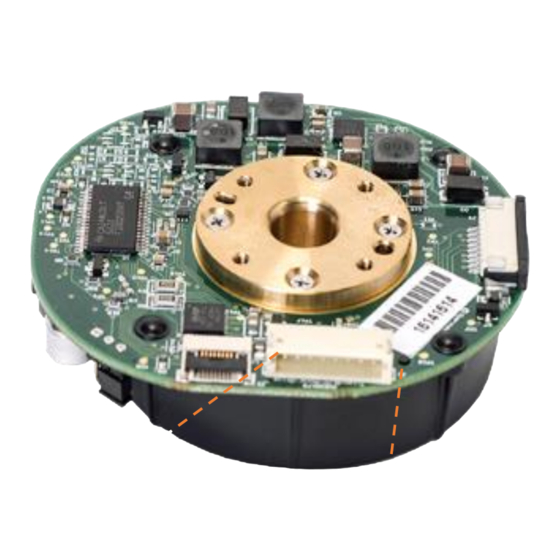

Titan
Servotorq™ Intelligent Servo Motor
Part No. OVU00212 – OVU00213 and Variants
Thank you for purchasing Overview's Titan Integrated Servo Motor.
To quickly get up and running with your Titan motor, please refer to the
Technical Manual, I²C Protocol Guide and Application Notes located at:
Please observe the following precautions when handling and

Reference Information:

The Titan I²C control interface uses 3.3V and requires pull-ups to this voltage. Do
NOT use higher voltages. Please see the Technical Manual for further details and a
reference interface circuit.
Warning: If Battery powered the drive will require Surge, In-Rush Current, Reverse
Polarity and Overvoltage Protection.
Overview House Kingswey Business Park Forsyth Road Woking GU21 5SA United Kingdom
© Overview Ltd 2023
http://www.overview.co.uk/technical-support/
operating the Titan motor:
• The Titan motor uses semiconductors which can be damaged
by electrostatic discharge (ESD). The motor must be handled
and stored in an ESD safe environment.
• The Titan motor's nominal supply is 12V DC (Operating Voltage
is 9.6-15.5V), using up to 600mA DC. Do NOT hot-plug the
power supply.
Beware! When the drive is powered, it will rotate. This is part of
the initialisation process and is outlined in the Technical Manual.
During this process the drive will draw current up to the
maximum rated value.
www.overview.co.uk
Overview Limited
OVZ20018 Rev 3
