Quick Start Guide
Titan

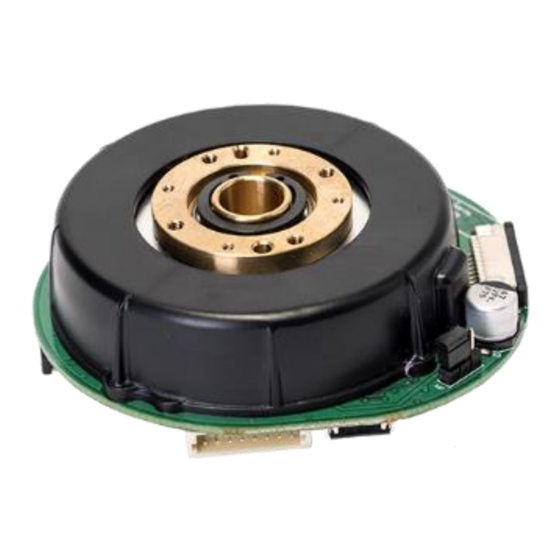

Servotorq™ Integrated Servo Motor
Item No. OVU00212 & OVU00213
Thank you for purchasing Overview's Titan Servotorq Intelligent Servo Motor.
To quickly get up and running with your Titan motor, please refer to the
Technical Manual, the I²C Protocol Guide and Application Notes located at:
Please observe the following precautions when handling and
Reference Information:
When initially powered up, the Titan motor will perform an initialisation routine as
detailed in the Technical Manual. During this routine, the unit will rotate and temporarily
draw the max rated current.
Overview House Kingswey Business Park Forsyth Road Woking GU21 5SA United Kingdom
© Overview Ltd 2021
http://www.overview.co.uk/technical-support/
operating the Titan motor:
•
The Titan motor uses semiconductors which can be damaged by
electrostatic discharge (ESD). The motor must be handled and
stored in an ESD safe environment.
•
The Titan motor supply voltage is 12V DC, using up to 600mA.
Do not hot-plug the power supply.
•
I²C interface voltage is 3.3V and requires pull-ups to this voltage.
It is not tolerant of higher voltages, e.g. 5V.
www.overview.co.uk
Overview Limited
OVZ20018 Rev 2
