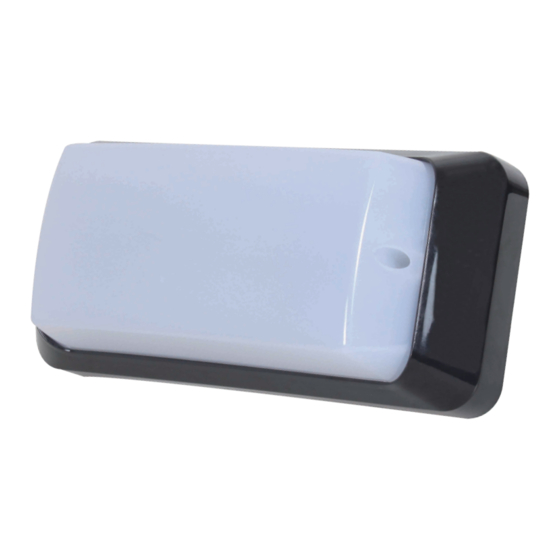

pdlux PD-LED2045-D Instructions

Black White
Packing list in
Quantity
Digital intelligent microwave sensor
1X
LEDS 60PCS
LED lights
2X
Φ6 Plastic expansion
2X
3x30 Screw
2X
Screw stopper
IP 65

Specifications

Power source: 100-130VAC
220-240VAC
Power frequency: 50/60Hz
Rated load: 12W Max.
Detection range: 2m-4m-6m-8m(radii.) (adjustable)
Time Setting: 10sec/2min/6min/12min (adjustable)
Light-control: 50LUX (night light)
2000LUX(day light) (adjustable)
Luminous flux: 930 lm (100% Brightness)
110 lm (10% Brightness)
The names of each part
Lampshade
fixed hole
Lamps shell PC lampshade
Digital intelligent microwave sensor
LED lights PD-LED2045-D instruction
280mm
Summary
As a modern illuminant, LED has become a development trend in the lighting
industry due to the characteristics of high efficiency, long life expectancy and
relatively low energy consumption. How to use it reasonably and efficiency is
the key issue in the lighting industry. PD-LED2045-D is a microwave sensor
switches controlled LED lights,the microwave sensor was built into the light ,it
has 60pcs high brightness LEDs inside ,with total power of 12 watts. The
reasonable LED layout makes a homogeneous heat flow and achieves the
most optimized luminous efficiency.The luminance is higher than 60W
incandescent lamp when it works, and the life time is much longer than the
common halogen lamp. We adopt this sensitive advanced sensor switchs in
lighting control, enabling the light to turn on automatically when one comes ,
automatically turn off when one goes out. It's a very ideal substitute as an
energy-saving illuminant. The light IP rating is IP65, it's good Waterproof
product and can be widely installed in the outdoor.
Lampshade
fixed hole
93.3mm
Color temperature: 3800-4200K
Material: Boden:PC Lampshade:PC
Protection: IP65
Standby power: <0.5W
LED quanlity: 60PCS
LED specifications: T2835
Working temperature: –10°C ~ +40°C
Working humidity: <95%RH
Installation height: 1.5-3m (wall installation)
Microwave sensor
The screw hole
Threading hole
Power source
Wiring
4mm
80mm
180mm
The screw hole
Threading hole
