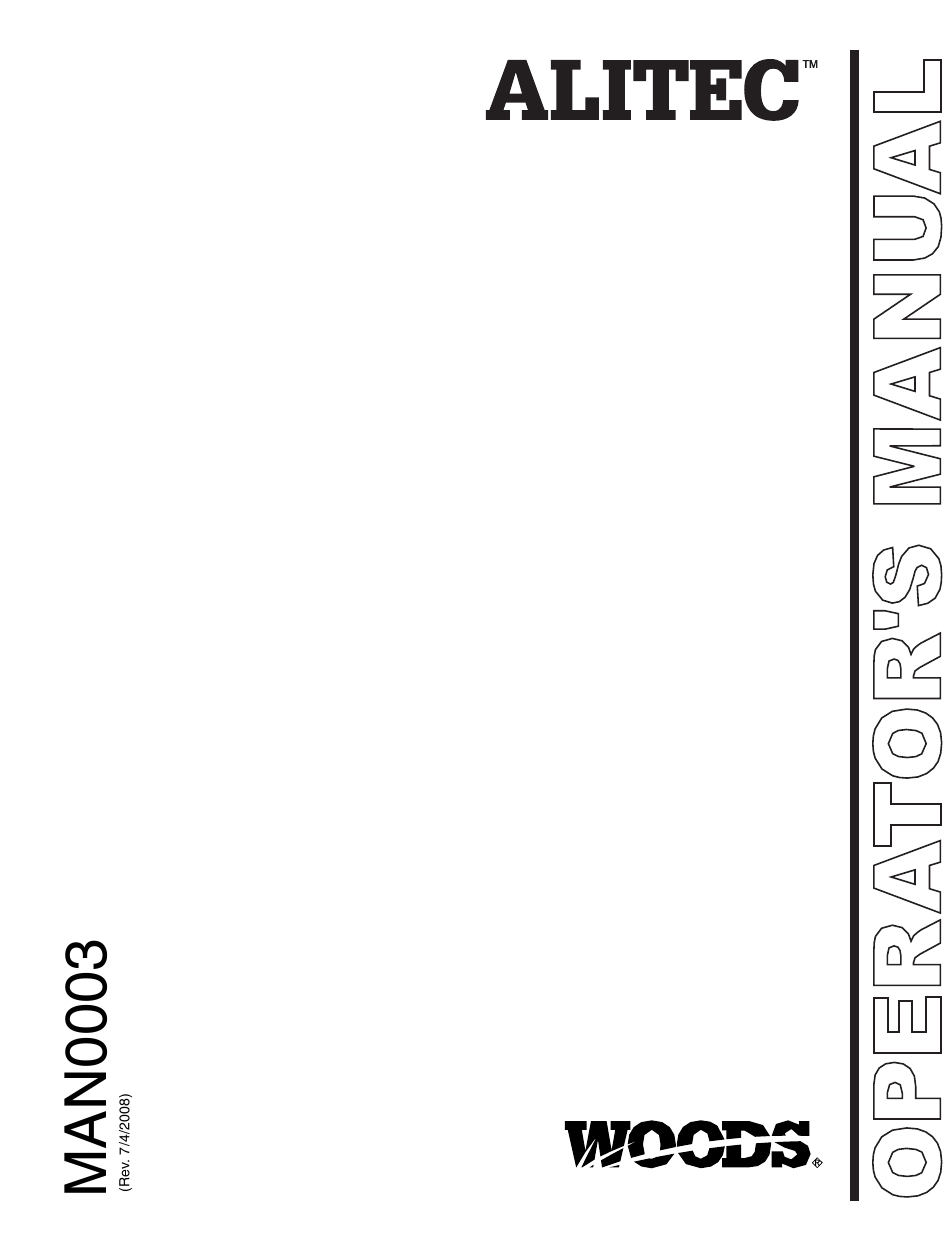

- Page 1 SKID STEER TILLER TL52 TL73 TL84 Effective Serial Numbers: TL52A 4200690202 TL73A 4300730102 TL84A 5600020102 Tested. Proven. Unbeatable.
-
Page 2: Introduction
Operator’s Manual. If using the mail-in form, the dealer is to return the prepaid postage portion to Woods, give one copy to the customer, and retain one copy. Failure to register the product does not diminish customer’s warranty rights. -
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ..........2 GENERAL INFORMATION . -
Page 4: General Information
GENERAL INFORMATION The purpose of this manual is to assist you in operating The illustrations and data used in this manual were cur- and maintaining your tiller. Read it carefully. It furnishes rent at the time of printing but, due to possible inline information and instructions that will help you achieve production changes, your machine may vary slightly in years of dependable performance. -
Page 5: Safety Rules
SAFETY RULES ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! Make sure that all operating and service person- Safety is a primary concern in the design and nel know that if hydraulic fluid penetrates skin, it manufacture of our products. Unfortunately, our must be surgically removed as soon as possible by efforts to provide safe equipment can be erased a doctor familiar with this form of injury or gan-... - Page 6 SAFETY RULES ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! Do not operate or transport equipment while (Safety Rules continued from previous page) under the influence of alcohol or drugs. Be sure attachment is properly secured, adjusted, and in good operating condition. Coupler Operate only in daylight or good artificial light.
- Page 7 SAFETY RULES ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! (Safety Rules continued from previous page) Never perform service or maintenance with engine running. MAINTENANCE Keep all persons away from operator control Before leaving operator's seat, follow power area while performing adjustments, service, or unit manual instructions.
-
Page 8: Safety Decals
SAFETY & INSTRUCTIONAL DECALS ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! Replace Immediately If Damaged! 1 - Serial Number Plate 2 - PN 54519 3 - PN D0200 4 - PN D0209 ARNING WARNING FALLING OFF CAN RESULT IN BEING RUN OVER. ■... - Page 9 Replacement safety decals can be ordered free from your Woods dealer. To locate your nearest dealer, check the Dealer Locator at www.WoodsEquipment.com, or in the United States and Canada call 1-800-319-6637.
-
Page 10: Operation
OPERATION ___ Keep all bystanders away from equipment work- ARNING ing area. ___ Check that all hydraulic hoses and fittings are in good condition and not leaking before starting Safety instructions are important! Read all power unit. attachment and power unit manuals; follow all safety rules and safety decal information. - Page 11 depth skid for the desired cutting depth. Reinstall the two bolts and torque to 250 lbs-ft (325 N-m). Figure 2. Roll the skid steer arms back until the tiller is com- 1. 5.50" Cutting Depth pletely off the ground. Engage the parking break on the 2.
- Page 12 NOTICE CLEANING ■ To avoid tiller and motor damage, stop prime After Each Use mover hydraulic flow. Allow tiller to stop com- ● pletely before changing direction of rotation. Remove large debris such as clumps of dirt, grass, crop residue, etc. from machine. For maximum productivity and to maintain optimal ●...
-
Page 13: Troubleshooting 13
TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTION Drum will not rotate Auxiliary hoses are not hooked up Inspect connections visually (make to skid steer sure QD’s are fully engaged). There is an obstruction in one or Remove and inspect hoses both of the auxiliary hoses visually. - Page 14 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTION Excessive oil temperature Obstruction in one or both auxiliary Visually inspect and replace hoses hoses as necessary. Hydraulic oil level on skid steer is Refer to skid steer owner’s manual. Hydraulic oil in skid steer is dirty Refer to skid steer owner’s manual.
-
Page 15: Service
SERVICE DRUM REMOVAL Rotate the tiller so it rests on the attach wings as shown in Figure 5. Use a hoist to support the drum at the midpoint. Figure 7. Remove the coupler bolt (3) and the coupler (4) from both sides of the drum as shown in Figure 8. - Page 16 Use an extension and a 1/2” twelve point socket to hold motor bolts from the inside and remove the four 1/2” nuts (4) from the bottom as shown in Figure 12. Figure 9. Remove the two depth skid bolts (1) and four motor housing bolts (2) from one side as shown in Figure 10.
- Page 17 DRUM INSTALLATION Rotate the tiller chassis (1) so that it rests on the attach bracket as shown in Figure 17. Figure 14. TL52 and TL73 Install motor housing (5) into one side of the chassis using four 1/2” x 1-1/2” bolts (6), eight 1/2” flat washers DP12 (7) and four 1/2”...
- Page 18 DP10 Figure 19 Use a hoist to lift the drum. Make sure the coupler is aligned with the motor shaft and insert motor shaft into drum as shown in Figure 20. DP12 Figure 21. Assemble the depth skid on either side of the chassis, using an additional two 5/8"...
- Page 19 TINE REPLACEMENT To replace worn or broken tines (1), remove the 1/2" nut (3) and bolt (2) as shown in Figure 23. Remove the worn or broken tine and replace with a new tine. Install 1/2" x 1-1/2" - 20 bolt (2) and 1/2" - 20 nut (3). Torque to 50 lbs-ft (68 N-m).
-
Page 20: Parts Index
DRUM ASSEMBLY PART DESCRIPTION PART DESCRIPTION 59000 24 Bolt, 1/2 NF x 1-1/2 GR8 ZP TL52 101533 24 Tine, TL52 59000 24 Bolt, 1/2 NF x 1-1/2 GR8 ZP TL73 101533 36 Tine, TL73 59000 24 Bolt, 1/2 NF x 1-1/2 GR8 ZP TL84 101533 40 Tine, TL84 105170...
