User Manual
MELAdest

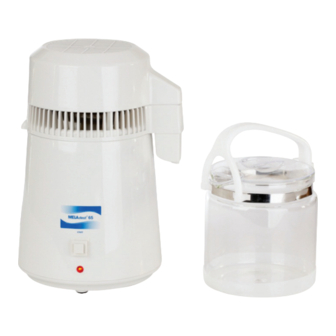

Water distiller
EN
Dear customer,
We thank you for your confidence demonstrated by the purchase of this MELAG product. As an owner-run and operated
family concern founded in 1951, we have a long history of successful specialization in hygiene products for practice-
based use. Our focus on innovation, quality and the highest standards of operational reliability has established MELAG
as the world's leading manufacturer in the instrument reprocessing and hygiene field.
You, our customer are justified in your demand for the best products, quality and reliability. Providing
hygiene"
and
"Quality – made in
agement system is subject to close monitoring: one instrument to this end is our annual multi-day audit conducted in ac-
cordance with EN ISO 13485. This guarantees that all MELAG products are manufactured and tested in accordance with
strict quality criteria.
The MELAG management and team.
®
65
Germany", we guarantee that these demands will be met. Our certified quality man-
"competence in
Advertisement
Table of Contents
Related Manuals for MELAG MELAdest 65
Summary of Contents for MELAG MELAdest 65
- Page 1 Water distiller Dear customer, We thank you for your confidence demonstrated by the purchase of this MELAG product. As an owner-run and operated family concern founded in 1951, we have a long history of successful specialization in hygiene products for practice- based use.
-
Page 3: Table Of Contents
Contents Contents 1 General guidelines ................................ 4 Symbols used.................................. 4 Formatting rules ................................... 4 Disposal .................................... 4 2 Safety..................................... 5 3 Description of the device.............................. 6 Intended use .................................. 6 Functional principle ................................ 6 Scope of delivery.................................. 6 Views of the device ................................ 7 4 Commissioning.................................. 8 Fitting the glass flask................................ 8 Before commissioning................................ 9 5 Operation .................................... 11 Producing distilled water .............................. 11... -
Page 4: General Guidelines
Make sure that you always have access to digital or printed version of the user manual. Should the manual no longer be legible, is damaged or has been lost, you can download a new copy from MELAG down- load centre at www.melag.com. -
Page 5: Safety
2 Safety 2 Safety When operating the device, comply with the following safety instructions as well as those contained in subsequent chapters. Qualified personnel Only competent and trained personnel may use the device. Cable and power supply Only operate the device with the original power supply. Disconnect the device from the mains during long downtimes. -
Page 6: Description Of The Device
3 Description of the device 3 Description of the device Intended use The MELAdest 65 water distiller enables the production of distilled water. Water of drinking water quality is required as a prerequisite, e.g. tap water. The device does not provide germ-free water. MELAdest 65 is intended for use in the med- ical field, e.g. -
Page 7: Views Of The Device
3 Description of the device Views of the device Water distiller Distilling chamber START/RESET button Control lamp Power cable Socket for connection cable Connection cable Discharge opening Upper section of the distilling chamber Glass flask Spout cover Handle Glass flask cover Adapter cover Plastic guard ring Glass flask... -
Page 8: Commissioning
4 Commissioning 4 Commissioning Fitting the glass flask Remove the glass flask from the water distiller. Remove all the individual parts from the glass flask carefully. Remove the packaging from the individual parts. Place the glass flask in the plastic guard ring. Loosen a screw on the metal collar on the neck of the glass flask. -
Page 9: Before Commissioning
4 Commissioning Place the adapter cover (pos. c) and the spout cover (pos. d) on the lid of the glass flask. If the covers are not needed, they can be placed on the corresponding mounts. Place the holder for the adapter cover (pos. e) on the grip end. For safe storage during operation, the adapter cover can be placed on the latching lugs (pos. f) of the holder. - Page 10 4 Commissioning Cleaning the distilling chamber Although the distilling chamber of the MELAdest 65 has been cleaned with the greatest of care, manufacturing, packag- ing and dispatch procedures could result in the presence of harmless residues of various substances. As a result, the distilled water produced during initial commissioning could assume an undesired odour.
-
Page 11: Operation
Allow the device to cool down for approx. 30 min. Dry the inside of the distilling chamber with a cloth to prevent corrosion. TIP: To check the conductivity of the water produced (aqua dest), MELAG recommends the MELAtest 60 conductivity meter. -
Page 12: Maintenance
6 months Removing limescale deposits Decalcify the inside of the distilling chamber when there are heavy limescale deposits or after 6 months at the latest. MELAG recommends the use of the MELAdest cleaning agent. -
Page 13: Malfunctions
7 Malfunctions 7 Malfunctions Event Possible cause What you can do No distilled water is produced The plug is not in the socket Check the plug Socket is defective Check the electricity supply on the socket Upper section connection cable is Connect the connection cable to the not on the distilling chamber distilling chamber... -
Page 14: Technical Data
8 Technical data 8 Technical data Device type MELAdest 65 Height 38 cm Diameter 23 cm Dimensions glass flask (Ø x H) 18 x 18.3 cm Empty weight 4.2 kg Capacity approx. 1 l/h Conductivity of the distilled water 2-3 µS/cm... -
Page 15: Accessories And Spare Parts
You can obtain the specified articles and an overview of further accessories from your stockist. Article Art. no. Water storage container of MELAdest 65 (glass fask) ME01067 Cleaner for chamber MELAdest 65 (cleaning agent for MELAdest 65) ME01068 MELAtest 60 conductivity meter (to check the water quality) ME01060... -
Page 16: Glossary
Glossary Glossary Conductivity is the ability of a conductive chemical substance or mixture of substances to conduct or transfer energy or other sub- stances or particles in space. Distilled water From the Latin aqua destillata; also referred to as aqua dest;... - Page 18 MELAG Medizintechnik GmbH & Co. KG Geneststraße 6-10 10829 Berlin Germany Email: info@melag.com Web: www.melag.com Original instructions Responsible for content: MELAG Medizintechnik GmbH & Co. KG We reserve the right to technical alterations Your stockist...
