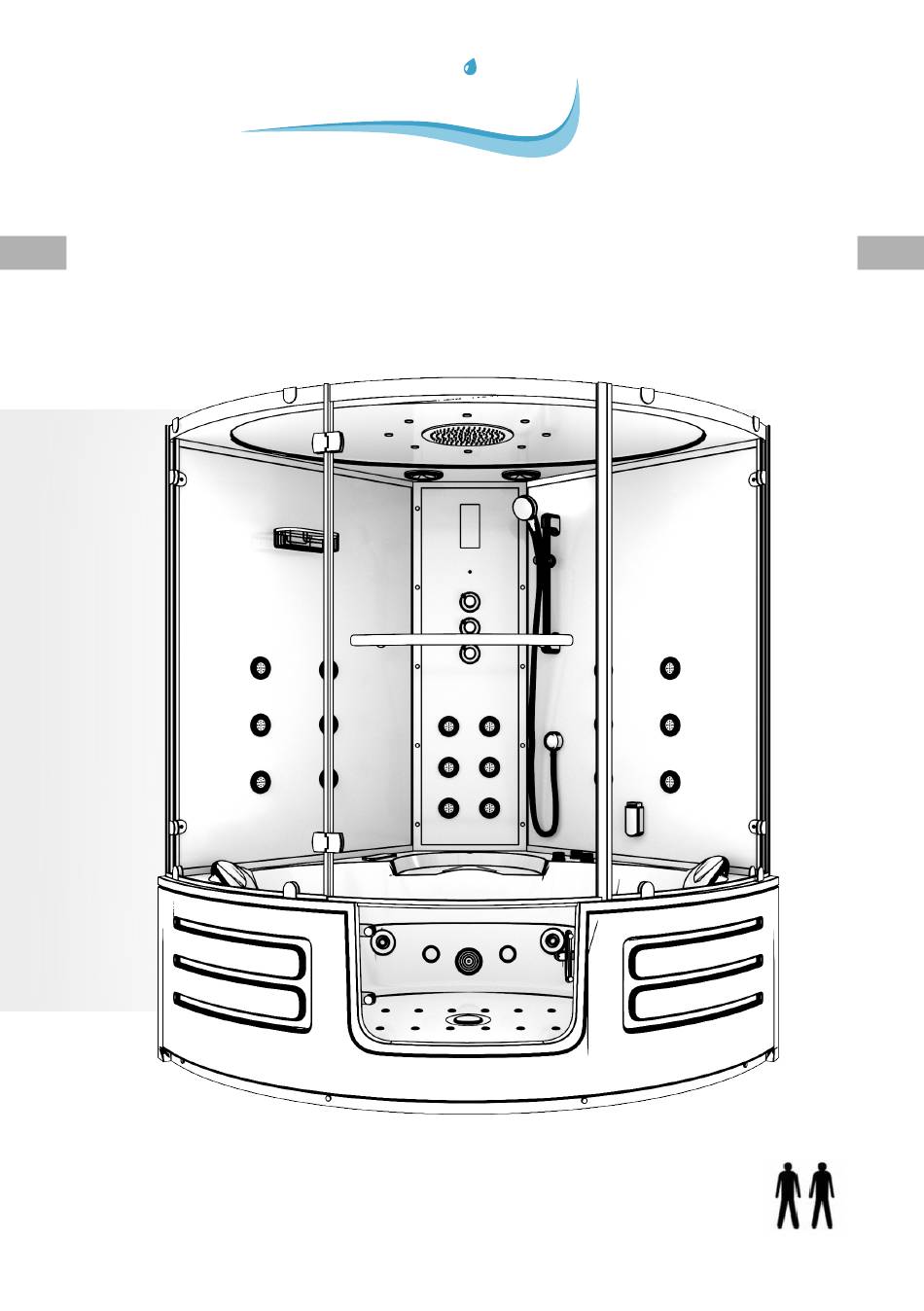

- Page 1 Senior GmbH Whirlpool Shower Assembly Instructions (09v22) eng Attention: The assembly of this tub should be done by two people!
- Page 2 Foreword Dear customer, we are pleased that you have chosen this product. Please observe all instructions before assembly and use and strictly follow the procedure below! Please check the product for completeness first. If there is any damage, please send us a message with a short description and photos of the affected area.
- Page 3 Sealing areas under/behind the bathtub Sealing is compulsory - silicone is not enough! The areas behind and under the bathtub must be tiled. Sealant joints - like silicone joints - are not waterproofing, but only maintenance and beauty joints! Only the use of bathtub sealing tapes or e.g.
-
Page 4: Technical Data
Technical data Outside dimensions of the pool 150 cm Length 150 cm Wide 228 cm High Hot and cold water connection ½ Inch max. 4 Bar Waste water HT 40mm Power connection 220-240 V 50 Hz 16 A/20 A Massage pump air 400 W Massage pump water 750 W... -
Page 5: Product Components
Product components Cover with light, rain shower, loudspeaker and ventilation Rear panel on the left with massage jets and shelf Corner panel with display, fitting and massage jets Please note that the shower panel has only been pre-assembled by the factory to make it easier for you to assemble. It is absolutely necessary that you check all screw connections and tighten them if necessary. - Page 6 1,50 m Fastening Cover Screws Joint sealing tape D-seal Screws Back panels 3,5x20 Screws Screws-cover 1,50 m 3x15 D-seal Angle rear Angle below Seal Angle below Countersunk head H-seal wall-front Screws 1,50 m 1,50 m 0,75 m Screws with cover Hinges h-seal Magnetic...
- Page 7 Designations Wassereinlauf Nackenkissen Self-Clean (optional zubuchbar) Tür Wasserdüsen An/Aus Ozon Wanne ...
-
Page 8: Preparing The Connections
Preparing the connections 215 cm 45 cm 40 cm 75 cm 75 cm ATTENTION: leave the 15 cm Ø Socket 230V 20A (or fixed connection socket) around the white siphon (dark grey area) under the drain free. Socket 230V 16A (or fixed socket) Grey area = possible area for the Hot water 1/2 inch drain pipes, in the wall area the... - Page 9 Alignment In order for the pool to stand straight, it is necessary to align the pool precisely with the help of a spirit level. Each foot is individually adjustable, so you can compensate for small irregularities in the floor. Please make sure that all feet are touching the ground and that the weight is evenly distributed on the ground.
- Page 10 Fitting the glass shelves and hand shower TIP: Mount the glass shelves and the hand shower on the back walls BEFORE you place the back wall on the bath and screw it in place. Mount the holder for the hand shower and the aroma therapy dispenser on the right-hand rear wall.
- Page 11 Also attach the joint sealant BD1 to the underside of the corner panel. In the next step, screw the two back panels to the corner panel with the C1 screws. Now pull the tub out of the corner a little. To mount the parts on the tub, you must also be able to step on the tub from behind.
- Page 12 Silicone seal Now the FH3 brackets are screwed onto the lower edge of the front sides at the points provided for this purpose. Make sure that the angled element belongs to the inner sides of the fronts for later connection to the tub.
- Page 13 Put on the lid Now the lid is inserted into the walls. This sits inside the construction of rear and side walls. The lid is attached to the rear walls from behind with the screws FH 5 at the points provided. The fronts are connected to the lid with bracket A1.
- Page 14 Before inserting the door and aligning everything, slide the silicone seals FH4 under the brackets FH3 between the wall and the upper edge of the pool. Now screw the hinges of the door to the left front. The screw connections should also not be tight- ened at first when installing the door.
-
Page 15: Hose Connections
Install drain pipes The drain is in the floor, but the waste pipe can also be attached to a drain in the wall, but not higher than 6 cm so that the drain is still allowed. The HT 40 flexible pipe used for this purpose is included in the delivery. - Page 16 Hose connections for back massage jets The hose connections on the back of the left and right rear panels must be connected to connections 3 and 4 in the corner panel. Connection 3 Connection 4 Hose connections for back massage jets The hose connections on the back of the left and right rear panels must be connected to connections 3 and 4 in the corner panel.
- Page 17 Fig. 1 Fig. 2 The O3 cable of the tub is plugged together with cable 5. Cable 5 is marked O3 on the opposite side, which is plugged into the O3 marking of the control unit (Fig. 2). The remaining three plug connections on the control 2, loudspeaker and fan are connected to the assemblies on the cover of the shower attachment.
-
Page 18: Remote Control
Display ON/OFF Light ON/OFF Display temperature, time, frequency Ventilation ON/OFF Steam ON/OFF Temperature/time Radio ON/OFF setting Volume „-“ Volume „+“ Memory Display lock Channel search Remote control ON/OFF Radio ON/OFF Steam ON/OFF Memory Temperature Light ON/OFF setting Channel search Time Ventilation ON/OFF Volume „+“... - Page 19 „Lotus effect set“ against dirt deposits, limescale/water stains Contents: 1x NANO NT GLASS & CERAMIC (easy to clean) 1x NANO NT CLEANER 1x CLEANING WIPE 1x POLISHING CLOTH 1x PROTECTIVE HAND SHOES Resistant to steam cleaners * Very durable long-term protection * Lasts for many months, depending on use * Minimal care and cleaning effort * No more expensive cleaning agents required * Dirt can no longer adhere or is easier to clean (easy-to-clean) * Very easy to use...
- Page 20 Aromatherapy Aromatherapy is only available in the showers with steam generator. Take a small, heat-re- sistant cloth (e.g. linen or cotton) measuring approx. 5x5 cm and drip 2-4 drops of our highly concentrated aroma oil onto it. Now push the steam head upwards and insert the cloth (the steam head is the small white box at the bottom of the aluminium panel, approx.
-
Page 21: Warranty And Service
Pool maintenance and cleaning Clean the pool with a mild liquid detergent and a soft cloth. Caution: Never use ace- tone, cleaning agents containing ammonia or coarse-grained scouring agents! Clear the pool drain regularly of hair and the like to prevent clogging. Use an acrylic care product for the tub and the panel to protect the surface from scratches. - Page 22 Recycling The disposal of the product‘s electronics is governed by the Waste Electrical and Electronic Equipment Act. The „old device“ must then be taken to an appropriate collection point. We recommend that you remove the control unit, the lighting unit and the display and take these parts to the electrical/electronic collection point.
- Page 24 Senior GmbH...
