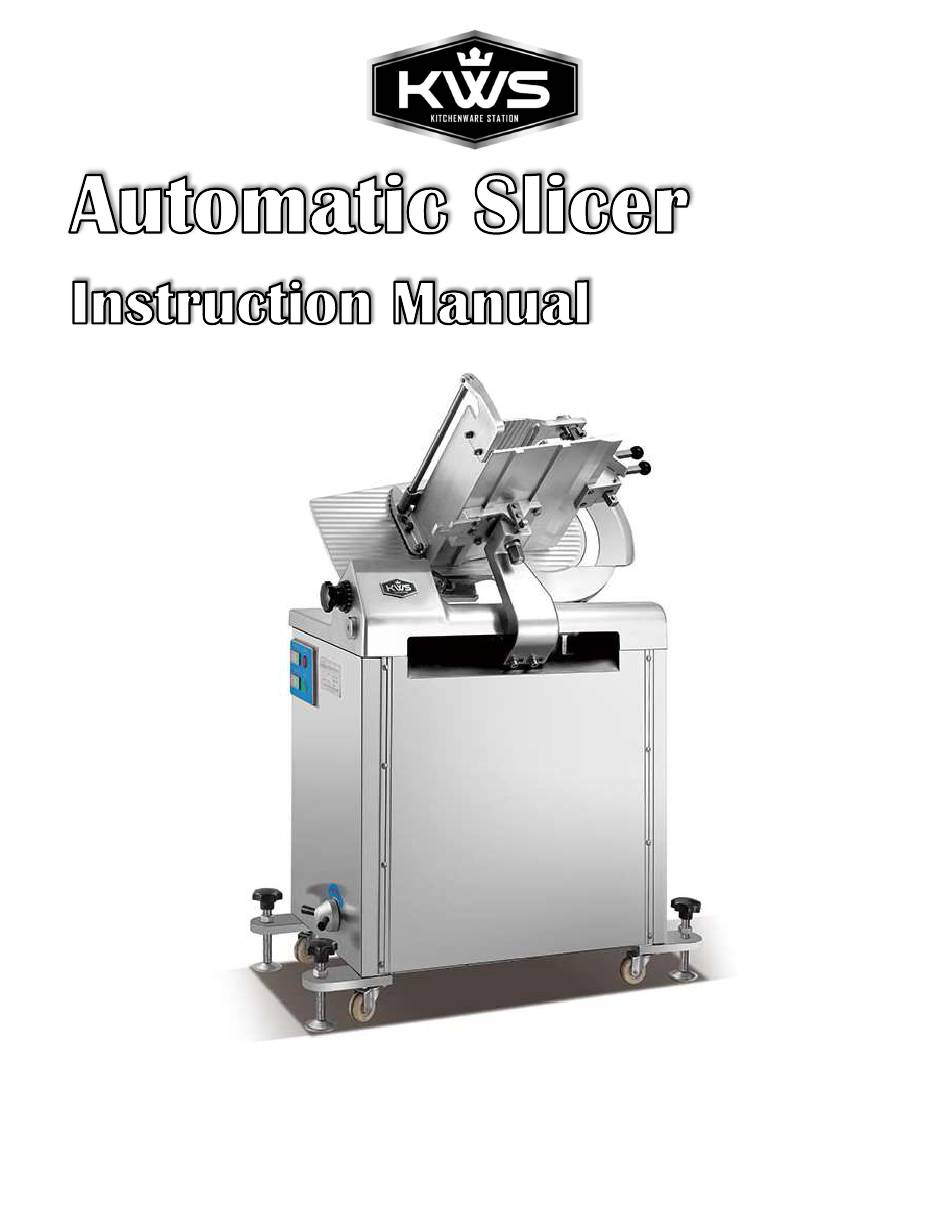

- Page 1 Thank you for purchasing this KitchenWare Station electric slicer. Before operating the equipment, read and familiarize yourself with the following operating and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
-
Page 3: Table Of Contents
Table of Contents Unpacking ....................... 4 Safety Instruction ....................5 Features and Controls ..................... 6 Operating Instructions ................... 7 Cleaning and Sanitizing Instruction ................ 9 Slicer Disassembly, Cleaning and Sanitizing ............9 Maintenance ......................10 Blade Sharpening ....................11 Technical Parameters .................... 12 Circuit Diagram ..................... -
Page 4: Unpacking
UPON RECEIVING UNPACKING: The slicer was inspected before leaving the factory. The carrier assumes full responsibility for safe delivery upon acceptance of the shipment. 1. Unpack the electric slicer immediately after receipt. If the machine is found to be damaged after unpacking, save the packaging material and contact the carrier and KitchenWare Station Customer Service Department within seven (7) days of delivery. -
Page 5: Safety Instruction
IMPORTANT SAFETY INSTRUCTION Thank you for purchasing KitchenWare Station Electric Slicer. Each unit has been manufactured to ensure safety and reliability. Before using it for the first time, please read the instructions carefully and keep them for further reference. WARNING! READ AND SAVE THESE INSTRUCTIONS. -
Page 6: Features And Controls
FEATURES AND CONTROLS Product Tray Thickness Adjustment Base Frame Control Slicer Stand Caster Sharpener Blade Cover Blade Support Arm... -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS LOCATION Place the slicer on a suitable counter or tabletop. Allow enough space around the slicer so the product tray can move freely forward and back. Keep the slicer away from heat sources and not in a passageway. ... - Page 8 SLICER OPERATION It is forbidden to slice materials such as wood, plastic, paving tiles, bricks, stones, glass, metals, leather, cardboard, fabrics, bone, etc. Slicing foods that contain too much liquid may damage the motor. When the slicer is not running, the thickness adjustment control must be turned fully clockwise, so the gauge plate covers the blade edge.
-
Page 9: Cleaning And Sanitizing Instruction
CLEANING AND SANITIZING IMPORTANT: To maintain the appearance and increase the service life, clean, and sanitize your equipment daily after use. Clean before use if equipment has not been used for a while. TO AVOID SERIOUS PERSONAL INJURY: BEFORE CLEANING, SERVICING, OR DISASSEMBLE ANY PARTS, always turn slicer OFF and unplug unit. -
Page 10: Maintenance
MAINTENANCE IMPORTANT: To maintain the appearance and increase the service life, the following rules must be abided: Disconnect the power cable from the socket when not in use. Use a neutral detergent to clean the machine. The pH for a natural detergent should be at 7 or no higher than 8. -
Page 11: Blade Sharpening
Lubricate Support Arm Oil Gauge Lubricate the carriage slide rod at least once a month and any time that the tray becomes difficult to move. Use food grade lubricant. Do NOT use cooking oil. 1. Press and release the OFF (O) button. 2. -
Page 12: Technical Parameters
12. Once the sharpening is completed, set the sharpening attachment in its original position inverting the above procedure. Video tutorial can be obtained from KitchenWare Station customer service team via E-mail TECHNICAL PARAMETERS Model MS-14A Rated Voltage AC 120V / 60Hz Slicing Motor Power 2550W / 3.47 HP Reciprocating Motor Power 750W / 1.02 HP... -
Page 13: Circuit Diagram
Circuit Diagram Description: KM1 / KM2 – AC Contactor M1 – Blade Motor M2 – Automatic Motor HL1 / HL2 / HL3 – Light BF1 / BF2 – Thermal Links SW1 / SW2 – Transformer SB1 – Blade Off Switch SB2 –... - Page 14 Model: MS-14A...
-
Page 15: Slicer Component List
Part No. Description Part No. Description SHARPENER COVER SHARPENING STONE EXTENSION SLEEVE BLADE COVER COPPER BUSH BLADE SHARPENING STONE SPINDLE BLADE COVER BASE SHARPENING STONE BEARING SHARPENING STONE GASKET SEAL RING SHARPENER KNOB MAIN SHAFT SLEEVE SHARPENING STONE FIX SHAFT MAIN SHAFT HOOP SHARPENING STONE SEAT SUPPORT... - Page 16 HORIZONTAL CLAMP HANDLE OIL DEFLECTOR FASTEN SCREW RIGHT BASE COVER PRESS BLOCK SQUARE TRACK VERTICAL CLAMP WHEEL SHAFT AUTOMATIC MOTOR VERTICAL CLAMP WHEEL BELT RECIPROCATING SHAFT BUSH SPEED BELT WHEEL RECIPROCATING SEAT ADJUSTABLE GUIDE RAIL CONNECTING ROD SCREW RECIPROCATING SEAT SHEET AUTOMATIC MOTOR SEAT PRODUCT TRAY SUPPORT ARM ADJUST SCREW ROD LOCATING...
-
Page 17: Troubleshooting
TROUBLESHOOTING GUIDE Issue Cause Solution Machine does not start Slicer not plugged in Plug in slicer Lack of power from the Restore the supply of electrical network power from the electrical network Machine’s On-Off switch is Push the green button to in “o”... - Page 18 Issue Cause Solution Ragged cuts-poor yield Dull blade Sharpen blade. Refer to blade sharpening Chipped blade Sharpen or replace blade Hard to push product tray No lubrication Lubricate carriage slide rod thoroughly with food grade lubricant Worn tow bracket Replace tow bracket Blade does not sharpen Stones dirty, wet, or Clean sharpener with soapy...
-
Page 19: Customer Care
CUSTOMER CARE If you should ever have questions or require service, training, spare parts, or additional manuals of this slicer, please contact KitchenWare Station Customer Service Department. KitchenWare Station, LLC 13732 Milroy Pl Santa Fe Springs, CA 90670 Toll Free: 1-888-505-3698 (Monday – Friday 10:00am – 5pm PST) Email: Customerservice@kitchenwarestation.com Official Website:... -
Page 20: Limited Warranty
LIMITED WARRANTY Thank you for purchasing KitchenWare Station’s product. This electric slicer was tested and meets our stringent quality standards. This product is warrantied to be free from manufacturing defects under normal/ proper use and conditions for 1 year- part only. To register your warranty for this product, complete the warranty registration form provided in the package, and send it back to us.
