Summary of Contents for KWS MS-12A

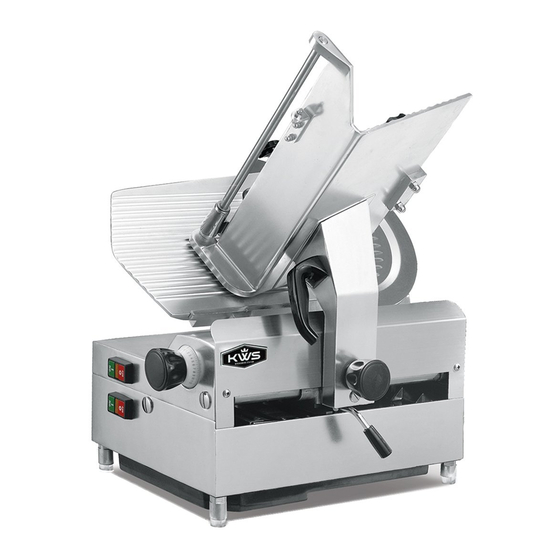

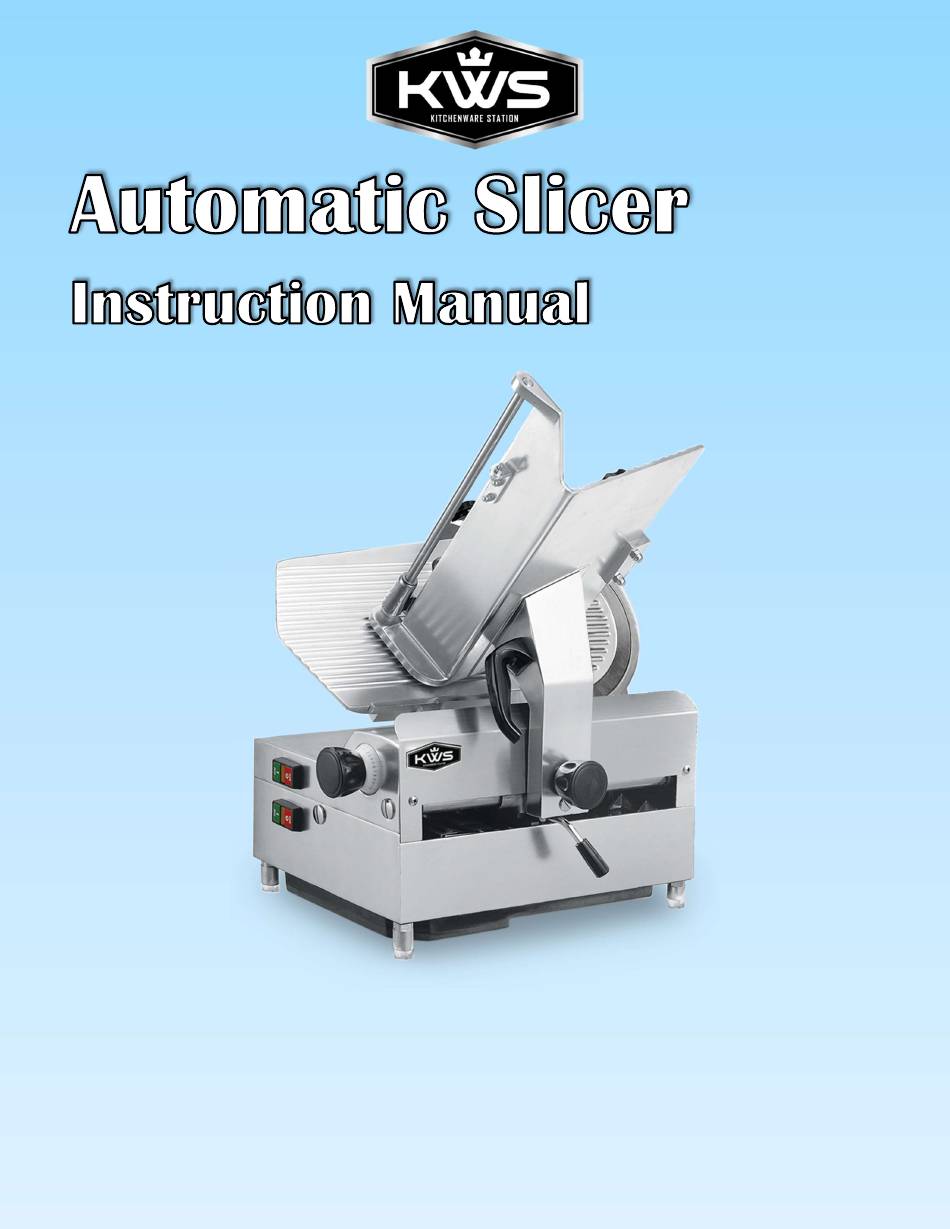

- Page 1 Thank you for purchasing this KitchenWare Station electric slicer. Before operating the equipment, read and familiarize yourself with the following operating and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
-
Page 3: Table Of Contents
Table of Contents Unpacking ....................... 4 Safety Instruction ....................5 Features and Controls ..................... 6 Operating Instructions ................... 7 Cleaning and Sanitizing Instruction ................ 9 Slicer Disassembly, Cleaning and Sanitizing ............9 Maintenance ......................10 Blade Sharpening ....................12 Technical Parameters .................... 13 Circuit Diagram ..................... -
Page 4: Unpacking
UPON RECEIVING UNPACKING: The slicer was inspected before leaving the factory. The carrier assumes full responsibility for safe delivery upon acceptance of the shipment. 1. Unpack the electric slicer immediately after receipt. If the machine is found to be damaged after unpacking, save the packaging material and contact carrier and KitchenWare Station Customer Service Department within seven (7) days of delivery. -
Page 5: Safety Instruction
IMPORTANT SAFETY INSTRUCTION Thank you for purchasing KitchenWare Station Electric Slicer. Each unit has been manufactured to ensure safety and reliability. Before using for the first time, please read the instructions carefully and keep them for further reference. WARNING! READ AND SAVE THESE INSTRUCTIONS. ATTENTION! LISEZ ET CONSERVEZ CES INSTRUCTIONS. -
Page 6: Features And Controls
FEATURES AND CONTROLS Gauge Plate 2. Product Tray Handle Blade On/Off Buttons Product Tray On/Off Buttons 5. Leg Gear Shift Handle Product Tray 8. Blade Blade Cover 10. Guard Ring 11 Support Arm 12. Carriage Release Knob 13. Thickness Adjustment Control... -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS LOCATION Place the slicer on a suitable counter or tabletop. Allow enough space around the slicer so the product tray can move freely forward and back. Keep the slicer away from heat sources and not in a passageway. ... - Page 8 Il est interdit de trancher des matériaux tels que le bois, le plastique, les pavés, les briques, les pierres, le verre, les métaux, le cuir, le carton, les tissus, les os, etc. Trancher des aliments contenant trop de liquide peut endommager le moteur.
-
Page 9: Cleaning And Sanitizing Instruction
CLEANING AND SANITIZING IMPORTANT: To maintain the appearance and increase the service life, clean and sanitize your equipment daily after use. Clean before use if equipment has not been used for a while. TO AVOID SERIOUS PERSONAL INJURY: BEFORE CLEANING, SERVICING, OR DISASSEMBLE ANY PARTS, always turn slicer OFF and unplug unit. -
Page 10: Maintenance
11. Clean and sanitize all removed parts with a neutral detergent and warm water solution to remove fatty oils. DO NOT soaks your removed parts. 12. Clean and sanitize the rest of the machine with a damp cloth or sponge with neutral detergent and warm water solution. - Page 11 Lubricate Product Tray Slide Rod Lubricate the carriage slide rod at least once a month and any time that pushing the tray becomes difficult. Use a food grade lubricant. Do NOT use cooking oil. 1. Press and release the OFF (O) button. 2.
-
Page 12: Blade Sharpening
BLADE SHARPENING Blade sharpening of slicer with built-in sharpener WARNING: SHARPENING OPERATION WILL EXPOSE KNIFE. Before proceeding with blade sharpening, remain alert to the RESIDUAL RISKS that refer to the hazard of serious injuries if the instructions below are not followed. -
Page 13: Technical Parameters
TECHNICAL PARAMETERS Model MS-12A Rated Voltage AC 110V / 60Hz Slicing Motor Power 1050W / 1.43 HP Reciprocating Motor Power 420W / 0.57 HP Blade Rotational Speed 490 r/min Slicing Speed 37 times / min Amps 8.75A Drive Belt and Chain Cutting Thickness 0 - 0.6 inch... -
Page 15: Slicer Component List
Part No. Description Part No. Description UPPER BASE SHARPENER MOUNT FRONT COVER SHARPENER BRACKET PIN SUPPORT ARM SHARPENER BUTTON PRODUCT TRAY SHARPENING STONE GAUGE PLATE SHARPENER COVER BLADE COVER SHARPENER COVER KNOB PULLEY COVER THICKNESS STOP KNOB SLICE GUARD BALL BEARING BLADE MOTOR PRODUCT TRAY GUIDE FRONT BRACKET... - Page 16 PRODUCT TRAY PUSHER GUIDE CAPACITOR LOWER TOW BRACKET RELAY LOWER PRODUT TRAY SLIDE PRODUT TRAY SLIDE ROD LOWER BASE SCREW UPPER QUADRATE AXIS GUARD RING LOWER QUADRATE AXIS SHARPENER PIN GEAR BRACKET SHARPENER SPRING GEAR SHIFT HANDLE POLISHING STONE AUTOMATIC MOTOR MOTOR BRACKET TRANSMISSION SLICE GUARD SCREW...
-
Page 17: Troubleshooting
TROUBLESHOOTING GUIDE Issue Cause Solution Machine does not start Slicer not plugged in Plug in slicer Lack of power from the Restore the supply of electrical network power from the electrical network Machine’s On-Off switch is Push the green button to in “o”... - Page 18 Issue Cause Solution Ragged cuts-poor yield Dull blade Sharpen blade. Refer to blade sharpening Chipped blade Sharpen or replace blade Hard to push product tray No lubrication Lubricate carriage slide rod thoroughly with food grade lubricant Worn tow bracket Replace tow bracket Blade does not sharpen Stones dirty, wet, or Clean sharpener with soapy...
-
Page 19: Customer Care
CUSTOMER CARE If you should ever have questions or require service, training, spare parts, or additional manuals of this slicer, please contact KitchenWare Station Customer Service Department. KitchenWare Station, LLC 13732 Milroy Pl Santa Fe Springs, CA 90670 Toll Free: 1-888-505-3698 (Monday – Friday 10:00am – 5pm PST) Email: Customerservice@kitchenwarestation.com Official Website:... -
Page 20: Limited Warranty
LIMITED WARRANTY Thank you for purchasing KitchenWare Station’s product. This electric slicer was tested and meets our stringent quality standards. This product is warrantied to be free from manufacturing defects under normal/ proper use and conditions for 1 year- part only. To register your warranty for this product, complete the warranty registration form provided in the package, and send it back to us.
