- Page 1 Original User Manual – A S Hydraulic Trolley Jack 3 Ton REBO Hydraulic Trolley Jack 3 T AR-HE-HRW3T Please follow all security measures in this user´s manual to ensure a secure use. Thank you for trusting in AREBOS.
-
Page 2: Table Of Contents
Original User Manual – A S Hydraulic Trolley Jack 3 Ton REBO List of contents 1. Safety instructions ......3 1.1 Explanation of the symbols ....................3 1.2 General safety instructions ....................4 2. Set Up ..........5 2.1 Overview of product ......................5 2.2 Control before use ...................... -
Page 3: Safety Instructions
Original User Manual – A S Hydraulic Trolley Jack 3 Ton REBO Thank you for purchasing our product. Please read the operating instructions carefully before using the product for the first time. If you give the product to a third party, this manual must be handed over with it. -
Page 4: General Safety Instructions
Original User Manual – A S Hydraulic Trolley Jack 3 Ton REBO 1.2 General safety instructions • This jack is designed for lifting objects only and shall be supported by an adequate aid, such as a stand. • Make sure that the lifted object is firmly fixed to the jack. •... -
Page 5: Set Up

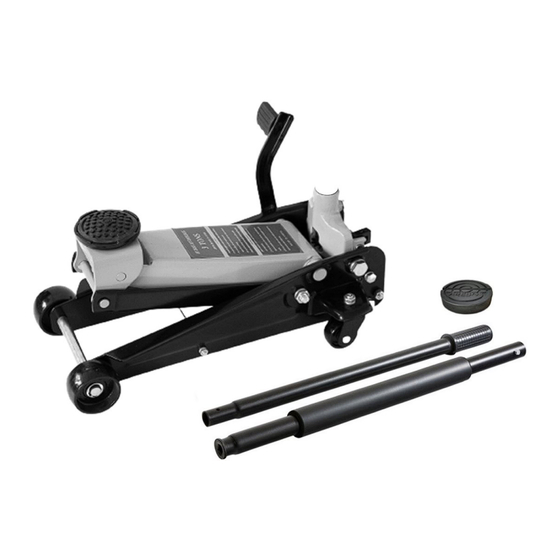

Original User Manual – A S Hydraulic Trolley Jack 3 Ton REBO 2. Set Up 2.1 Overview of product A. Handle Socket H. Oil filler plug B. Foot pedal Knurled Knob C. Lifting arm J. Safety overload valve D. Saddle E. -
Page 6: Operation
Original User Manual – A S Hydraulic Trolley Jack 3 Ton REBO 3. Operation 3.1 Bleeding BEFORE EACH USE OR IF JACK PERFORMANCE DECREASES check for excessive air and proper hydraulic fluid level in Jack. If Jack appears not to be working properly, it may be necessary to purge its hydraulic system of excessive air as follows: 1) Remove the oil Filler Plug (H). -
Page 7: Lifting
Original User Manual – A S Hydraulic Trolley Jack 3 Ton REBO 3.3.1 Lifting 1) Park vehicle on a flat, level, solid, surface safely away from oncoming traffic. Turn off the vehicle’s engine. Place the vehicle’s transmission in “PARK” (if automatic) or in its lowest gear (if manual). -
Page 8: Explosion View
Original User Manual – A S Hydraulic Trolley Jack 3 Ton REBO 4. Explosion view... - Page 9 Original User Manual – A S Hydraulic Trolley Jack 3 Ton REBO Part description Part description Part description Part description saddle left side plate washer screw assembly lifting arm right side plate throttle valve steel ball assembly assembly radius link frame tie rod spring reservoir...
-
Page 10: Maintenance Of The Jack
Original User Manual – A S Hydraulic Trolley Jack 3 Ton REBO 5. Maintenance of the jack • If you want to stow the jack, lower the jack to the lowest position and close the drain valve. • Keep the jack clean. Lubricants should be applied to all moving parts every three months. •... -
Page 11: Specifications
Our customer service number: Tel. +44 (0) 208 068 5604 Fax: +49 (0) 931 4523 2799 / E-Mail: info@arebos.de Office address: Canbolat Vertriebs GmbH • Gneisenaustraße 10-11 • 97074 Würzburg Return address can be found in the imprint: https://www.arebos.de/impressum/... -
Page 12: Ec Declaration Of Conformity
Dipl.-Inform. (Univ.) Korhan Canbolat, Managing Director Office address: Canbolat Vertriebs GmbH Gneisenaustraße 10-11 D-97074 Würzburg Return address can be found in the imprint: https://www.arebos.de/impressum/ VAT identification number: DE 263752326 Court of the Commercial Register is Würzburg, HRB 10082 WEEE Reg.-No. DE 61617071...
