Summary of Contents for U-Line UHFZ124-SS01A

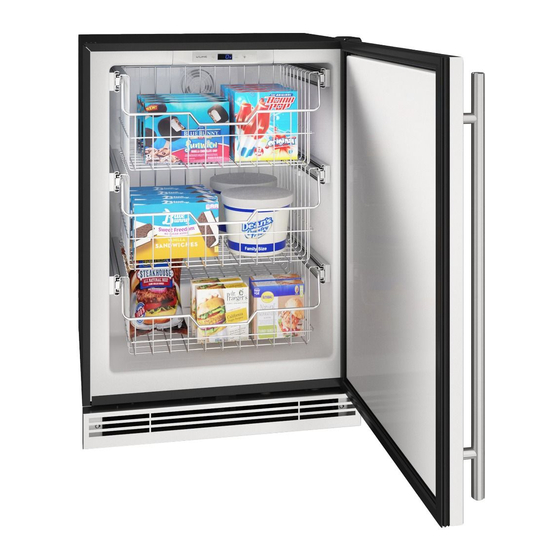

- Page 1 USER GUIDE & SERVICE MANUAL Model: UHFZ124-SS01A...
-
Page 2: Table Of Contents
USER GUIDE & SERVICE MANUAL Click on any section below to jump directly there Table of Contents Intro Wire Diagram Product Liability Safety Warranty Claims Safety and Warning Parts Disposal And Recycling Ordering Replacement Parts System Diagnosis Guide Installation Compressor Specifications Environmental Requirements Troubleshooting Extended Electrical... - Page 3 U-Line Customer Care must be contacted immediately at +1.414.354.0300. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been altered or repaired in the field without prior written approval from U-Line, claims will not be eligible.
-
Page 4: Safety And Warning
USER GUIDE Safety and Warning DANGER NOTICE This unit contains R600a (Isobutane) which is a Please read all instructions before installing, flammable hydrocarbon. It is safe for regular operating, or servicing the appliance. use. Do not use sharp objects to expedite defrosting. -
Page 5: Disposal And Recycling
USER GUIDE Disposal and Recycling DANGER RISK OF CHILD ENTRAPMENT. Before you throw away your old refrigerator or freezer, take off the doors and leave shelves in place so children may not easily climb inside. If the unit is being removed from service for disposal, check and obey all federal, state, and local regulations regarding the disposal and recycling of refrigeration appliances, and follow these steps completely:... -
Page 6: Environmental Requirements
USER GUIDE Environmental Requirements This model is intended for indoor/interior applications only and is not to be used in installations that are open/ exposed to natural elements. This unit is designed to operate between 50°F (10°C) and 100°F (38°C). Higher ambient temperatures may reduce the unit’s ability to reach low temperatures and/or reduce ice production on applicable models. -
Page 7: Electrical
USER GUIDE Electrical WARNING SHOCK HAZARD — Electrical Grounding Required. Never attempt to repair or perform maintenance on the unit until the electricity has been disconnected. Never remove the round grounding prong from the plug and never use a two-prong grounding adapter. -
Page 8: Cutout & Product Dimensions
USER GUIDE 23 ⁄ ” (608 mm) Cutout & Product Dimensions PREPARE SITE Your U-Line product has been designed for either free- standing or built-in installation. When built-in, your unit FRONT 34 ⁄ ” to 35 ⁄ ” 28” does not require additional air space for top, sides, or... -
Page 9: Side By Side Installation
USER GUIDE Side-by-Side Installation 3. Place bracket over holes and attach to unit with two screws removed in step 2 using a T-25 Torx driver. Two units may be installed side-by-side. Tighten screws fully. Cutout width for a side-by-side installation is the cutout 4. -
Page 10: Anti-Tip Bracket
USER GUIDE Anti-Tip Bracket Slide unit out so screws on top of unit are easily accessible. Remove the two screws from the opposite side of the hinge assembly using a T-25 Torx driver (see below). Place bracket over holes and attach to unit with two screws removed in step 2 using a T-25 Torx driver. -
Page 11: General Installation
USER GUIDE General Installation INSTALLATION Plug in the power/electrical cord. LEVELING INFORMATION Gently push the unit into position. Be careful not Use a level to to entangle the cord or water and drain lines, if confirm the unit is applicable. level. -
Page 12: Grille Installation
Align cabinet and grille holes and secure, but do not over tighten grille screws (1). Note: When installing next to a 15” wide U-Line product, use the supplied spacers behind the grille. The 24” grille will now be on the same plane as the 15”... -
Page 13: Door Swing
USER GUIDE Door Swing Wall 2-1/8" Min. (54 mm) 90° Door Swing Units have a zero clearance for the door to open 90°, when installed adjacent to cabinets. Stainless Steel models require 2-1/8" (54 mm) door clearance to accommodate the handle if installed next to a wall. -
Page 14: Door Adjust
USER GUIDE u-line.com Door Adjustments TO REVERSE THE DOOR HINGE COVER (if equipped) Hinge cover included with the literature bag is optional. To install hinge cover: Press hinge cover squarely over hinge. Hinge Cover Remove grille: Remove the grille (see GRILLE INSTALLATION section of this guide). - Page 15 USER GUIDE u-line.com Remove door by tilting forward and lifting door off Install top hinge and door: bottom hinge. Retain shoulder washers; they will be reused. Install hinge with longer straight edge aligned to Insert arrow clips or screws into holes.
- Page 16 Free Standing Kit Te free standing kit is an optional accessory (ULAFREESTANDS), used when unit is freestanding - not built into a cabinet. Available at u-line.com. To install the kit: Remove grille (see GRILLE INSTALLATION section). Align front hole wit hole in shell accessory, hole in base, and hole in grille.
- Page 17 If the temperature displayed is different than selected, the unit is progressing towards the selected temperature. Time to reach set point varies based upon ambient temperature, temperature of product loaded, door openings, etc. U-Line recommends allowing the unit to reach set point before loading.
- Page 18 USER GUIDE Control Operation CONTROL FUNCTION GUIDE FUNCTION COMMAND NOTES ON/OFF Press and release Unit will immediately turn On or OFF Press and release to leave interior After 12 hours, factory default is restored; light will Leave interior light on light on for 12 hours;...
- Page 19 USER GUIDE Airflow and Product Loading NOTICE The unit requires proper airflow to perform at its highest efficiency. Do not block the front grille, internal fans or vents at any time, or the unit will not perform as expected. Do not install the unit behind a door.
-
Page 20: Interior Adjustments
USER GUIDE NOTICE Interior Adjustments Do not remove the track rails from the cabinet. FREEZER BASKETS To reinstall: Freezer Basket Installation & Removal 1. Align the left and right basket channels with the tracks in the cabinet. Ensure an even track engagement on Freezer baskets are removable for cleaning. -
Page 21: Cleaning
USER GUIDE Cleaning To clean integrated panels, use household cleaner per the cabinet manufacturer’s recommendation. Stainless Models Stainless door panels and handles can discolor when INTERIOR CLEANING exposed to chlorine gas, pool chemicals, saltwater or Disconnect power to the unit. cleaners with bleach. - Page 22 USER GUIDE NOTICE The drain pan was not designed to capture the water created when manually defrosting. To prevent water from overflowing the drain pan and possibly damaging water sensitive flooring, the unit must be removed from cabinetry. To defrost: 1.
-
Page 23: Cleaning Condenser
USER GUIDE Cleaning Condenser INTERVAL - EVERY SIX MONTHS To maintain operational efficiency, keep the front grille free of dust and lint, and clean the condenser when necessary. Depending on environmental conditions, more or less frequent cleaning may be necessary. WARNING Disconnect electric power to the unit before cleaning the condenser. -
Page 24: Extended Non-Use
If the unit will be exposed to temperatures of 40°F (5°C) or less, the steps above must be followed. For questions regarding winterization, please call U-Line at 414.354.0300. CAUTION Damage caused by freezing temperatures is not covered by the warranty. -
Page 25: Troubleshooting
BEFORE CALLING FOR SERVICE • Condenser Fan: Air moving through a condenser may be heard. If you think your U-Line product is malfunctioning, read the CONTROL OPERATION section to clearly understand the • Automatic Defrost Drain Pan: Water may be heard function of the control. - Page 26 USER GUIDE CHECKING PRODUCT TEMPERATURE Causes which affect the internal temperatures of the cabinet include: • Temperature setting. • Ambient temperature where installed. • Installation in direct sunlight or near a heat source. • The number of door openings and the time the door is open.
-
Page 27: Wire Diagram
USER GUIDE Wire Diagram Wire Diagram... -
Page 28: Product Liability
The part that caused the damage must be returned to U-Line in its entirety. The part must be clearly labeled with the serial number of the unit it was removed from, the date, and the servicer who removed the part. -
Page 29: Warranty Claims
Claims must be submitted online at • Final billing - Remodel www.U‑LineService.com Warranty parts will be shipped at no charge after U-Line • 60 day submittal deadline from date of completed confirms warranty status. Please provide the model, serial service number, part number and part description. -
Page 30: Parts
USER GUIDE Parts UHFZ124-SS01A ANTI TIP BRACKET 80-54239-00 BACK PANEL 80-54853-00 BASKET, LOWER 80-54802-00 BASKET, UPPER 80-54803-00 * NOT PICT COMPRESSOR ELECTRICALS 80-54800-00 Item COMPRESSOR 80-54799-00 CONDENSER ASSY 80-54801-00 CONDENSER FAN BLADE 80-54798-00 CONDENSER FAN MOTOR 80-54797-00 DEFROST THERMOSTAT* 80-54812-00... -
Page 31: Ordering Replacement Parts
Warranty parts will be shipped at no charge after U-Line confirms warranty status. Please provide the model, serial number, part number and part description. Some parts will require color or voltage information. -
Page 32: System Diagnosis Guide
USER GUIDE u-line.com System Diagnosis Guide REGRIGERATION SYSTEM DIAGNOSIS GUIDE System Suction Suction Compressor Condenser Capillary Evaporator Wattage Condition Pressure Line Discharge Tube Normal Normal Slightly Very hot Very hot Warm Cold Normal below room temperature Overcharge Higher than Very cold... -
Page 33: Compressor Specifications
USER GUIDE SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE Compressor Specifications Electrical Relay and Overload Protector EM3D50HLT DANGER Refrigerant R134a Voltage 115 - 127 VAC Electrocution can cause death or serious injury. Frequency 60 Hz Burns from hot or cold surfaces can cause Run Cap 12μF/180 VAC... -
Page 34: Troubleshooting Extended
Condenser Fan: Air moving through a condenser may be heard. Included in this section are some diagnostic tips; if additional help is required, please contact the U-Line • Automatic Defrost Drain Pan: Water may be heard Corp, “Customer Care Facility” at +1.414.354.0300 for dripping or running into the drain pan when the unit is assistance. - Page 35 USER GUIDE TROUBLESHOOTING GUIDE Concern Potential Causes Action Not Cooling Compressor overheating Verify proper air flow through condenser. Is condenser clean? Confirm condenser fan operation. Compressor not operating Test overload and relay, replace as needed. Compressor operating - no cooling Refer to System Diagnosis Guide.
- Page 36 USER GUIDE MAIN CONTROL CAUTION The main control board is very robust and is rarely the cause of system issues. It is important to fully diagnose Precautions must be taken while working with the board for any suspected failures before attempting live electrical equipment.
-
Page 37: Control Operation-Service
USER GUIDE u-line.com Control Operation-Service SERVICE MODE To access the service menu for this model, remove the two screws that hold the display together. UI BUTTON LAYOUT Remove display circuit board. Press and hold the far left button on the display circuit board. - Page 38 USER GUIDE u-line.com SERVICE MODE GUIDE SERVICE MODE GUIDE 0. Exit THERMISTOR 1 — ZONE 1. Thermistor 1 temperature not including offsets. This shows the pure thermistor reading with no offsets 2. Thermistor 2 temperature not including offsets. taken into account.
- Page 39 USER GUIDE u-line.com E3: Thermistor 3 open. 25. MAIN SOFTWARE VERSION E4: Thermistor 4 open (Does not apply to this model). 26. Does not apply to this model E5: Thermistor 1 shorted. 27. FACTORY TEST MODEL E6: Thermistor 2 shorted.
- Page 40 Disconnect the unit from power source. Press and hold the far left button on the display circuit board. (See SERVICE MODE) While still holding the U-Line button, plug the unit into the appropriate power source. When the flashing digits appear (3-5 seconds), use the up and down arrow buttons to select the appropriate model number*.
-
Page 41: Thermistor
USER GUIDE Thermistors provide reliable temperature readings preset defrost timer during defrost cycles. The unit will u-line.com using a resistance which varies based on surrounding otherwise operate normally. Refer to defrost section. temperatures. If a faulty thermistor is suspected it may be tested using an accurate ohmmeter. -
Page 42: Defrost
USER GUIDE Defrost This unit defrosts, by default, every 12 hours of compressor runtime for 45 minutes. If you have verified that the unit does not have an ambient air leak, refer to the Control Operation - Service section and adjust unit to defrost every 9 hours for 60 minutes. -
Page 43: Remove Fan And Cover
USER GUIDE Remove Fan and Cover FREEZER CONVECTION COOLING This unit is equipped with an advanced convection cooling system. Convection cooling stabilizes cabinet temperature, Remove 2 Screws cools product faster, and increases energy efficiency. Evaporator Fan The evaporator fan is responsible for circulating warm air from the refrigeration zone, past the evaporator and back into the refrigerated zone. - Page 44 For products installed and used for normal residential use, material cosmetic defects are included in this warranty, with coverage limited to 60 days from the date of original purchase. All service provided by U-Line under the above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line.
