VERSION # 21-09-24
1 / 9
MODEL #
CM3905RT
Questions?
GIVE US A CALL: 1-888-980-5122
MON – FRI 8:30AM – 5:30PM (PT)
Allen Wrench
(Included)
2 - People
Recommended
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
Advertisement
Related Manuals for Furniture of America CM3905RT
Summary of Contents for Furniture of America CM3905RT

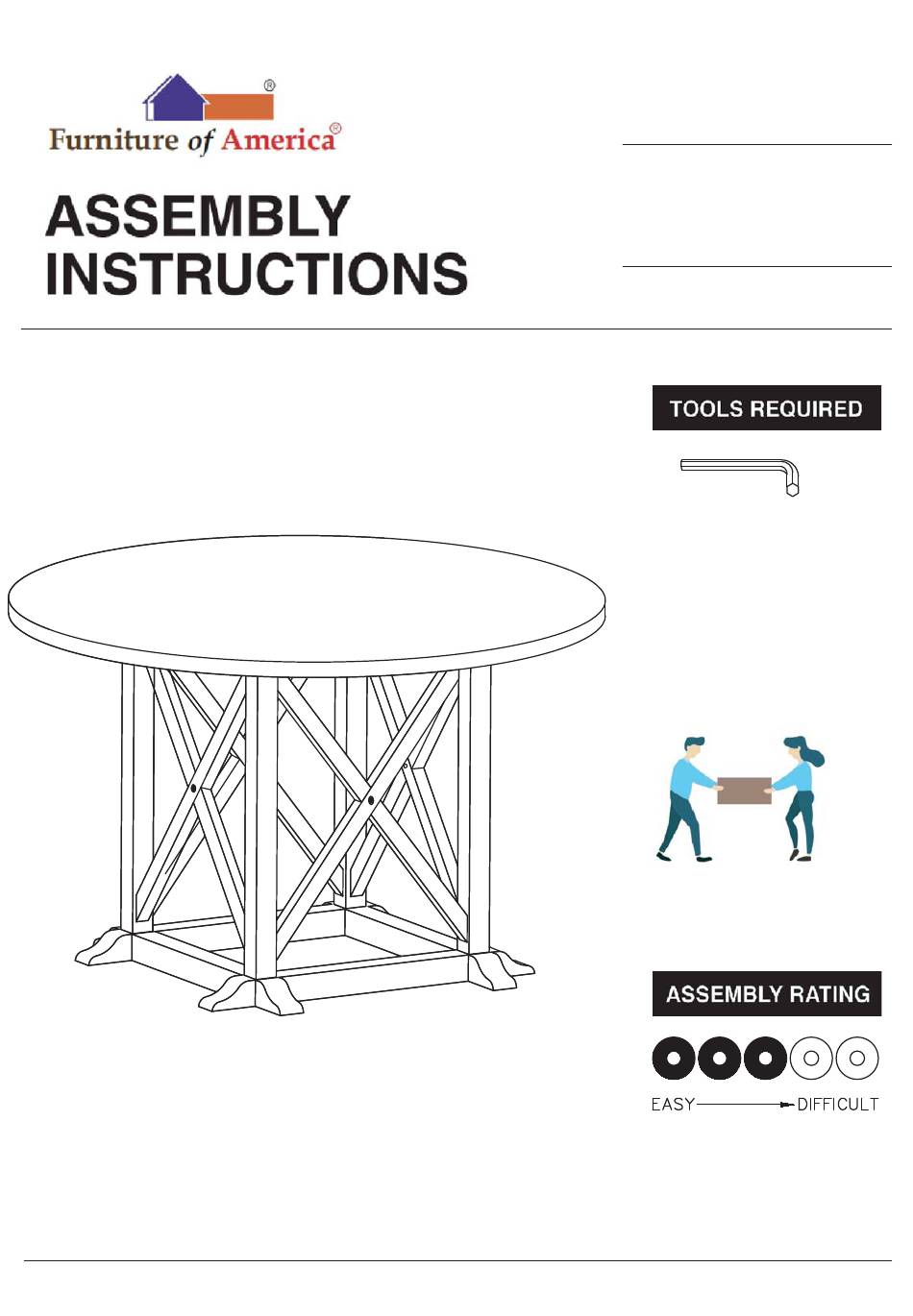

- Page 1 MODEL # CM3905RT Questions? GIVE US A CALL: 1-888-980-5122 MON – FRI 8:30AM – 5:30PM (PT) Allen Wrench (Included) 2 - People Recommended The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 Furniture America FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 5 ROUND DINING TABLE CM3905RT #1 1pc #2 4pcs #3 4pcs #4 4pcs Table Top Table Leg Outward Stretcher Inward Stretcher with embedded Nut #5 2pcs #6 2pcs #7 2pcs Mounting Plate Upper Leg Base Lower Leg Base #A 4pcs #B 24pcs...
- Page 6 CM3905RT is packed in 2 cases Carton Designation Part Hardware Table Top CM3905RT - 1 Outward #A x 4pcs Stretcher #B x 24pcs Inward Stretcher #C x 4pcs Table Leg #D x 32pcs CM3905RT - 2 #E x 16pcs Mounting Plate...
- Page 7 ASSEMBLY INSTRUCTIONS Combine outward Stretcher (#2) together with Inward Stretcher (#3), then secure by using bolts (#A) then with washers (#D,F). Next align the Table Leg (#4) to the assembly stretcher secure by using bolts (#B) then Part #2 x pc with washers (#D,E).
- Page 8 ASSEMBLY INSTRUCTIONS Align the Mounting Plat (#5) Part #5 x2pcs to the Table leg (#4) secure Hardware #B x4pcs by using bolts (#B) then with washers (#D,F). Hardware #D x4pcs Hardware #F x4pcs Hardware #H x1pc Align the Lower Leg Base (#7) to the Upper Leg Base (#6), then secure by using bolts (#C) then with washers (#D,F) in the Leg.
- Page 9 ASSEMBLY INSTRUCTIONS Align base to top Attach levelers (#1), then secure by (#G) to the base. using bolts (#B) with washers (#D,F). Part #1 x1pc Hardware #B x4pcs Hardware #D x4pcs Hardware #F x4pcs Hardware #G x4pcs Hardware #H x1pc 9 / 9...
