Ramtech WES3 Manual

Hide thumbs Also See for WES3:

Advertisement

Quick Links

Download this manual
WES3 Interface
Manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the WES3 and is the answer not in the manual?

Questions and answers

Todd Chauvin
March 5, 2025

On the WATE INTERFACE, how do you untrigger the device and allow it to reset itself. I get a solid RED blink every 4 seconds. Everything on the MAIN DISPLAY shows as being reset, no alarms showing.

0
3 comments:
Mr. Anderson
March 5, 2025

To untrigger the Ramtech WES3 device and allow it to reset, follow these steps:

1. Identify the triggered call point and use the provided reset key to reset it.
2. If necessary, press and reset a nearer fire point to cancel the alarm.
3. Wait for 5 seconds between pressing and resetting a call point.
4. After the alarm clears, the system enters a 2-minute re-arm period where sirens sound intermittently, and amber LEDs flash in groups of 5.
5. During this period, the alarm cannot be reactivated.
6. Ensure there is no fire hazard before silencing the alarm.

After these steps, the system will be re-armed and ready for use.

This answer is automatically generated

0
Todd Chauvin
March 6, 2025

@Mr. Anderson

0
Todd Chauvin
March 6, 2025

@Mr. Anderson The Water Interface does not have a key to reset it. This unit only has an A and B button.

0

Related Manuals for Ramtech WES3

Summary of Contents for Ramtech WES3

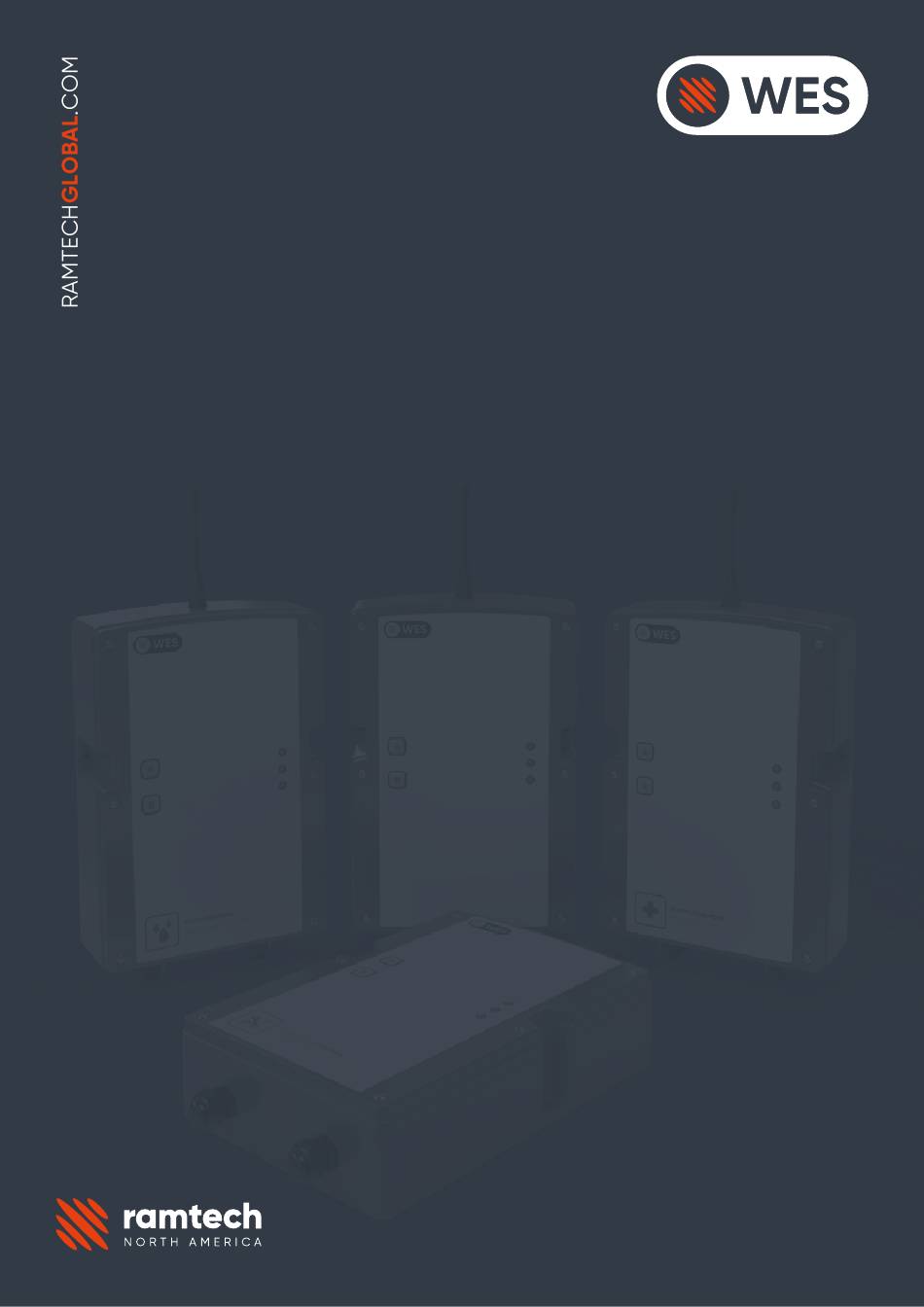

  • Page 1 WES3 Interface Manual...
  • Page 2 Contents Introduction ............................................. WES3 Standard Interface ........................................WES3 Water Interface ......................................... WES3 Medical Interface ........................................WES3 Maintenance Interface ......................................General Installation ..........................................WES3 Standard Interface ........................................LED Indications ............................................WES3 Water Interface ......................................... Installation recommendations ......................................LED Indications ............................................Scenarios ..............................................
  • Page 3 WES3 Interface Range Standard Interface Water Interface Medical Interface Maintenance Interface...
  • Page 4 WES3 network), outbound (where the WES3 network can trigger a connected device), or a combination of both. The range of WES3 Interface devices allow the function of a WES3 network to be highly customized to suit specific use cases and site requirements.
  • Page 5 General Installation INPUT / OUTPUT CONNECTIONS The Interface has two auxiliary relay outputs and one auxiliary input. These allow the WES3 system to be expanded to interact with external devices. Connections to third-party devices (both inbound and outbound) are unmonitored. Where remote monitoring is...
  • Page 6 WES3 Standard Interface The WES3 Standard Interface unit allows you to connect your EN54-25 compliant WES3 network with a host of other building managements and emergency systems on site including access control systems, lifts and emergency lighting. The WES3 Standard Interface is suited to a wide range of projects, be it a new build through to extensive refurbishment projects. The Interface is capable of communicating with most commonly used technologies in existing buildings, construction projects and site cabins.
  • Page 7 1 green flash every 4 seconds Amber LED Each WES3 unit monitors itself for a number of faults. These are indicated via the amber LED, which will flash in grouped patterns with longer than usual gaps in between them.
  • Page 8 WES3 Water Interface The WES3 Water Interface in combination with a water detection sensor is designed to trigger if water is detected along the sensor length (zone). The input triggers a water alert on the WES3 Connect base station and an immediate notification in (where used) the REACT cloud and mobile application.
  • Page 9 Testing: Once installed, the system can be tested by placing a wet cloth over the tape or cable to simulate a water leak. The WES3 Water Interface will change state and trigger an alert on the WES Connect base station and (where used) the REACT mobile application.
  • Page 10 3 red flashes and 1 green flash Clearing the Water alert from the WES3 system will need to be performed on the WES3 Connect unit by Note: selecting the ‘WTR’ alert on the Warnings screen, pressing the green tick box on the keypad, then pressing the arrow next to Yes to confirm.
  • Page 11 Nothing is attached to the input but the output is connected to the shut-off valve. In this scenario the water is detected by 120 1 which triggers the input and raises a “WTR” alert on the WES3 network. This triggers the output on all Water I20’s (in this instance I20 2 and also its own valve at 120 1).
  • Page 12 In the event of a medical alert being raised from a WES3 call point, the output of the WES3 Medical Interface will be activated, and can be used to trigger any third-party device such as a local audio-visual signal, or a hard-wired autodialler.
  • Page 13 The red LED will flash every 4 seconds when the unit has been triggered. Red LED flash every 4 seconds Clearing the medical alert from the WES3 system will need to be performed on the WES3 Connect unit by Note: selecting the ‘MED’...
  • Page 14 WES3 Maintenance Interface The WES3 Maintenance Interface unit will detect any maintenance issues from any unit in the WES3 network and raise an alert as soon as the fault/issue is detected. The alert activates the output of the unit, and can trigger connected devices such as an autodialler, monitoring system or Building Management System (BMS).
  • Page 15 Green flash every 4 seconds Amber LED Each WES3 unit monitors itself for a number of faults. These are indicated via the amber LED, which will flash in grouped patterns with longer than usual gaps in between them.
  • Page 16 Simplified UK & EU Declaration of Conformity for the WES range of products: Hereby, Ramtech Electronics Limited declares that the radio equipment type WES, are in compliance with the UK Radio Equipment Regulations 2017 and Directive 2014/53/EU Full text of the UK & EU Declaration of Conformity is available by contacting us at the following internet address: www.

This manual is also suitable for:

Wes3 standardWes3 waterWes3 medicalWes3 maintenance
