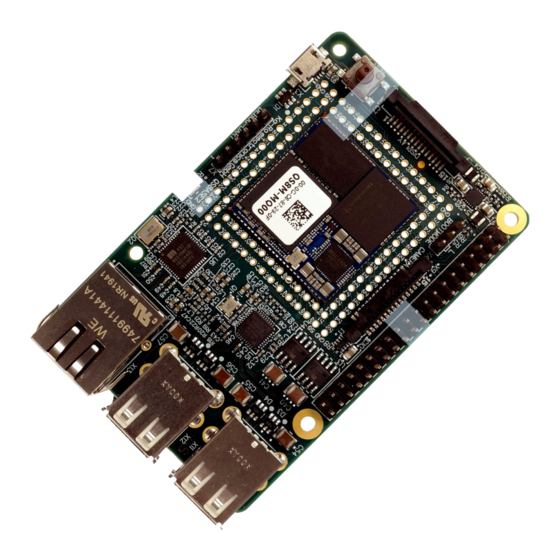

QS8M Evalkit
QS8M Evalkit
QS Family - QFN Style Solder-Down Computer-on-Modules
QS8M Solder-Down Computer-on-Module
NXP i.MX 8M Mini 1.6GHz Quad Cortex-A53
1GB DDR3L
4GB eMMC
27mm square, 2.3mm total height
QFN type lead style
1mm pitch
100 pads
Evalkit
Gb Ethernet
4 port USB
MIPI display and camera connectors
USB power supply
4-layer PCB, single sided assembly
Size: 56mm x 85mm
Micro USB client & power supply
Debug UART
All 100 pins on 0.1" pitch solder pads
Gb Ethernet
4 port USB
Getting Started:
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
https://www.karo-electronics.com/qs8m
www.karo-electronics.de
QSCOM: QS8M
2-lane MIPI Display Connector
MIPI Camera Connector
Expansion Header
Advertisement
Table of Contents
Summary of Contents for KaRo QS Series
- Page 1 Debug UART All 100 pins on 0.1” pitch solder pads MIPI Camera Connector Gb Ethernet Expansion Header 4 port USB Getting Started: https://www.karo-electronics.com/qs8m Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10) www.karo-electronics.de...
-
Page 2: Key Features
◦ 4x UART, 3x I²C, 2x SPI, 4x PWM, SAI, SPDIF ◦ Up to 70x 3.3V General Purpose I/O OS Support Linux • Windows 10 IoT • Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10) www.karo-electronics.de... - Page 3 1080p60 H.264, VP8 None Connectivity 2x USB 2.0 1x USB 2.0 Grade / Temperature Industrial / -25°C to 85°C Ordering Information QS8M/MQ/1GS/4GF/E85 QS8M/ND/512S/4GF/E85 Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10) www.karo-electronics.de...
- Page 4 However, this is only possible if a peripheral or plug can be connected directly without crossing other routes. Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10) www.karo-electronics.de...
- Page 5 The ground pad solder mask on the bottom side of the QSCOM module is divided into sections for a better reliability of the solder joint and self-alignment of the component. Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10) www.karo-electronics.de...
-
Page 6: Soldering Recommendations
The lower component settling with this ensures that the pads at the edge are always soldered even at vertical misalignment by distortion or warping. Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10) www.karo-electronics.de... - Page 7 QS8M Packaging Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10) www.karo-electronics.de...
- Page 8 GPIO1[29] Only used for RGMII ENET_TX_CTL ENET_TX_CTL ENET1_RGMII_TX_CTL GPIO1[22] RMII.TX_EN; RGMII.TX_CTL ENET1_RGMII_TXC For RMII—ENET_TXC works as RMII.TX_ERR ENET_TXC ENET_TXC GPIO1[23] ENET1_TX_ER For RGMII—ENET_TXC works as RGMII.TX_CLK Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10) www.karo-electronics.de...
-
Page 9: Power Supply & Reset
Boot mode select L: Boot from eMMC / H: Boot from UART/USB MIPI-CSI LCD_DE MIPI_CSI_DATA3_P LCD_VSYNC MIPI_CSI_DATA3_N LCD_HSYNC MIPI_CSI_DATA2_P LCD_CLK MIPI_CSI_DATA2_N LCD_R1 MIPI_CSI_DATA1_P LCD_R2 MIPI_CSI_DATA1_N LCD_R3 MIPI_CSI_DATA0_P LCD_R4 MIPI_CSI_DATA0_N Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10) www.karo-electronics.de... - Page 10 DSI_DN3 MIPI_DSI_DATA3_N LVDS_TX3N LCD_G1 DSI_DP2 MIPI_DSI_DATA2_P LVDS_TX2P LCD_B0 DSI_DN2 MIPI_DSI_DATA2_N LVDS_TX2N DSI_DP1 MIPI_DSI_DATA1_P LVDS_TX1P DSI_DN1 MIPI_DSI_DATA1_N LVDS_TX1N DSI_DP0 MIPI_DSI_DATA0_P LVDS_TX0P DSI_DN0 MIPI_DSI_DATA0_N LVDS_TX0N Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10) www.karo-electronics.de...
- Page 11 GPIO5[08] SPIB_MOSI ECSPI1_MOSI UART3_TX GPIO5[07] SPIB_SCK ECSPI1_SCLK UART3_RX GPIO5[06] Pins used for manufacturing and debugging – leave unconnected JTAG_TDI JTAG_TCK JTAG_TDO JTAG_TRST_B JTAG_TMS Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10) www.karo-electronics.de...
-
Page 12: Fcc Notice
This kit is designed to allow product developers to FCC NOTICE: evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product. This kit is not a finished product and when assembled may not be resold or otherwise marketed unless all required FCC equipment authorizations are first obtained.
