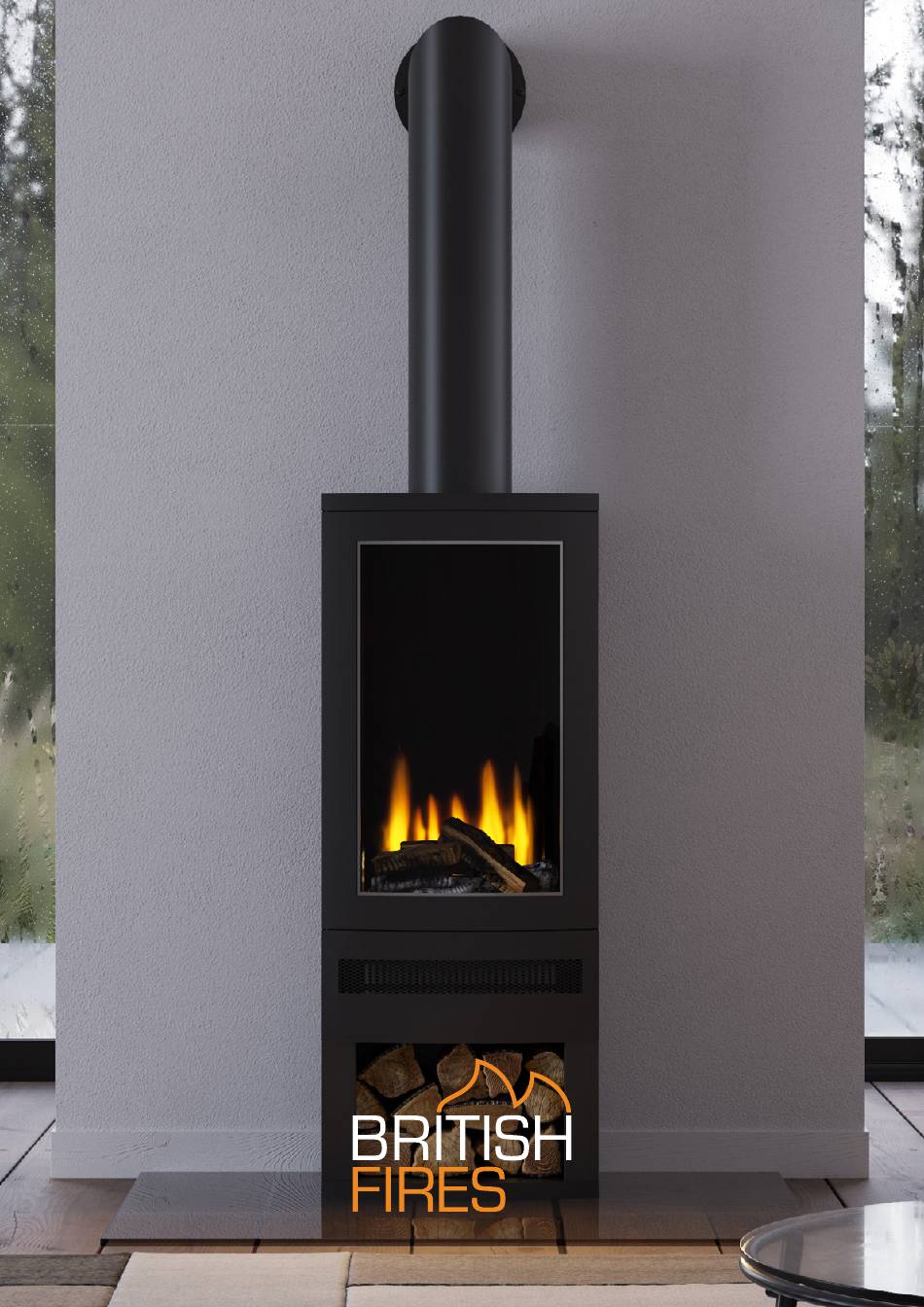

BRAMSHAW ELECTRIC STOVE
INSTALLATION & USER INSTRUCTIONS
© 2023 British Fires

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BRAMSHAW and is the answer not in the manual?

Questions and answers

Related Manuals for British Fires BRAMSHAW

Summary of Contents for British Fires BRAMSHAW

  • Page 1 BRAMSHAW ELECTRIC STOVE INSTALLATION & USER INSTRUCTIONS © 2023 British Fires...

  • Page 2: Table Of Contents

    INSTALLATION & USER INSTRUCTIONS Section Contents Page Important Notes 02–03 Installation Requirements Appliance Data for Bramshaw Stove Unpacking the Stove Door Adjustment Component Checklist Site Requirements Clearances Installation – Wall Mounted 07–11 Installation – Log Stand 12–13 Installation – Pedestal Installation –...

  • Page 3: Important Notes

    Do not use this heater in small rooms when they are This product is only suitable for well insulated occupied by persons not capable of leaving the spaces or occasional use. © 2023 British Fires...

  • Page 4: Installation Requirements

    1.0 IMPORTANT NOTES - CONTINUED Read all instructions before installing or using this or flammable vapors or liquids are used or stored. heater. Use this heater only as described in this This heater is hot when in use. To avoid burns, manual.

  • Page 5: Appliance Data For Bramshaw Stove

    3.0 APPLIANCE DATA FOR THE BRAMSHAW LED ELECTRIC STOVE Weight (kg) 66 lbs. Dimensions H 39 ⅞ x W 15 ¾ x D 12 ⅕ inches Supply Voltage and Rating Power 120V AC, 60Hz Heating Elements 1500 W Lighting Location...

  • Page 6: Unpacking The Stove

    4.0 UNPACKING THE STOVE 7.0 SITE REQUIREMENTS Read all t he ins t ruc t ions befor e It should be noted that the appliance continuing to unpack or install this stove. creates warm convected air currents. Carefully lift the stove from the carton. These currents move heat from the Check that the contents correlate with room surroundings to, and up the wall...

  • Page 7: Clearances

    3 feet. There are no clearances for above the appliance, apart from being clear of curtains and drapes. IMPORTANT: Please read completely through the instructions and verify that all listed parts are present before assembly. 3 feet © 2023 British Fires...

  • Page 8: Installation - Wall Mounted

    9.0 INSTALLATION – WALL MOUNTED CAUTION: DO NOT CONNECT THE APPLIANCE TO THE ELECTRICAL SUPPLY AT THIS TIME.. British Fires assumes absolutely no responsibility then the wall plugs and fixing screws provided for injuries and damages that may occur due to may be used.
  • Page 9 1½ in. with an ⅓ in. drill bit. the wall by the wall fastening screws Insert the Wall Anchors (E) into the holes using a provided (D) into the wall anchors hammer, if required. through the wall bracket. © 2023 British Fires...
  • Page 10 9.0 INSTALLATION – WALL MOUNTED CONTINUED Remove 4x screws from the back of the appliance. Secure the Hooks (B) to the appliance by fastening the screws previously removed.
  • Page 11 9.0 INSTALLATION – WALL MOUNTED CONTINUED Use two people to lift the appliance and hang it onto the wall bracket (A). © 2023 British Fires...
  • Page 12 9.0 INSTALLATION – WALL MOUNTED CONTINUED Secure the bottom of the wall bracket to the bottom of the appliance with the firebox screws provided (C)

  • Page 13: Installation - Log Stand

    Secure the bottom of the wall bracket to the bottom of the appliance with the firebox screws provided (C) Lay the stove on its back and assemble the log box onto the bottom of the stove with firebox screws provided (F) © 2023 British Fires...
  • Page 14 9.1 INSTALLATION – FREE STANDING LOG STAND CONTINUED Secure the base to the pillar with the screws previously removed. Secure the base to the pillar with the screws previously removed.

  • Page 15: Installation - Pedestal

    Pillar on to the bottom of the appliance with the firebox provided screws (F). Secure the base to the pillar with the 4x screws Secure the base to the pillar with the screws previously removed. previously removed (F). © 2023 British Fires...

  • Page 16: Installation - Stove Pipe

    Insert the small end of the Flue Pipe into the top recessed © 2019 British Fires hole on the appliance, also ensuring that the opposite flanged end of the pipe is touching the wall.
  • Page 17 Place the Flue Pipe back into its final i r e r i t position and secure the Flue Pipe to © 2019 British Fires the wall by fastenings provided into the wall anchors. © 2023 British Fires...

  • Page 18: Operating The Appliance

    10.0 OPERATING THE APPLIANCE The appliance can be operated either by the control panel located on the front (behind the stove door) or by using the remote control supplied. For the appliance to operate, the manual ON/OFF switch, located on the left hand side of the control panel must be switched to the “I”...
  • Page 19 Press the Heater button again to select Half Heat setting (750W) and H1 with the orange flame symbol will be displayed. © 2023 British Fires...
  • Page 20 10.0 OPERATING THE STOVE CONTINUED FLAME OPERATION BY REMOTE CONTROL ONLY Setting the Time & Day (24 hour clock) By pressing the Flame Picture button, you can select from four different Flame Press the Power button to turn the unit on. Picture options: Press &...
  • Page 21 The time & day must be set before the Timer Mode can be activated. The unit can still be operated normally when in the timer mode using the Heater function setting flashing, adjust the minute setting using the & buttons. © 2023 British Fires...
  • Page 22 11.0 SAFETY CUTOUT SYSTEM This product has one non-self-resetting overheat protection device (thermal cut-out) which will activate if the air inlets or outlets are obstructed. For safety reasons the fire will NOT switch on again automatically, the following procedure must be carried out before the fire can be operated.

  • Page 23: Cleaning & Maintenance

    Slide open the battery cover on the back of the remote control. Insert two new AAA batteries into the remote control. Place the battery cover back onto the remote. NOTE: Keep the batteries out of the reach of children. © 2023 British Fires...

  • Page 24: Troubleshooting Guide

    13.0 TROUBLESHOOTING GUIDE My Electric Stive Fire... Remedy is not switching on Ensure mains switch is on. Replace the fuse in the plug. is not emitting any heat The fire is fitted with an energy saving thermostat. If the temperature in the room is higher than the temperature selected on the fire, then the thermostat will stop the heater from turning on.

  • Page 25: Hard Wiring The Appliance

    The adapter should not be used if a three-slot grounded receptacle is available. NOTE: Adaptors are NOT for use in Canada. © 2023 British Fires...

  • Page 26: Bramshaw Stove Dimensions

    PLEASE ENSURE THE PRODUCT IS TURNED OFF BEFORE HARD-WIRING 16.0 HARD WIRING Open the door of the appliance and remove the 2x screws holding the fuel bed cover bracket in place,with a phillips headed screw driver (there is also a stud at the rear of the bracket locating to the rear of the appliance) Remove 1x screw from both sides of the fuel bed.
  • Page 27 Now, remove the 18x screws from the rear panel. Carefully, remove the heater assembly from the rear of the appliance, making sure that the wires or any parts of the assembly don’t get caught on removal. © 2023 British Fires...
  • Page 28 16.0 HARD WIRING Remove the 2x phillips head screws from the cable clamp on the underside of the heater assembly. With a fine flat head screw driver remove the Neutral and Live from the terminal. Then with a 9/32” wrench remove the Earth wire. Remove the cable gland from the power cord.
  • Page 29 Insert the fuel bed, in at the front first followed by the rear. Then screw the fuel bed down both sides. Insert the fuel bed cover bracket into the rear, then screw them back down each side © 2023 British Fires...
  • Page 30 17.0 BRAMSHAW DIMENSIONS Front View Side View Top View 15 ¾ in 31 in 39 ⅞ in 12 ⅕ in 8 ⅞ in 12 ⅕ in Optional Stove Pipe Specifications 9 ⅞ in 25 ⅛ in 5 ½ in 21 ⅘ in...

  • Page 31: Terms And Conditions

    In no event will British Fires or its Directors, Officers, or Agents, be liable to the purchaser Terms & Conditions or any third party.
  • Page 32 HS93382LR United Kingdom stated, all rights, including copyright in the text, images and layout of this booklet is owned by British Fires. You All instructions must be RBK House are not permitted to copy or adapt any of the content...
