Magnavox 15MF200V Quick Use Manual

There are several ways to connect your new LCD TV Monitor to your other
equipment. This Quick-Use Guide shows the easiest most common connection.

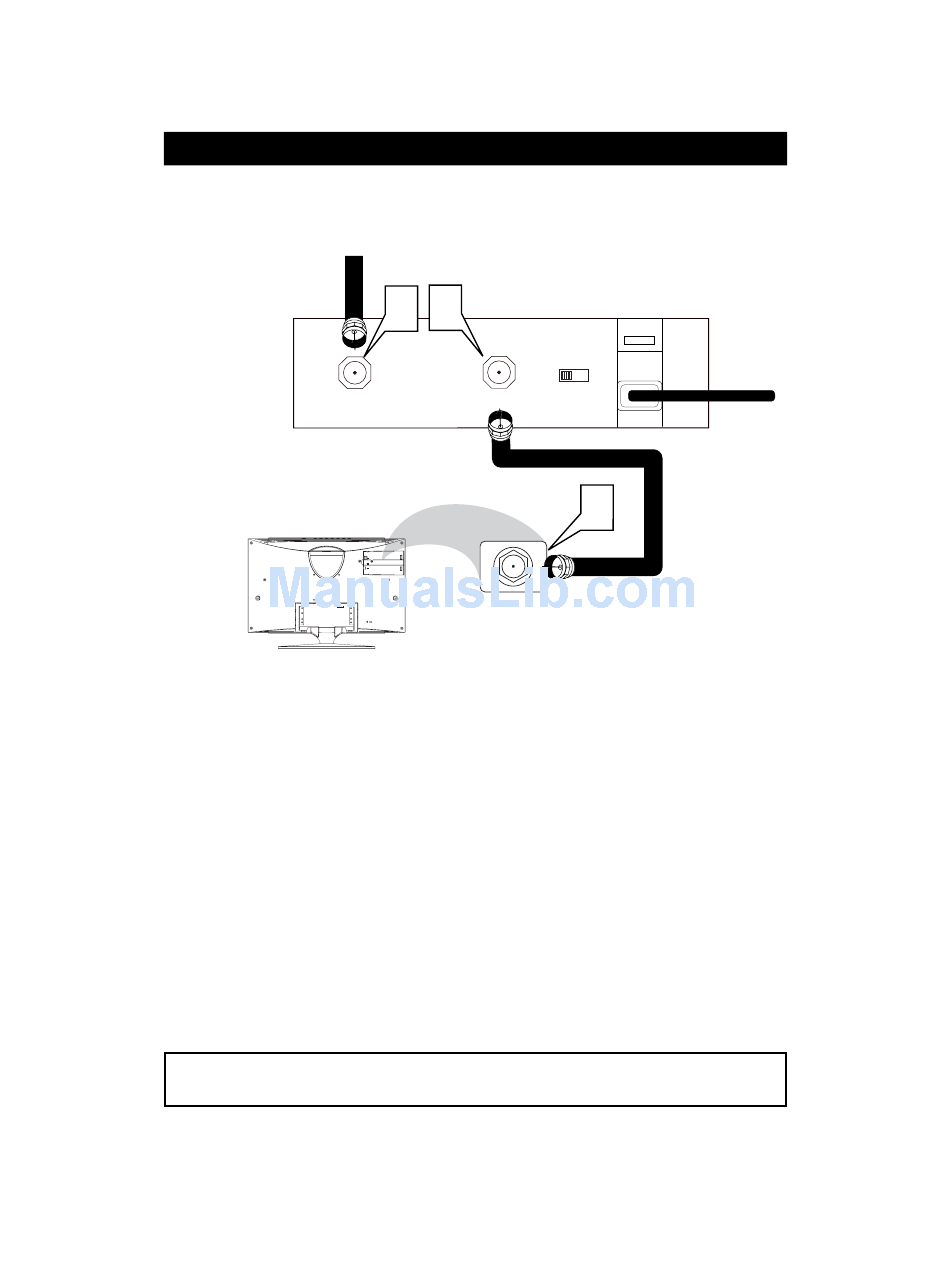

Cable TV signal from
the Cable Company
CABLE
75Ω
Coaxial
Cable
DC IN
ANALOG 1 2
AUDIO

Cable Box with RF In/Out Jacks

This connection will not supply Stereo sound to the LCD TV Monitor. The sound from the Cable
Box will be monaural (single-channel, not left and right).
Connect the Cable TV signal to the IN jack (or RF IN or CABLE IN) on the Cable
1
Box.
Connect an RF coaxial cable (not supplied) to the OUT jack (or TO TV or RF OUT)
2
of the Cable Box.
Connect the other end of the coaxial cable to the TV jack on the LCD TV Monitor.
3
Screw it down finger tight.
Set the Channel 3/4 (or Output channel) switch of the Cable Box to 3 or 4. Set the TV to
4
the same channel. When watching TV programming, change channels at the Cable Box,
not the LCD TV Monitor.
NOTE: To see how to make other connections, please refer to the Owner's
Quick-Use Guide
1 2
TO TV
IN
TV
TV
S-VIDEO
VIDEO
AUDIO OUT
Manual.
OUTPUT
CH
3 4
3
75Ω jack on rear
of Television
