Summary of Contents for E-LINK LNK-GY10GP-SFP
- Page 1 LNK-GY10GP-SFP Quick Installation Guide V1.0...

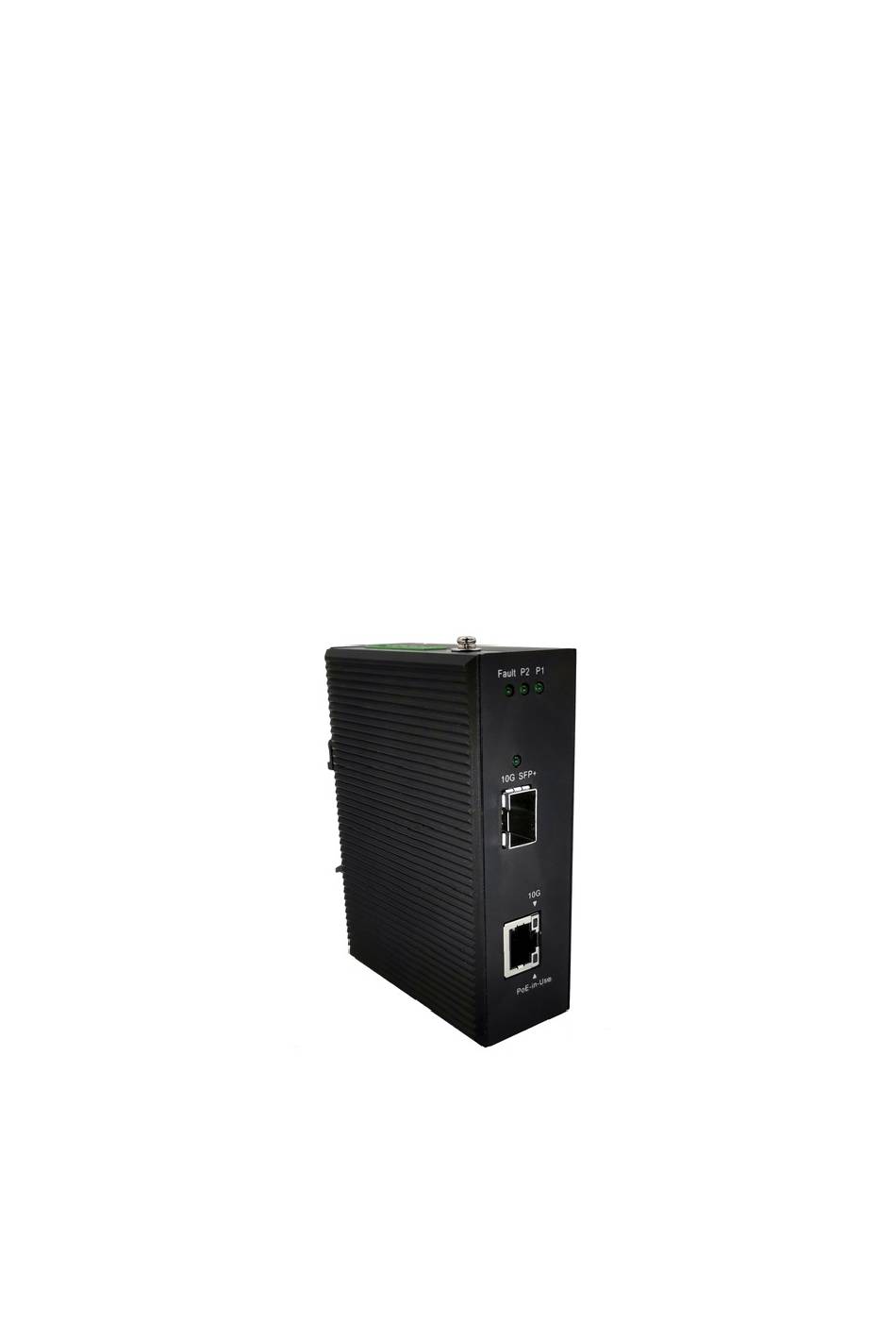

- Page 2 Humidity: 5% ~ 95% RH Non-condensing Maximum power consumption: 4.36w (PoE without load) 2.2 Front Panel The front panel of the LNK-GY10GP-SFP contains 1*port 10000Base-T RJ45 interface with IEEE 802.3bt PoE++ injector function, 1*port 10GBase-X SFP+ interface .
- Page 3 3.3 Rear Panel The Rear panel is shown as below: 2.3 LED Indicators Label Type Color State Description Lights to indicate the power is on P 1/2 Power Status Green Indicate the power is off...
- Page 4 Power fault alarm Fault Fault Alarm Green The Power is normal Lights to indicate the port is link up Green Indicates that the port is link down Lights to indicate the PoE++ is in 10G Ethernet link status Yellow Indicates that the PoE++ is not in Lights to indicate the optical module in place on the premise SFP+...
- Page 5 1 0 G + P o E Power Line DC 5. Mounting Procedures The LNK-GY10GP-SFP can be mount installed on a chassis/wall, there are 2 hangers on the rear panel of LNK-GY10GP-SFP with shipment for mount installation as following picture shows:...
- Page 6 Step2. Turn over the fins and restore the four screws back to the back panel as shown below Step3. For brick and cement wall, place the LNK-GY10GP-SFP to the proper location where it is going to be installed, use a marker or pen to identify the hole locations...
- Page 7 Step4. Follow the marked hole location, drill four holes using 6mm drill tip and nail in four plastic wall-mount nuts into the holes, then mount the LNK-GY10GP-SFP on the wall with four wall-mount screws. For the wall or location where the screws can be screwed in directly, the LNK-GY10GP-SFP can be mounted with four wall-mount screws without the need of plastic wall-mount.
- Page 8 Positive(VCC+), Pair 2 Positive(VCC+), Pair 2 Positive(VCC+), Pair 1 Negative(VCC-), Pair 2 Negative(VCC-), Pair 2...
