LNK-IMC3011-SFP
Hardened 10/100/1000Base-T to 1000Base-X SFP Ethernet Media Converter
This quick start guide describes how to install and use the Gigabit media converter. This is the Media Converter of choice for harsh environments
subject to space and temperature constraints.
Overview
LNK-IMC3011-SFP is a 10/100/1000Base-T to 1000Base-X Ethernet media converter. The converter
provides SFP ports to support the use of SFP (Small Form-factor Pluggable) transceiver module. User
can chose different types of SFPs (1000M only). The Switch supports 1 or 2 core Single-mode or
Multi-mode fiber. The product operates at temperatures ranging from -40
installed or wall-mount installed.
General
To ensure trouble free transportation and storage, all products must be thoroughly inspected, tested and
properly packed before delivery. Check the product upon receipt for any visible damage which may have
been caused during shipment.
Package Content
Hardened 10/100/1000Base-T to 1000Base-X SFP Ethernet Media Converter x 1
Quick Start Guide x 1
Physical Description

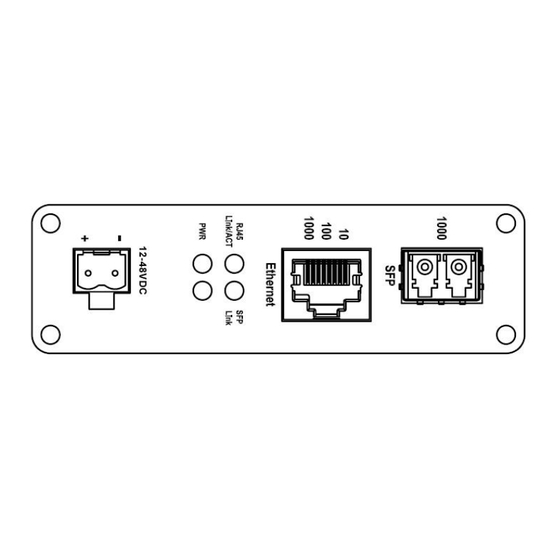

Front Panel
Rear Panel
o
1
C to 75
C and support Din-rail
o
V1.0
Advertisement
Table of Contents
Related Manuals for E-LINK LNK-IMC3011-SFP
Summary of Contents for E-LINK LNK-IMC3011-SFP

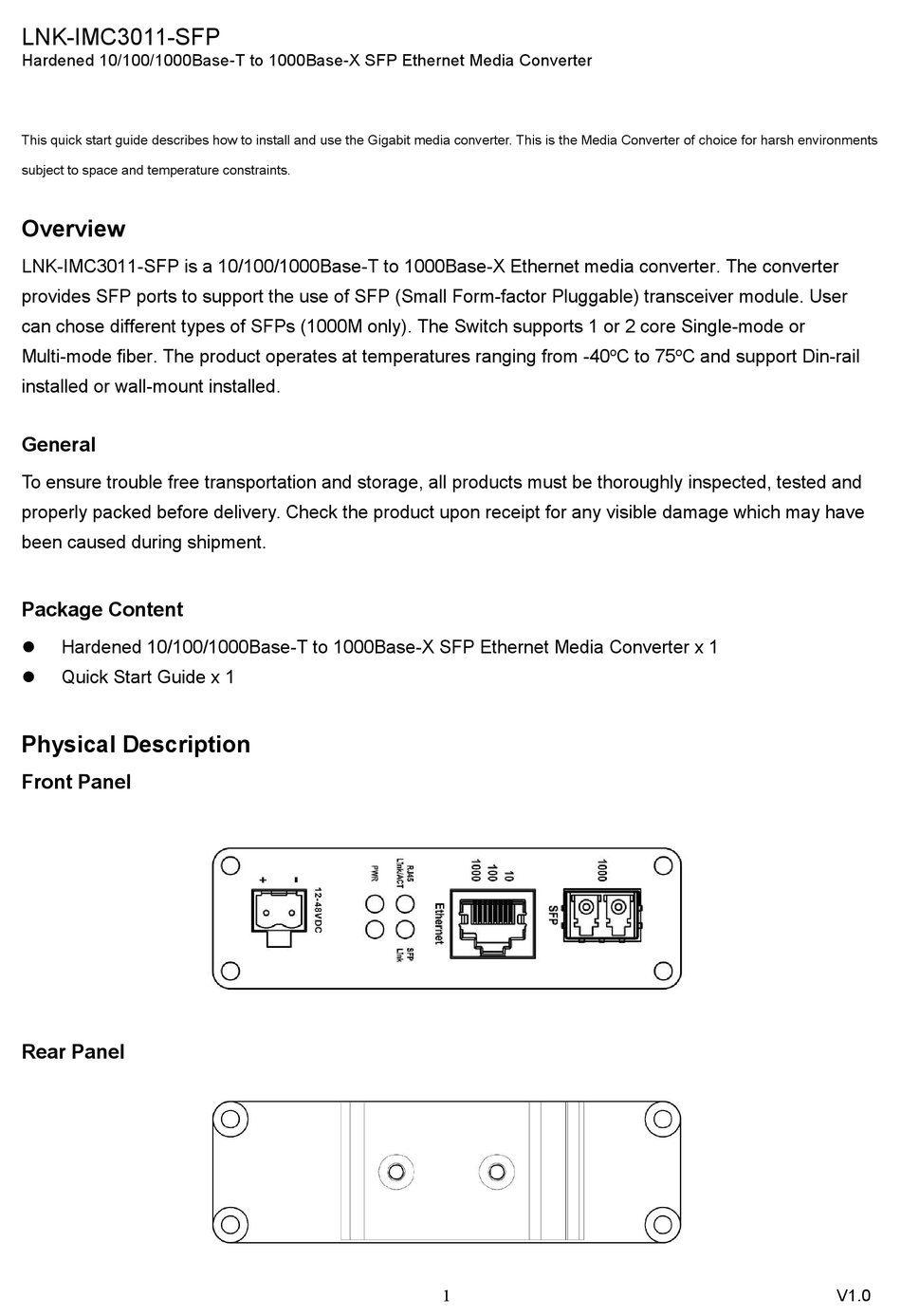

- Page 1 Overview LNK-IMC3011-SFP is a 10/100/1000Base-T to 1000Base-X Ethernet media converter. The converter provides SFP ports to support the use of SFP (Small Form-factor Pluggable) transceiver module. User can chose different types of SFPs (1000M only). The Switch supports 1 or 2 core Single-mode or Multi-mode fiber.
- Page 2 LNK-IMC3011-SFP Hardened 10/100/1000Base-T to 1000Base-X SFP Ethernet Media Converter Installation SFP Optical Module You can select different SFP modules as required (Please refer to our SFP Ordering Options for the appropriate module). To insert/remove the SFP, the procedures are as follows: 1.
- Page 3 Connect the LNK-IMC3011-SFP to the power supply. Ensure the power supply in connected to a power source and the PWR indicator is ON. If not, please ensure that the power cable is connected properly and the power supply is functioning normally.
- Page 4 LNK-IMC3011-SFP Hardened 10/100/1000Base-T to 1000Base-X SFP Ethernet Media Converter Interface RJ-45 Pin Assignment Assignment MDIX TP0+ TP1+ TP0- TP1- TP1+ TP0+ TP2+ TP3+ TP2- TP3- TP1- TP0- TP3+ TP2+ TP3- TP2- Power Connection Description Power Input +12~48VDC LED Indicators Indicator...
- Page 5 LNK-IMC3011-SFP Hardened 10/100/1000Base-T to 1000Base-X SFP Ethernet Media Converter Dimensions of the LNK-IMC3011-SFP (Unit: mm) Functional Description Converts 10/100/1000Base-T to 1000Base-X SFP RJ45 port support 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto-MDI/MDIX Fiber port supports external 1000BASE SFP Support 12 VDC or 24 VAC power input ...
