SWITCHING MODE POWER SUPPLY
RPS-1230-SWM is a high efficiency, compact, lightweight, high performance switching power supply. It
is also engineered to minimize the noise specifically for the communication. Even, when the noise
occurs, it can be eliminated by the Noise Offset control. With METER switch you can display voltage
(V) or current (A) in the clear and backlit meter.

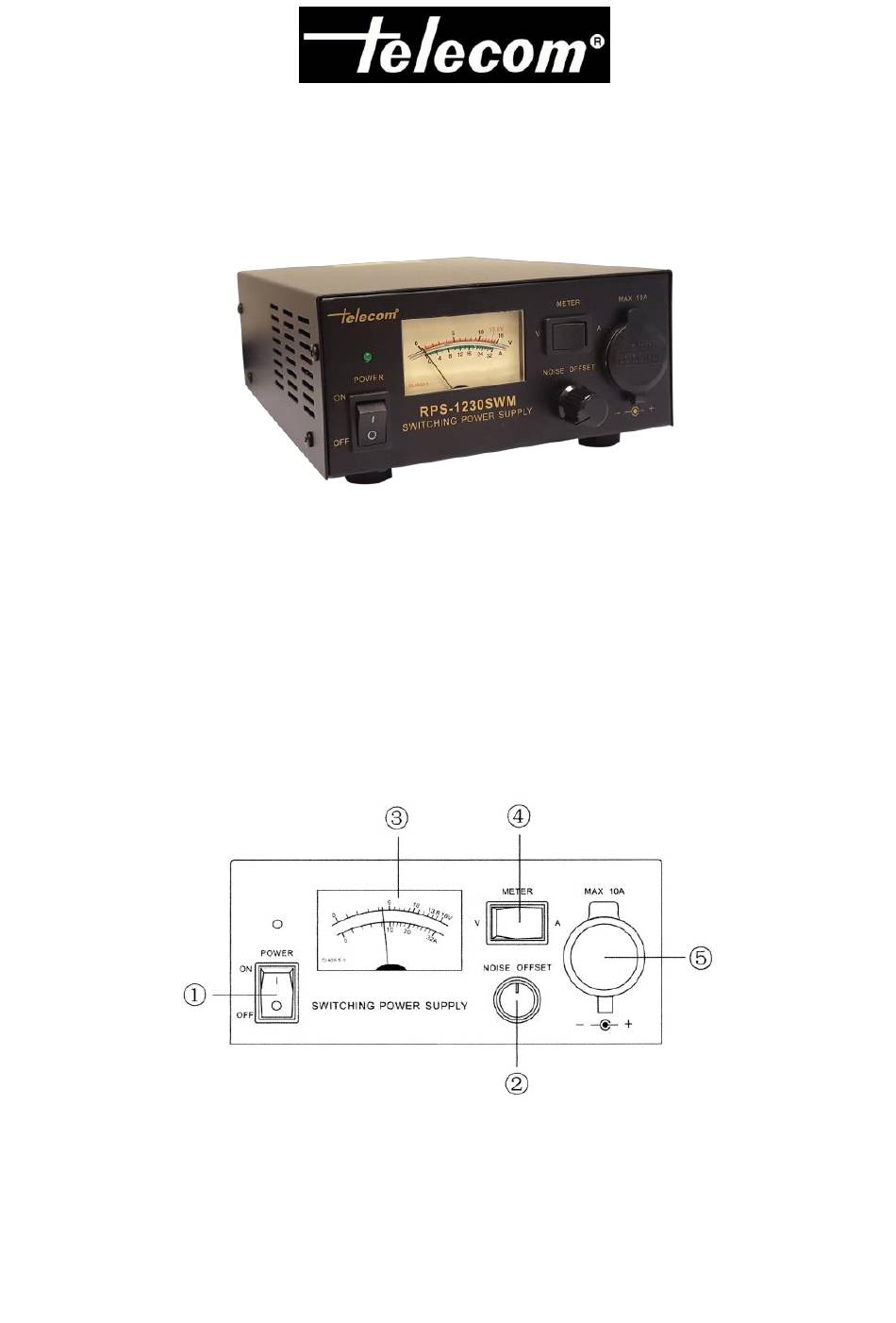

1. Power switch: turns the unit ON and OFF
2. Noise Offset: adjust it to eliminate the pulse noise of the power supply. This function is
specially designed for communication. (Effectiveness may vary because of then frequency
and mode)
3. Meter: displays voltage (V) or current (A)
4. METER switch: select voltage (V) or current (A).
5. Cigarette plug terminal: 10 A max.
