Switching mode dc regulated power supply (8 pages)
Summary of Contents for Telecom RPS-1230-SWM

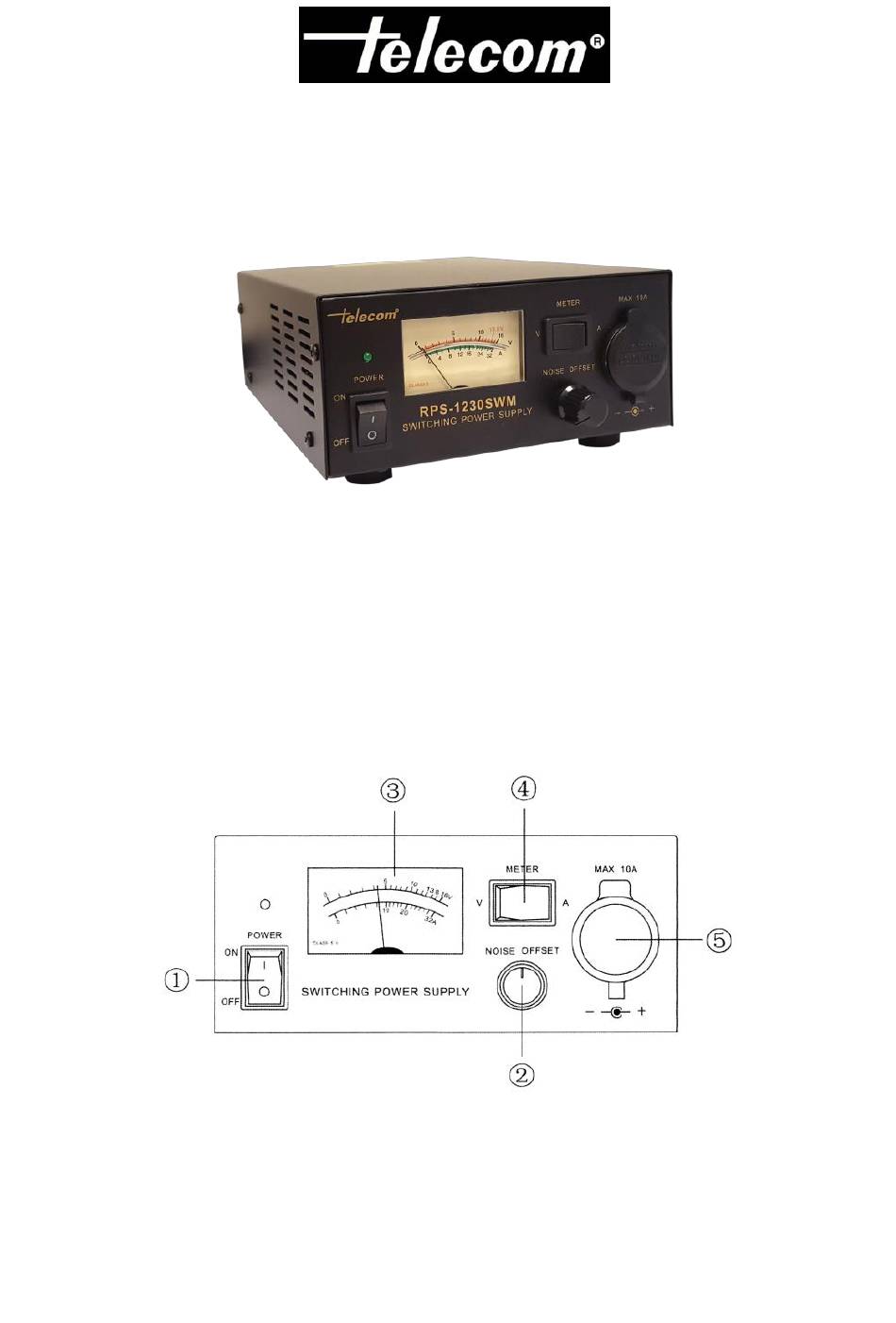

Page 1
RPS-1230-SWM INTRODUCCIÓN La RPS-1230-SWM es una fuente de alimentación conmutada de alta eficiencia, compacta y ligera. Está diseñada para minimizar el ruido específicamente para comunicaciones. Incluso si hay ruido, puede ser eliminado con el control Noise Offset. Con el conmutador METER podrá visualizar el voltaje (V) o consumo (A) en el claro y visible medidor retroiluminado.
Page 2
PARTE TRASERA Terminales de salida: 30 A máximo. Rojo: positivo (+), Negro: negativo (-) Ventilador Fusible ESPECIFICACIONES Voltaje de entrada 220 VAC Voltaje de salida 13.8 V Protecciones Cortocircuito / Sobrecarga Consumo máximo 30 A Consumo continuo 20 A Fusible Medidor Voltaje / Consumo, retroiluminado Dimensiones...
Page 3

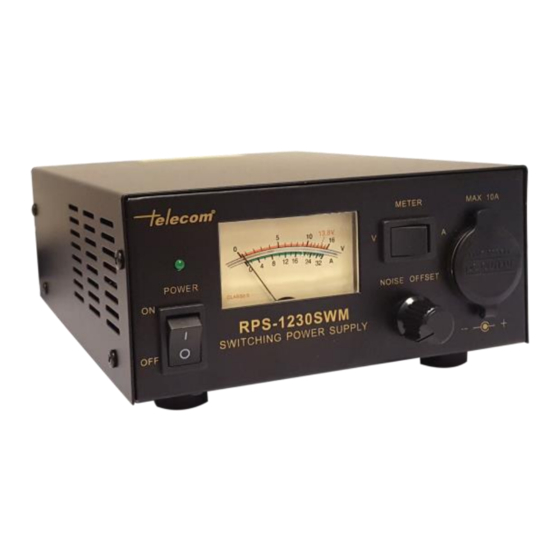

RPS-1230-SWM INTRODUCTION RPS-1230-SWM is a high efficiency, compact, lightweight, high performance switching power supply. It is also engineered to minimize the noise specifically for the communication. Even, when the noise occurs, it can be eliminated by the Noise Offset control. With METER switch you can display voltage (V) or current (A) in the clear and backlit meter.
Page 4
BACK Output terminals: 30 A max. Red: positive (+), Black: negative (-) Cooling fan Fuse SPECIFICATIONS Input voltage 220 VAC Output voltage 13.8 V Protections Short-circuit / Overload Max. Output current 30 A Continuous current 20 A Fuse Meter Voltage / Current, backlit Dimensions 150 x 70 x 220 mm.
