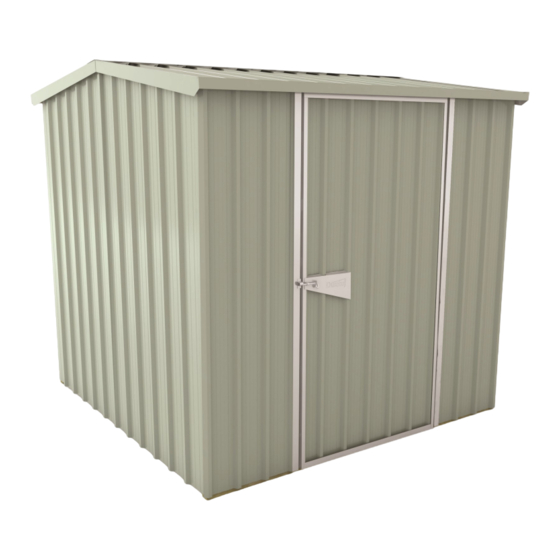

Duratuf PG66 Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Duratuf Manuals
  4. Outdoor Storage
  5. PG66
  6. Assembly instructions manual

Duratuf PG66 Assembly Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

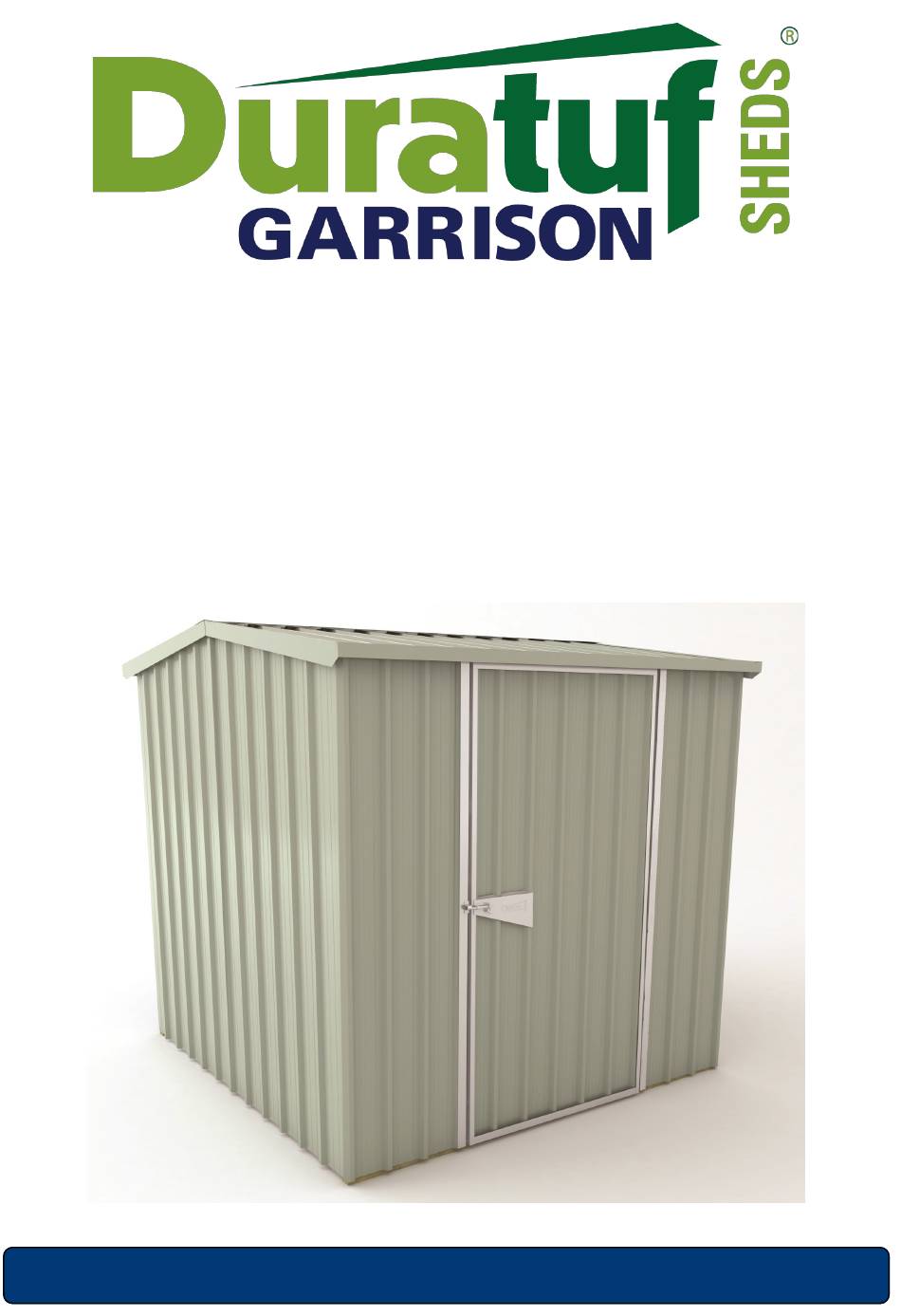

ASSEMBLY INSTRUCTIONS
PG66
BASE SIZE: 2.020m x 2.020m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PG66 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Duratuf PG66

Summary of Contents for Duratuf PG66

  • Page 1 ASSEMBLY INSTRUCTIONS PG66 BASE SIZE: 2.020m x 2.020m...
  • Page 2 CHECK OUT OUR ASSEMBLY VIDEO...

  • Page 3: Before You Start

    HEX DRIVE SKILL SAW (timber floor only) WARRANTY REQUIREMENTS: The following maintenance process needs to be adhered to, to qualify for the steel warranty of your Duratuf Garrison shed. • Wash all surfaces annually using a hose and soft nylon brush.

  • Page 4: Parts List

    PG66 PARTS LIST PACK 1 CLADDING DESCRIPTION DIAGRAM CHECKED Front & Back Wall - 1.890m Side Wall Angle - 1.920m (measurement along centre of sheet) Side Wall Angle - 1.980m (measurement along centre of sheet) Roof - 2.200m Door Sheet Narrow - 1.850m Door Sides - 1.850m...
  • Page 5 PG66 PARTS LIST TIMBER PACK CHECK LIST INCLUDED IN PACK 2 DESCRIPTION DIAGRAM Front/Back Bottom Plates - H4 (Green) 2.020 m Front & Back Top Plate - H1 (Red) 2.020 m Side Wall Bottom Plates - H4 (Green) 2.020 m Side Wall Top Plates - H1 (Red) 2.020 m...

  • Page 6: Parts Location

    PARTS LOCATION Roof Sheets Ridge Flashing Barge Spouting Back Wall Sheets Ridge Beam Top Plate Back Jack Stud Top Plate Side Top Plate Front Door Brace Front Wall Sheet Hinge Door Sheets Door Jambs Side Wall Sheets Padbolt Support Bottom Plate Side Front Wall Sheet Door Side Flashing Door Top/Bottom Flashing...
  • Page 7 FOUNDATION No doubt by now you will have decided what sort of base you are putting down. Please read the section that applies to your situation. If you choose to pour a concrete base you will need to decide whether you wish to raise the base plate of your shed. This allows the cladding to protrude below the surface of the concrete and ensures a water tight pad.
  • Page 8 ASSEMBLE DOOR SELECT: 2 x 1.850 m Door Sheets (Narrow) 2 x 0.945 m Door Top/Bottom Flashings 2 x 1.850 m Door Side Flashings 3 x Hinges 1 x Padbolt Support Flashing 2 x 1.160 m Door Brace Flashings 59 x Rivets fig.3 STEP 1: •...
  • Page 9 ASSEMBLE SIDE PANELS SELECT: IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER BASE PLATE –READ THE FOLLOWING; 4 x 1.920 m Gable Wall Sheets (Angled) 4 x 1.980 m Gable Wall Sheets (Angled) For sheds with Raised Base Plate option only (see page 6), deduct 2 x 2.020 m Top Plates (Red) 30mm from measurement shown between Top and Bottom Plates on 2 x 2.020 m Bottom Plates (Green)
  • Page 10 ASSEMBLE BACK PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 4 x 1.890 m Wall Sheets For sheds with Raised Base Plate option only (see page 6), deduct 1 x 2.020 m Top Plate (Red) 30mm from measurement shown between Top and Bottom Plates on 1 x 2.020 m Bottom Plate (Green) all wall panels, so cladding protrudes 20mm below bottom plate...
  • Page 11 ASSEMBLE FRONT PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 2 x 1.890 Wall Sheets For sheds with Raised Base Plate option only (see page 6), deduct 1 x 2.020 Top Plate (Red) 30mm from measurement shown between Top and Bottom Plates on 1 x 2.020 Bottom Plate (Green) all wall panels, so cladding protrudes 20mm below bottom plate 2 x 1.890 Door Jamb Flashings...

  • Page 12: Wall Panel Assembly

    WALL PANEL ASSEMBLY SELECT: 4 x Pre-made Wall Panels SIDE 16 x 40mm Screws OVERLAPS BACK 16 x Rivets TOP PLATE STEP 1: BACK WALL • Stand the Back Panel and the Side Panel BOTTOM PLATE up using someone to support the panels while they are screwed together.

  • Page 13: Roof Assembly

    ROOF ASSEMBLY SELECT: IMPORTANT—FOR SHEDS WITH OPTIONAL CLEAR ROOF PANEL 4 x 2.200 m Roof Sheets Assemble as below, making sure that the Clear Roof Sheets 2 x 2.055 m Spouting overlap the standard roof sheets on both sides. 4 x 1.102 m Barges 1 x 2.055 m Ridge Flashing The Clear Roof Panel must be secured to the Top Plate and the 1 x 2.020 m Ridge Beam...
  • Page 14 ROOF ASSEMBLY CONT... IMPORTANT Use 50mm Clouts only on ribs covered by flashings, shown in fig.2. Predrill holes using a 3.5mm drill bit. Use Roofing Screws on all other ribs and pans. STEP 3: Ensuring screws are not overtightened as this can dam- •...
  • Page 15 Secure your shed using Treated Timber Pegs or a Bolt Down Kit TIMBER PEGS—WOODEN FLOOR • The optional Duratuf Timber Peg Down Kit includes six H5 treated timber pegs that can be hammered into the ground and then attached to the Base Plate with stainless steel screws.

  • Page 16: Year Warranty

    Unauthorized modification of the structure, including painting of the cladding. WARRANTY REGISTRATION Please visit www.duratuf.co.nz/warranty to validate the Warranty on your shed. Click on the Warranty Registration Link and complete all details. If you are unable to access the computer, please phone us on 0800 438 274 and one of the customer services team will help you to activate the warranty on your garden shed.
