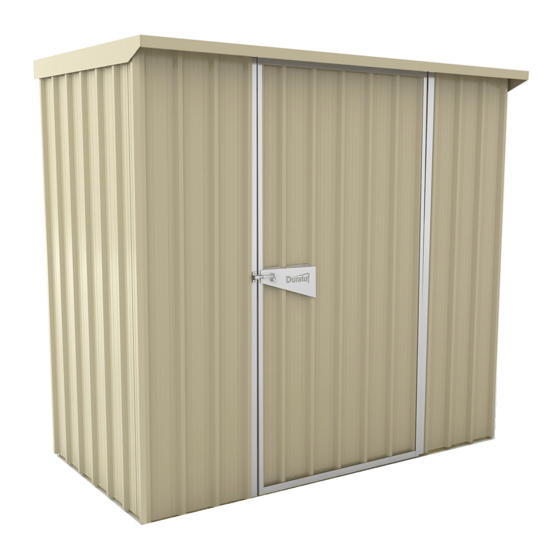

Duratuf Garrison PL63 Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Duratuf Manuals
  4. Outdoor Storage
  5. Garrison PL63
  6. Assembly instructions manual

Duratuf Garrison PL63 Assembly Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ASSEMBLY INSTRUCTIONS
PL63
BASE SIZE: 2.020m x 1.020m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Garrison PL63 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Duratuf Garrison PL63

Summary of Contents for Duratuf Garrison PL63

  • Page 1 ASSEMBLY INSTRUCTIONS PL63 BASE SIZE: 2.020m x 1.020m...

  • Page 3: Before You Start

    NAIL PUNCH TAPE MEASURE HEX DRIVE WARRANTY REQUIREMENTS: The following maintenance process needs to be adhered to, to qualify for the steel warranty of your Duratuf Garrison shed. • Wash all surfaces annually using a hose and soft nylon brush.
  • Page 4 PL63 PARTS LIST PACK 1 CLADDING + FLASHING + HARDWARE DESCRIPTION DIAGRAM CHECKED Front Wall - 1.980m Back Wall - 1.920m Side Wall Angle- 1.965m Side Wall Angle- 1.935m Roof - 1.220m Door Sheet Narrow - 1.940m Door Sides - 1.940m Door Jamb - 1.980m Door Brace - 1.200m Barge - 1.220m...
  • Page 5 PL63 PARTS LIST CHECK LIST INCLUDED IN PACK 2 TIMBER PACK DESCRIPTION DIAGRAM Front/Back Bottom Plates - H4 (Green) 2.020 m Front/Back Top Plate - H1 (Red) 2.020 m Side Wall Bottom Plates - H4 (Green) 1.020 m Side Wall Top Plates - H1 (Red) 1.022m Spouting - 2.055m...

  • Page 6: Parts Location

    PARTS LOCATION Roof Sheets Barge Flashing Spouting Back Wall Sheets Top Plate Side Top Plate Front Top Plate Back Door Brace Door Side Flashing Door Sheets Door Jambs Padbolt Support Bottom Plate Front Door Top/Bottom Flashing Front Wall Sheet Side Wall Sheets Bottom Plate Side QUICK OVERVIEW ASSEMBLE BACK...
  • Page 7 FOUNDATION No doubt by now you will have decided what sort of base you are putting down. Please read the section that applies to your situation. If you choose to pour a concrete base you will need to decide whether you wish to raise the base plate of your shed. This allows the cladding to protrude below the surface of the concrete and ensures a water tight pad.
  • Page 8 ASSEMBLE DOOR SELECT: 2 x 1.940 m Door Sheets (Narrow) 2 x 0.945 m Door Top/Bottom Flashings 2 x 1.940 m Door Side Flashings 3 x Hinges 1 x Padbolt Support Flashing 2 x 1.200 m Door Brace Flashings 59 x Rivets fig.1 STEP 1: •...
  • Page 9 ASSEMBLE SIDE PANELS SELECT: IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER BASE PLATE –READ THE FOLLOWING; 2 x 1.935 m Side Wall Sheets (Angled) 2 x 1.965 m Side Wall Sheets (Angled) For sheds with Raised Base Plate option only (see page 6), deduct 2 x 1.022 m Top Plates (Red) 30mm from measurement shown between Top and Bottom Plates on 2 x 1.020 m Bottom Plates (Green)
  • Page 10 ASSEMBLE BACK PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 4 x 1.920 m Wall Sheets For sheds with Raised Base Plate option only (see page 6), deduct 1 x 2.020 m Top Plate (Red) 30mm from measurement shown between Top and Bottom Plates on 1 x 2.020 m Bottom Plate (Green) all wall panels, so cladding protrudes 20mm below bottom plate...
  • Page 11 ASSEMBLE FRONT PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 2 x 1.980 Wall Sheets For sheds with Raised Base Plate option only (see page 6), deduct 1 x 2.020 Top Plate (Red) 30mm from measurement shown between Top and Bottom Plates on 1 x 2.020 Bottom Plate (Green) all wall panels, so cladding protrudes 20mm below bottom plate 2 x 1.980 Door Jamb Flashings...

  • Page 12: Wall Panel Assembly

    WALL PANEL ASSEMBLY SELECT: 4 x Pre-made Wall Panels SIDE 16 x 40mm Screws OVERLAPS BACK 16 x Rivets TOP PLATE STEP 1: BACK WALL • Stand the Back Panel and the Side Panel BOTTOM PLATE up using someone to support the panels while they are screwed together.

  • Page 13: Roof Assembly

    ROOF ASSEMBLY IMPORTANT SELECT: Use 50mm Clouts only on outside ribs covered by Barge flashings. Predrill holes using a 3.5mm drill bit. Use Roofing Screws on all other ribs. 4 x 1.220 m Roof Sheets 1 x 2.055 m Spouting IMPORTANT—FOR SHEDS WITH OPTIONAL CLEAR ROOF PANEL 2 x 1.220 m Barges Assemble as below, making sure that the Clear Roof Sheets overlap the stand-...
  • Page 14 Secure your shed using Treated Timber Pegs or a Bolt Down Kit TIMBER PEGS—WOODEN FLOOR • The optional Duratuf Timber Peg Down Kit includes six H5 treated timber pegs that can be hammered into the ground and then attached to the Base Plate with stainless steel screws.

  • Page 16: Year Warranty

    20 YEAR WARRANTY Riverlea Group Ltd warrant that the cladding used in the manufacture of the Garrison shed will not rust within 20 years from the date of purchase. Any liability for product failure that may arise will be limited to repair or replacement of the defective product and will only apply for the benefit of the original purchaser.
