Summary of Contents for aquarius direct AD300

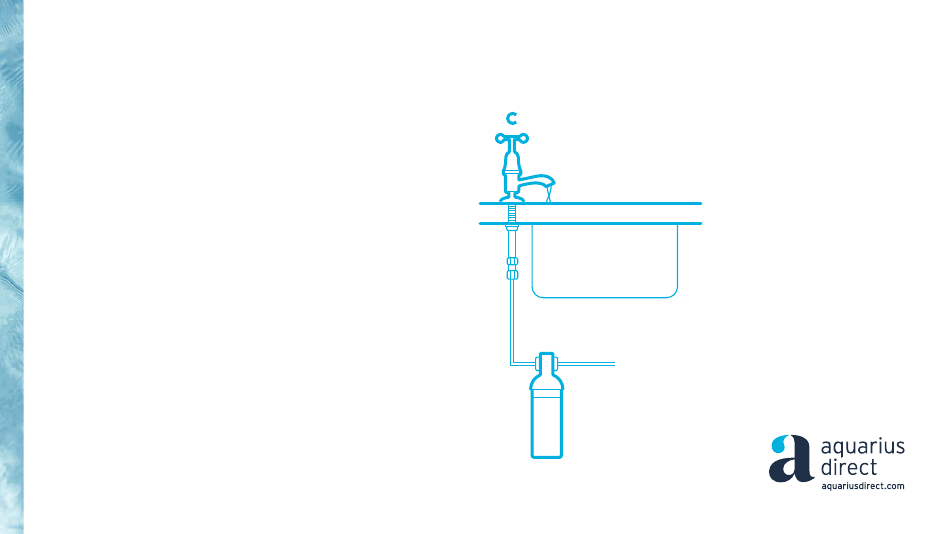

- Page 1 AD200 & AD300 UNDER-COUNTER FILTRATION SYSTEM INSTALLATION GUIDE Sink Mains supply...
- Page 2 INTRODUCTION Thank you for purchasing the The Aquarius Direct AD200/AD300 filter Caution Aquarius Direct AD200/AD300 filter. comprises of multiple items which are The water supply pressure must be listed in section titled package contents. This product has been designed and between minimum 1.5 Bar (22 psi) to...
- Page 3 2. Always make sure that the area that you intend to fit the Aquarius Direct filter system is clean, clear and free from clutter. 3. Always wear single use gloves and...
- Page 4 PACKAGE CONTENTS Aquarius Direct filter technical data Inside the box you will AD200 find the following items: Dimensions: w 92 x d 102 x h 270mm AD300 Dimensions: w 92 x d 102 x h 390mm Minimum water pressure: 1.5 Bar (22psi) Maximum water pressure: 5.5 Bar (80psi)
- Page 5 BEFORE YOU BEGIN Check the mains water pressure. The pressure must not be below 1.5 Bar (22 psi) or above 5.5 Bar (80 psi), test measured during a high demand period – (morning or lunch time). The optimum pressure is 3 Bar (44psi). The unit must be installed in an area that is not susceptible to freezing.
- Page 6 11. Then attach the other 30cm piece 2. Find a suitable location in the cupboard of blue tube from the 3/8 x 3/8 inch to mount the AD200/AD300 filter stem elbow on the filter labelled Filter head (this must be at least 310mm ‘OUT’...
- Page 7 Quality suppliers of Point-of-Use water products If you require any help with this product or more information on our range of P.O.U products, please contact us by using the details below: info@aquariusdirect.com aquariusdirect.com...
